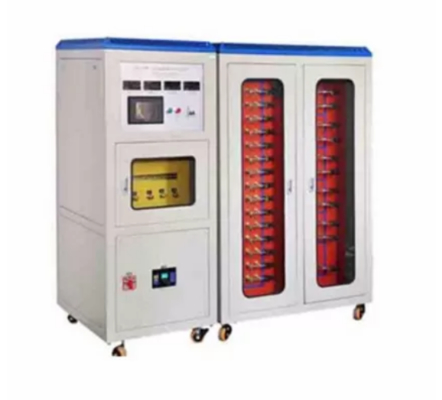

Automated AC Contactor Life Test System | 380V Flammability & Durability Testing | IEC/GB Compliance
| Place of Origin | China |
|---|---|
| Brand Name | Neide |
| Certification | CE |
| Model Number | ND-989 |
| Document | Neide catalogue.pdf |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Wooden Box(standard export packaging) |
| Delivery Time | 7-22 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 100sets/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Neide | Customized | Welcome |
|---|---|---|---|
| Factory | Yes | Customer | More Than 500+ |
| After-sales Service | Yes | Transportation | By Sea |
| Reply For Probme | Within 24 Hours | Power Supply | AC 380V 50Hz |
Product Description
Automated AC Contactor Life Test System | 380V Flammability & Durability Testing | IEC/GB Compliance
Product Attributes
Brand: Neide
Customized: Welcome
Factory: Yes
Customer: More than 500+
After-sales service: Yes
Transportation: By Sea
Reply for problem: Within 24 hours
Power Supply: AC 380V 50Hz
Application
Designed for long-term life simulation testing of automotive aftermarket AC contactor contacts, validating durability under high-frequency switching conditions.
Technical Specifications
| Category | Details |
|---|---|
| Test Type | Electrical life testing for single-phase/three-phase AC contactor contacts |
| Parallel Stations | 5 independent stations; sequential switching (0.5-1s adjustable delay) |
| Failure Response | Automatic load & coil cutoff for faulty samples; uninterrupted testing |
| Switching Control | - Resolution: 0.01s - On/Off time: 0-100s (continuously adjustable) |
| Cycle Counting | - Presets: 0-999,999 cycles - Independent counters per station |
| Load Characteristics | - Current: 100-200A (220V, adjustable) - Power Factor: 0.3-1.0 (adjustable) |
| Coil Excitation | AC 24V/48V/120V/220V (4-range selectable) |
| Ambient Tolerance | Operating Temp: 0°C to 40°C |
Safety Protections
- Triple Safety Protection
- Over-temperature auto cutoff
- Overcurrent protection (integrated in load bank)
- Power-loss data retention
- Electrical Compliance - Insulation meets IEC 60947-4/GB 14048.4 standards
