600KN Hydraulic Universal Testing Machine For Wire Tensile & Compression Tests
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 500N, 1KN, 2KN (optional) | Measuring Accuracy | Tolerance ±1% / Tolerance ±0.5% |
|---|---|---|---|
| Accurate Grade | 1 Grade /0.5 Grade | Effective Measuring Range | 0.2% To 100% |
| Effective Tensile Space | 400, 500, 600mm Or Requirement | Testing Speed | From 0.001 To 500mm/min |
| Accruacy Of Displacement Measurement | ±0.5% / Tolerance: ±0.2% | Tester Resolution | Max Load 1/200000, And Constant Resolution |
| Brand | Neide | Customized | Welcome |
| Factory | Yes | Customer | More Than 500+ |
| Material | SUS304 Or Customized | After-sales Service | Yes |
| Transportation | By Sea | Reply For Probme | Within 24 Hours |
| Highlight | 600KN Hydraulic Universal Testing Machine,600KN Wire Tensile Testing Machine,GB/T 228-2010 Wire Tensile Testing Machine |
||
Product Description

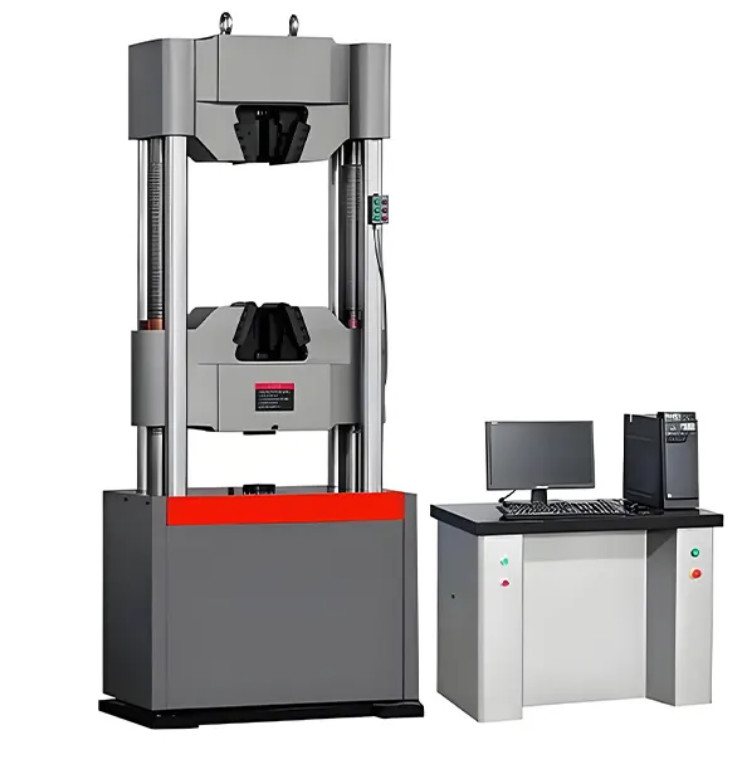

600KN Hydraulic Universal Testing Machine For Wire Tensile & Compression Tests
Product Description:
The Hydraulic Universal Testing Machine is a highly versatile tool designed to conduct a wide range of material tests, including tension, compression, bending, shearing, and stripping, on both metallic and non-metallic composites. It strictly adheres to the GB/T 228-2010 standard for room-temperature tensile testing of materials, ensuring precise and compliant results.
This machine automates the entire testing process through computer control, offering real-time data display and the ability to generate and print detailed test curves and reports. Its applications are extensive, spanning industries such as metallurgy, construction, aerospace, and academia.

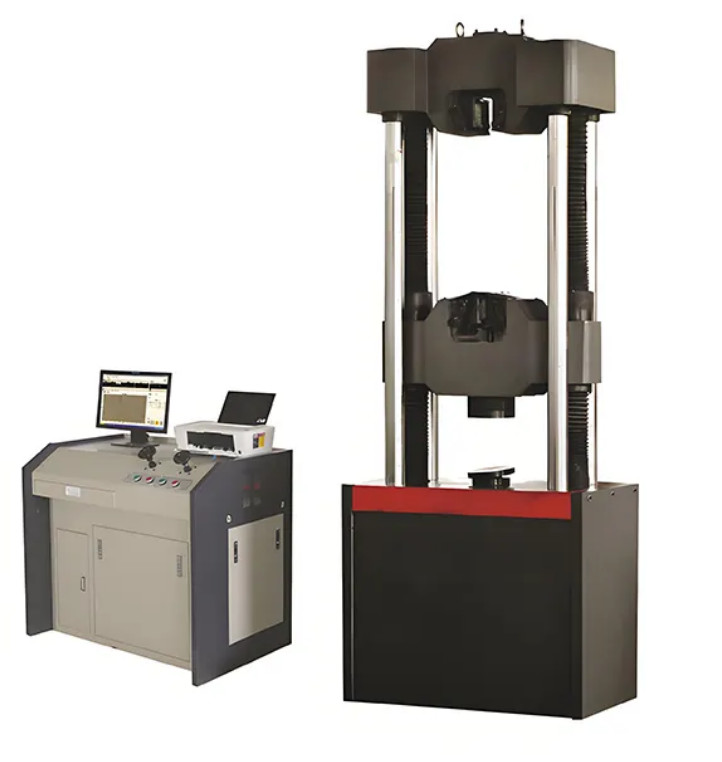

The Electro-Hydraulic Servo Universal Testing Machine integrates advanced features such as automatic control, measurement, data acquisition, and result processing. It operates using a precision oil pump and a PC servo controller, enabling multi-channel closed-loop control for a seamless testing experience. Known for its professional design, reliability, and ease of upgrade, this machine evolves with advancements in testing technology and standards, ensuring it remains at the forefront of material testing solutions.
Major Specification:
|
Control cabinet size
|
1200mm*620mm*850mm
|
|
Main engine size
|
730mm*590mm*2100mm
|
|
Maximum test force
|
300/600/1000/2000KN
|
|
Relative error of the test force indication value
|
≤ value +1%
|
|
Measuring range of test force
|
≤ value + 2%~100% of the measuring range of the test force
|
|
Control range of isodynamic stress (N/mm2·S-1)
|
2~60
|
|
Constant velocity strain control range
|
0.00025/ s ~0.0025/ s
|
|
Constant velocity strain control range (mm/min)
|
0.5~50
|
|
Tightening method
|
Hydraulic clamping
|
|
Range of clamping diameters for circular specimens
|
Φ6~Φ40
|
|
Thickness range of plate specimen
|
0~30
|
|
Clamping width of the plate specimen
|
80
|
|
Maximum stretching experiment space
|
580
|
|
Maximum compressed test space
|
500
|
|
Click power
|
2.3
|
|
Main engine mass
|
2500
|
|
Clear spacing of columns
|
450
|
|
Upper and lower pressure plate dimensions
|
Φ150
|
|
Bend bar spacing
|
400
|
|
Bend bar width
|
140
|
|
Allowable camber
|
100
|
|
Maximum piston stroke mm
|
200
|
|
Maximum piston stroke mm/min
|
About 80
|
|
Test space adjustment speed mm/min
|
About 150
|
Hot-Sell Products:
Company Information:
Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.
Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.
At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.
This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.
