Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen

Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-521
Document Neide catalogue.pdf
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden Box(standard export packaging)
Delivery Time 7-22 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Neide Customized Welcome
Factory Yes Customer More Than 500+
Material SUS304 Or Customized After-sales Service Yes
Transportation By Sea Reply For Probme Within 24 Hours
Highlight

Touch Screen Wire Bending Testing Machine

,

Touch Screen Cable Flexing Tester

,

Custom Cable Flex Test Machine

Leave a Message
Product Description
Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen
Product Attributes
Brand Neide
Customized Welcome
Factory Yes
Customer More than 500+
Material SUS304 or customized
After-sales service Yes
Transportation By Sea
Reply for problem Within 24 hours
Product Description
The Wire Cable Bending Testing Machine (also known as Cable Flexing Tester) is designed to conduct precise bending tests on various cable types including multi-wire cables, communication cables, and earphone cables. The machine securely clamps the sample cable and flexes it at precisely defined angles and speeds, performing tens of thousands of cycles to thoroughly assess material stability and durability under repetitive stress conditions.
Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen 0
Technical Specifications
Controller 7-inch color touch screen, programmable controller
Drive mode AC servo motor + planetary gearbox drive
Test station 6 stations are controlled respectively
Test Angle ± (30°~180°) can be set
Angular resolution
Test speed 10~60 times/min arbitrary setting
Force weights Each set of weights 100g~1500g 1 group, a total of 6 sets
Bending radius Standard with one specification, multi price separately, D=12.7mm, 25.4mm, 50.8mm, adjustable spacing on both sides
Functional testing Can detect core break alarm, automatically stop, with sound and light alarm indication
Power supply AC220V, 50HZ, 10A
Overall size About W1350mm×D600mm×H1200mm
Weight About 120kg
Product Gallery

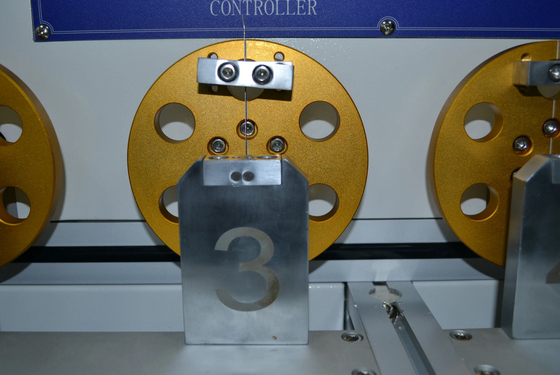

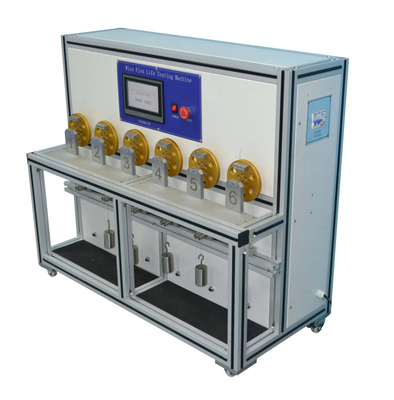

Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen 1 Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen 2 Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen 3 Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen 4 Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen 5 Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen 6 Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen 7 Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen 8 Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen 9 Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen 10 Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen 11 Wire Bending Testing Machine Cable Flexing Tester With 7 Inch Color Touch Screen 12
About Neide Technology
Dongguan Neide Technology Co. Ltd, located in Guangdong province with convenient transportation access, specializes in manufacturing top-quality testing equipment. Our product range includes environmental test chambers and mechanical test machines such as temperature/humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines.
Our products meet international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC. We serve diverse sectors including R&D institutions, quality inspection establishments, universities, and electronics/communications industries.
