2KN Load Cell Furniture Testing Equipment Office Chair Rotation Fatigue Life Tester Precision

  • 2KN Load Cell Furniture Testing Equipment Office Chair Rotation Fatigue Life Tester Precision
  • 2KN Load Cell Furniture Testing Equipment Office Chair Rotation Fatigue Life Tester Precision
  • 2KN Load Cell Furniture Testing Equipment Office Chair Rotation Fatigue Life Tester Precision
  • 2KN Load Cell Furniture Testing Equipment Office Chair Rotation Fatigue Life Tester Precision
  • 2KN Load Cell Furniture Testing Equipment Office Chair Rotation Fatigue Life Tester Precision
Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-794
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden Box(standard export packaging)
Delivery Time 7-22 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Force Value 0.2~1.8kN (allowable Error ±5%) Test Speed 10±5 R/min, BIFMA: 5-15 R/min, QB/T: 5-15 R/min
Test Angle 0~360°(Can Be Adjusted) Dimension 1400mmX1100mmX2150mm (L*W*H)
Effective Test Height 300mm~850mm Capacity 2KN Load Cell
Brand Neide Customized Welcome
Factory Yes Customer More Than 500+
Material SUS304 Or Customized After-sales Service Yes
Transportation By Sea Reply For Probme Within 24 Hours
Highlight

2KN Load Cell Furniture Testing Equipment

,

Precision Office Chair Testing Equipment

,

Office Chair Rotation Fatigue Life Tester
Leave a Message
Product Description

 Furniture Testing Instrument Office Chair Rotation Fatigue Life Tester



Product Description:

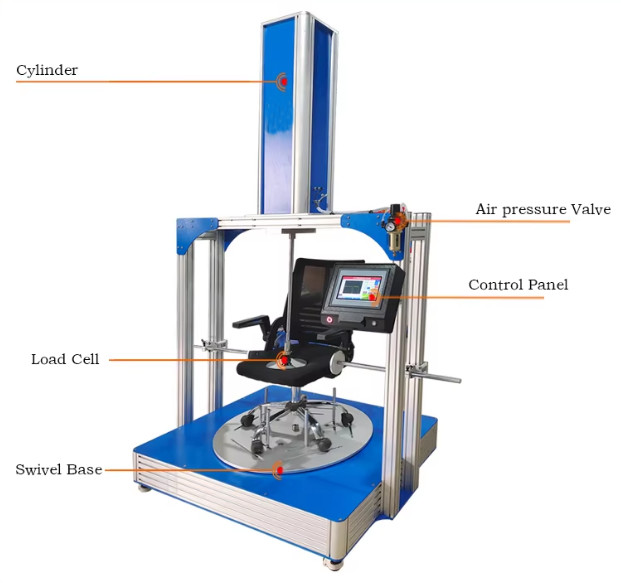

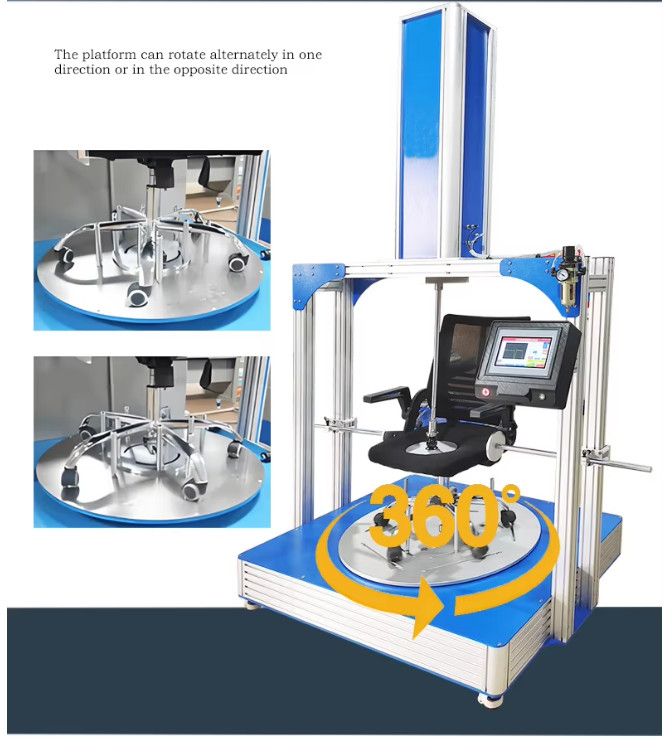

The Universal Swivel Chair Test System is specifically engineered to conduct comprehensive tests on chairs with rotating seats. Driven by a high-performance motor, the system precisely simulates the rotational movement of the chair's platform. It incorporates a frequency converter to manage variable speeds and acceleration, enabling a wide range of motion testing scenarios.

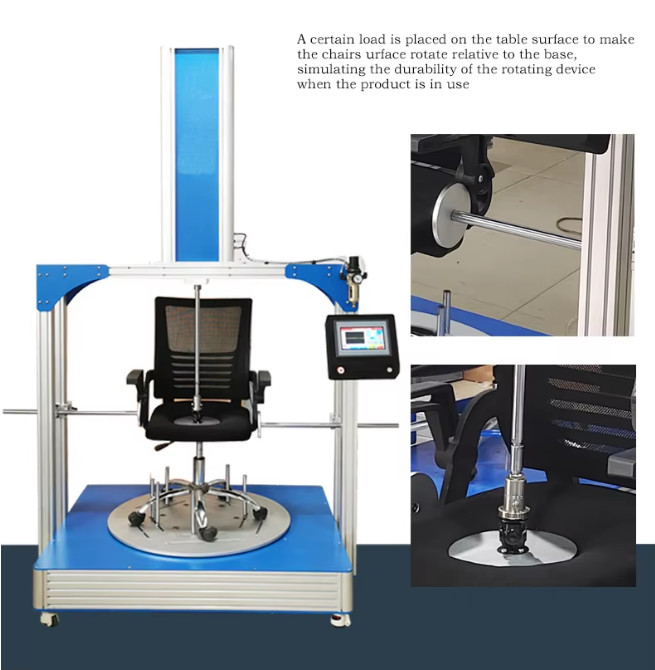

The system is equipped with a precision pressure regulation mechanism that ensures consistent and reliable force output from the cylinder. A universal joint at the cylinder's output end allows for adaptability to the varying angles of chair surfaces, enhancing the accuracy and reliability of the test results.
The clamping mechanism is designed for simplicity and efficiency, featuring an automatic alignment function that eliminates the need for vertical force on the chair's legs. This design mimics natural usage conditions, providing more realistic test results. Additionally, the output force height of the cylinder is adjustable, accommodating chairs of different heights and ensuring a versatile testing solution suitable for a variety of chair designs.
This advanced testing system is ideal for evaluating the durability, stability, and overall performance of swivel chairs, making it an essential tool for furniture manufacturers and quality control laboratories.

2KN Load Cell Furniture Testing Equipment Office Chair Rotation Fatigue Life Tester Precision 0

2KN Load Cell Furniture Testing Equipment Office Chair Rotation Fatigue Life Tester Precision 1

Major Specification:



Capacity
2KN Load Cell
Test Force Value
0.2~1.8KN (allowable error ±5%)
BIFMAX5.1-2017: Seat Load 1.24kN, QB/T: Seat Lbad 1.02kN
BIFMAX5.1-2017: Seat Load 1.13kN, EN 1335-2: Sat Load 950N
Test Speed
10±5 r/min, BIFMA: 5-15 r/min, QB/T: 5-15 r/min
Test Mode
One side 60,000 cycles;
Alternating clockwise and counterclockwise: 60,000 cycles (120000 cycles in total)
Test Angle
0~360°(Can be adjusted)
Dimension
1400mmX1100mmX2150mm (L*W*H)
Effective test Height
300mm~850mm
Sample Size
Base diameter ≤750
mm

Company Information:



Dongguan Neide Technology Co. Ltd  located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.



Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.



At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.



This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.



FAQ:

1.How does the tester simulate real-world usage conditions?

The tester uses a motor-driven system to simulate the rotational movement of the chair's platform. It incorporates a frequency converter to manage variable speeds and acceleration, allowing for a wide range of motion testing scenarios. Additionally, the clamping mechanism is designed to mimic natural usage conditions by eliminating the need for vertical force on the chair's legs and providing an adjustable output force height to accommodate different chair heights.

2. What types of office chairs can be tested with this instrument?

This tester is versatile and can accommodate a wide range of office chairs, including those with different seat heights, sizes, and designs. The adjustable clamping mechanism and universal joint at the cylinder's output end ensure adaptability to various chair surfaces and angles, making it suitable for both standard and ergonomic office chairs.

3. What kind of after-sales support is provided?

We offer comprehensive after-sales support, including technical assistance, spare parts supply, and software updates. Our customer service team is available to address any issues or questions you may have. We also provide on-site service and training to ensure you get the most out of your tester.
