Dual Zone Thermal Cycle Shock Test Chamber For Laboratory Testing And Material Analysis

Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-150
Document Neide catalogue.pdf
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden Box(standard export packaging)
Delivery Time 7-22 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 380V, 50Hz Single Package Size 1500X2250X2300mm
Brand Neide Customized Welcome
Factory Yes Customer More Than 500+
Material SUS304 Or Customized After-sales Service Yes
Transportation By Sea Reply For Probme Within 24 Hours
Highlight

Dual Zone Thermal Cycle Test Chamber

,

Laboratory Thermal Cycle Shock Test Chamber

Leave a Message
Product Description

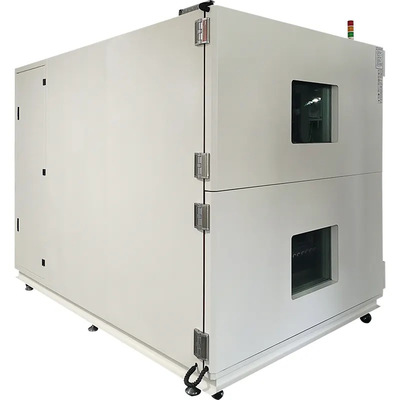

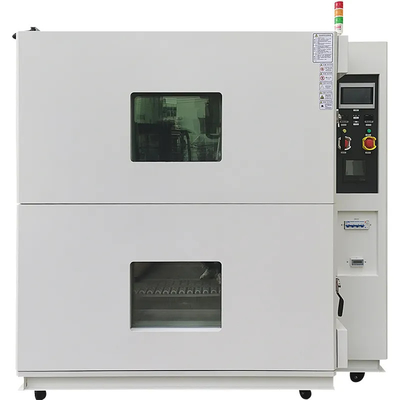

Dual-Zone Thermal Cycle Shock Test Chamber for Advanced Laboratory Testing and Material Analysis



Introduction:

The Dual-Zone Thermal Cycle Shock Test Chamber is a sophisticated environmental testing solution designed to evaluate the durability and reliability of materials and products under rapid and extreme temperature changes. This chamber is essential for industries such as automotive, aerospace, electronics, and telecommunications, where products must withstand harsh and fluctuating environmental conditions.

Why Choose This Chamber?

The Dual-Zone Thermal Cycle Shock Test Chamber is a reliable and efficient solution for advanced laboratory testing and material analysis. Its dual-zone design, rapid thermal cycling capabilities, and robust construction make it an indispensable tool for industries that demand the highest standards of quality and performance. Whether you are testing electronic components, automotive parts, or new materials, this chamber delivers accurate and consistent results, helping you ensure the reliability and durability of your products.



Major Specification:



Model

ND-150A
ND-150B
ND-150C
Performance
Temperature range
-55℃ to +180℃
-70℃ to +180℃
-75℃ to +180℃
Thermal shock range
-40℃ to +150℃
Hot: +60℃ to +150℃
Cold: -40℃ to -10℃
-55℃ to +150℃
Hot: +60℃ to +150℃
Cold: -55℃ to -10℃
-65℃ to +150℃
Hot: +60℃ to +150℃
Cold: -65℃ to -10℃
Temperature fluctuation
≤±0.5℃
Temperature deviation
≤±2.0℃
Temperature uniformity
±2.0℃
Recovery time
≤5min.
Transfer time
≤10sec.
Temperature overshoot
≤±2.0℃
Hot zone
+60℃ to +180℃
Preheating time
+60℃ to +180℃ in 30min.
Cold zone
-55℃ to -10℃
-70℃ to -10℃
-75℃ to -10℃
Precooling time
+20℃ to -55℃ in 45min.
+20℃ to -70℃ in 45min.
+20℃ to -75℃ in 45min.
Test room
-40℃ to +150℃
-55℃ to +150℃
-65℃ to +150℃
Exposure time
Test room recovery time
High temperature exposure for 30min.
Low temperature exposure for 30min.
within 5min.
Workspace volume
480L
Workspace dimensions
(WxDxH)mm
600*500*600
Exterior dimensions
(WxDxH)mm
1480*2065*2515
Material
Interior
Matte SUS #304 Stainless Steel Plates
Exterior
Powder Coated Carbon Steel Plates
Seal
Imported Silicone Seal
Insulation
Hard Polyurethane Foam Insulation and Glass Wool
System
Heating
Nichrome Wire Electric Heater
Refrigeration
German GEA Cascade Semi-Hermetic Compressors or Other Brands
Air-cooled or Water-cooled Cooling Mode for Option
Zero Ozone Depletion Potential (ODP) Refrigerant - R404A / R23
Allowable ambient conditions
Temperature: +5℃ to +35℃;
Relative humidity: ≤85%RH (No condensation);
Air pressure: 86kPa to 106kPa
Electrical supply
AC 380 (1±10%)V (50±0.5)Hz 3 Phase 4 Wire plus Earth Wire



Dual Zone Thermal Cycle Shock Test Chamber For Laboratory Testing And Material Analysis 0











Company Information:



Dongguan Neide Technology Co. Ltd  located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.



Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.



At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.



This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.



FAQ:



1.  What is the maximum temperature transition rate, and how is it achieved?

The chamber can achieve temperature transition rates of up to 15°C/min or higher, depending on the model. This is accomplished through advanced refrigeration and heating systems, optimized airflow design, and the dual-zone setup, which allows samples to move quickly between zones.



2. Can the chamber handle large or irregularly shaped samples?

Yes, the chamber is available in various sizes, and the internal layout can be customized with adjustable shelving or specialized fixtures to accommodate large or irregularly shaped samples. However, ensure the sample size and weight do not exceed the chamber's capacity to avoid affecting performance.



3. How does the chamber handle samples that emit gases or fumes during testing?

For samples that emit gases or fumes, the chamber can be equipped with ventilation systems or gas exhaust ports to safely remove contaminants. Ensure you specify this requirement when ordering to avoid damage to the chamber or safety hazards.
