Laboratory Environmental Rain Water Spray Tester For Weather Resistance Evaluation
| Place of Origin | China |
|---|---|
| Brand Name | Neide |
| Certification | CE |
| Model Number | ND-500 |
| Document | Neide catalogue.pdf |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Wooden Box(standard export packaging) |
| Delivery Time | 7-22 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 100sets/month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Flow Rate Of The Weter | 0.07L/Min +5% | Speed Of Spray Swing Pipe | IP3 15 /Min;IP4 10/Min |
|---|---|---|---|
| IP1/ 2 Dripping Hole | 0.4mm | Speed Of Turntable Rpm | 1~10 Adjustable |
| Test Standard | JIS, ISO, IEC60529, DIN40050, GB2423, GB4208 | Drop Test | 0.1~1.5°C/Min |
| Brand | Neide | Customized | Welcome |
| Factory | Yes | Customer | More Than 500+ |
| Material | SUS304 Or Customized | After-sales Service | Yes |
| Transportation | By Sea | Reply For Probme | Within 24 Hours |
| Highlight | Environmental Rain Water Spray Tester,Weather Resistance Evaluation Tester |
||
Product Description

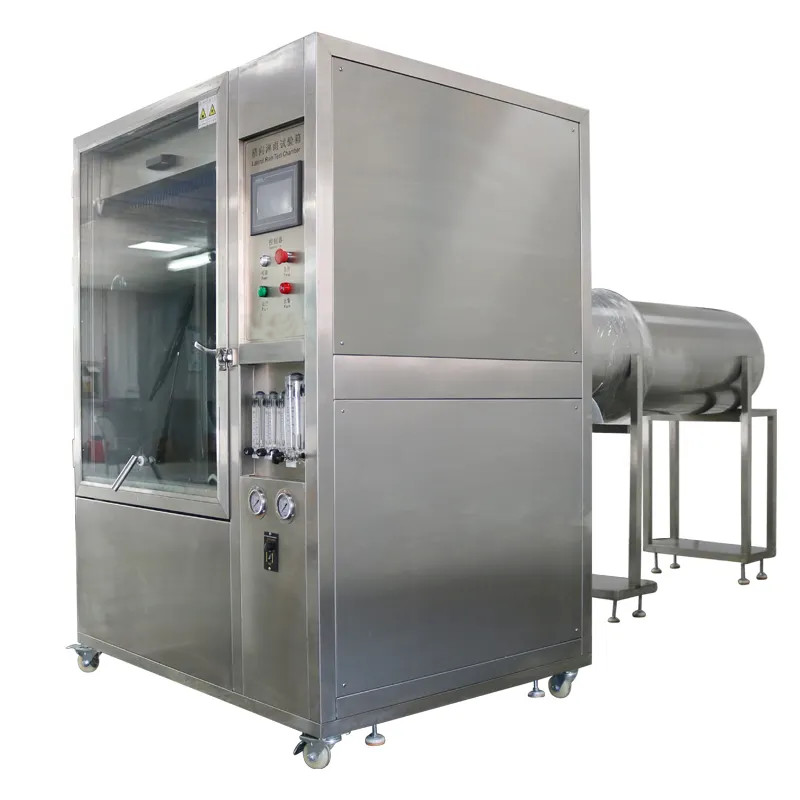

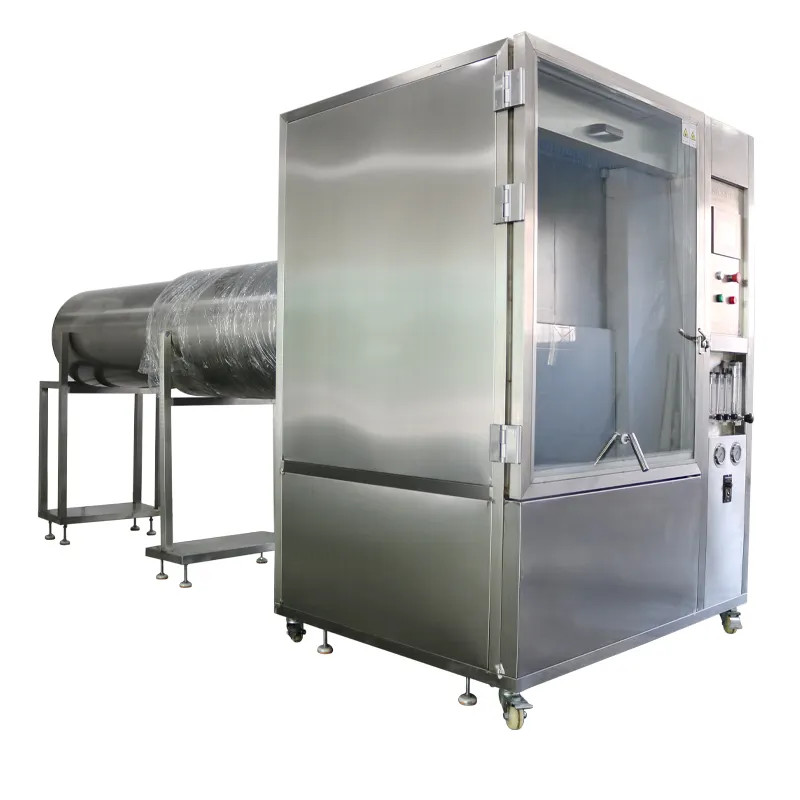

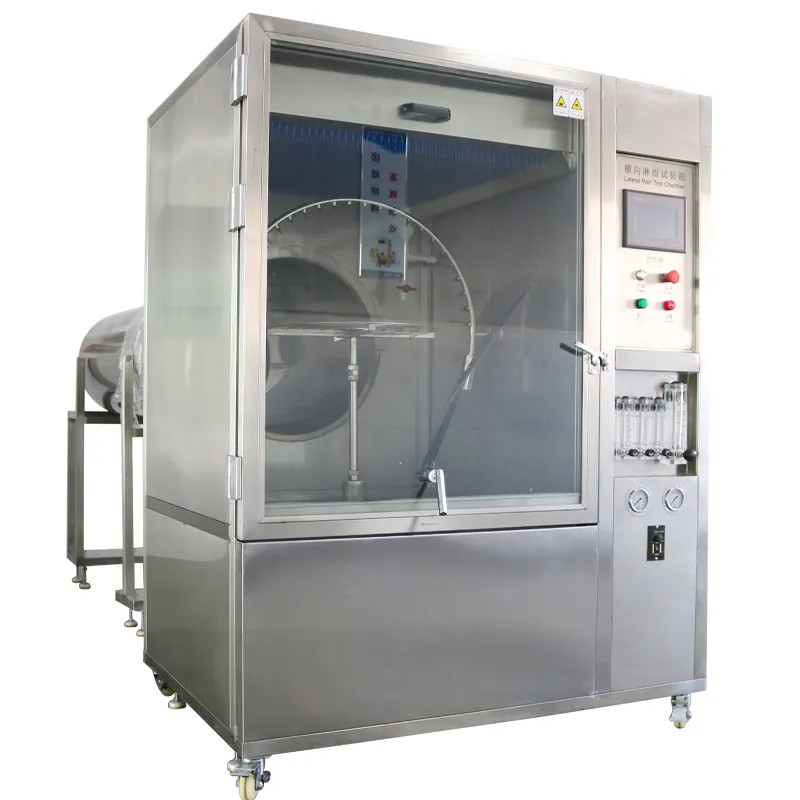

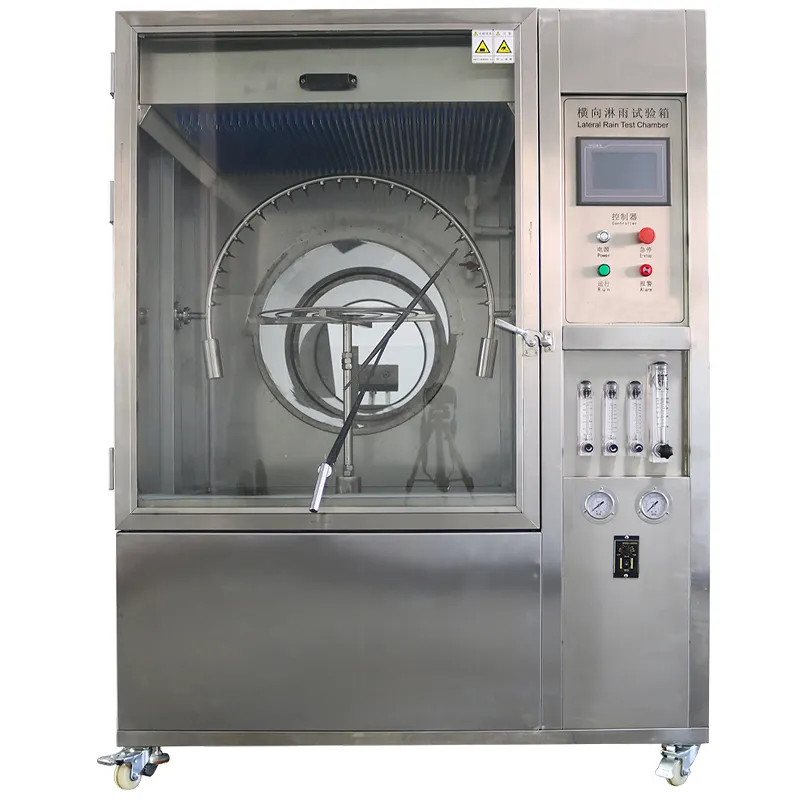

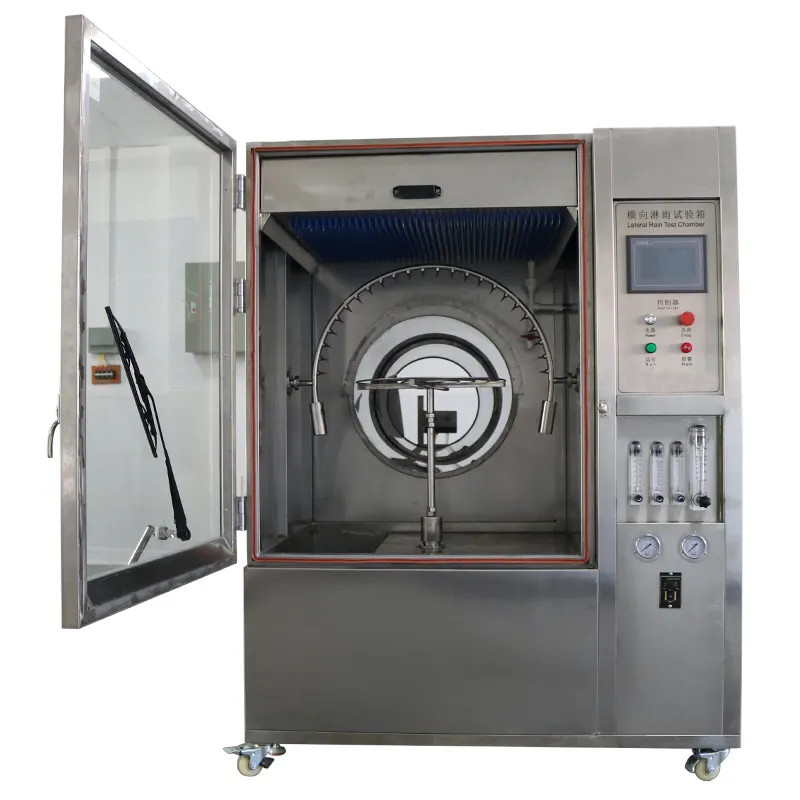

Laboratory Environmental Water Resistance Rain Water Spray Tester For Weather Resistance Evaluation
Product Description:
The Rain Water Spray Tester is a specialized testing equipment designed to evaluate the weather resistance and water resistance of products and materials. This tester simulates natural rainfall and water spray conditions, providing a controlled environment to assess how products withstand exposure to water. It is an essential tool for industries such as automotive, electronics, construction, and outdoor equipment manufacturing, where water resistance and durability are critical for product performance and reliability.
Key Features:
Simulates Real-World Rainfall Conditions:
- Replicates natural rainfall and water spray with adjustable intensity and duration.
- Ensures accurate evaluation of product performance under wet conditions.
Compliance with International Standards:
Meets industry standards such as IEC 60529 (IP Code), ISO 20653, and DIN 40050-9 for water resistance testing.
Major Specification:
|
Model |
ND-225 |
ND-500 |
ND1000 |
ND-2240 |
|
|
Interior Size W*D*H (mm) |
600*600*600 |
800*800*800 |
1000*1000*1000 |
800*3500*800 |
|
|
Exterior Size W*D*H (mm) |
900*1080*1650 |
1100*1480*1750 |
1200*1500*1950 |
1080*3600*1750 |
|
|
Swing Pipe |
200 |
300 |
400 |
600 |
|
|
Turntable Diameter |
300 |
400 |
500 |
500 |
|
|
Power/KW |
220V/3KW |
220V/3KW |
220V/3KW |
220V/3KW |
|
|
Turntable Load |
20KG |
||||
|
Technical Standard |
Test Bench Speed |
1~3r/min (adjustable) |
|||
|
Size of Spray Aperture (mm) |
0.4mm |
||||
|
Space of Spray Aperture |
50mm |
||||
|
Flow of Spray Aperture |
0.07L/min +5% |
||||
|
Water Spray Pressure |
80~150Kpa |
||||
|
Swing Angle Range of Spray |
120°,320°(approximately) |
||||
|
Nozzle Angle |
120°(IPX3),180°(IPX3) |
||||
|
Swing Angle |
120°(IPX3),180°(IPX3) |
||||
|
Swing Amplitude |
Max ±180°(approximately) |
||||
|
Swing Speed of Spray Pipe |
IPX3 15/min; IPX4 5/min |
||||
|
Test Time |
1S~9999H59M59S (adjustable) |
||||
|
Interior Material |
Stainless steel plate SUS304 |
||||
|
Exterior Material |
Stainless steel plate or baked steel plate SUS 304 |
||||
|
Control System |
Siemens touch-screen controll system |
||||
|
Envrionmental Requirement |
Temperature: 5℃~40℃Relative humidity: ≤85%RH |
||||
|
Safety Protection |
Power overload; short circuit protection; earthling protection; water protection and alarm-ring tip |
||||
Company Information:
Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.
Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.
At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.
This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.
FAQ:
1. How can I adjust the rainfall intensity and pattern?
The tester is equipped with an advanced control system. You can easily adjust the rainfall intensity through the control panel. There are pre - set modes for different levels of rainfall, from a light drizzle - like intensity to a heavy downpour. In terms of the pattern, we have multiple nozzles that can be configured in different ways. For instance, you can set them to create a uniform spray across the sample area or a more focused spray on specific parts of the sample, depending on your testing requirements.
2.How does the tester ensure the even distribution of water during the test?
We have designed the nozzle layout and water - supply system meticulously. The nozzles are evenly spaced and angled to ensure a uniform spray pattern. Additionally, the water - supply system has a built - in flow - equalizing mechanism. This mechanism ensures that the water pressure is consistent across all nozzles, so the amount of water sprayed on each part of the sample area is the same. Before each test, we also recommend running a calibration cycle to further verify the even distribution of water.
3.What maintenance is required for this tester?
Regular maintenance is relatively straightforward. Periodically, you need to clean the nozzles to prevent clogging. We suggest using a mild cleaning solution and a soft brush for this purpose. Also, check the water - supply pipes for any signs of leakage or blockage. The control system should be updated with the latest software versions provided by us to ensure optimal functionality. We offer a detailed maintenance manual and also provide on - site maintenance training if needed.
4.Can the tester be integrated with other environmental testing equipment?
Yes, it can. Our rain water spray tester is designed with an open - interface architecture. This allows it to be integrated with other environmental testing equipment, such as temperature - humidity chambers. For example, you can conduct combined water - resistance and temperature - humidity tests. This integration can provide more comprehensive data about how your products perform in complex environmental conditions. We can provide technical support to help you complete the integration process smoothly.
