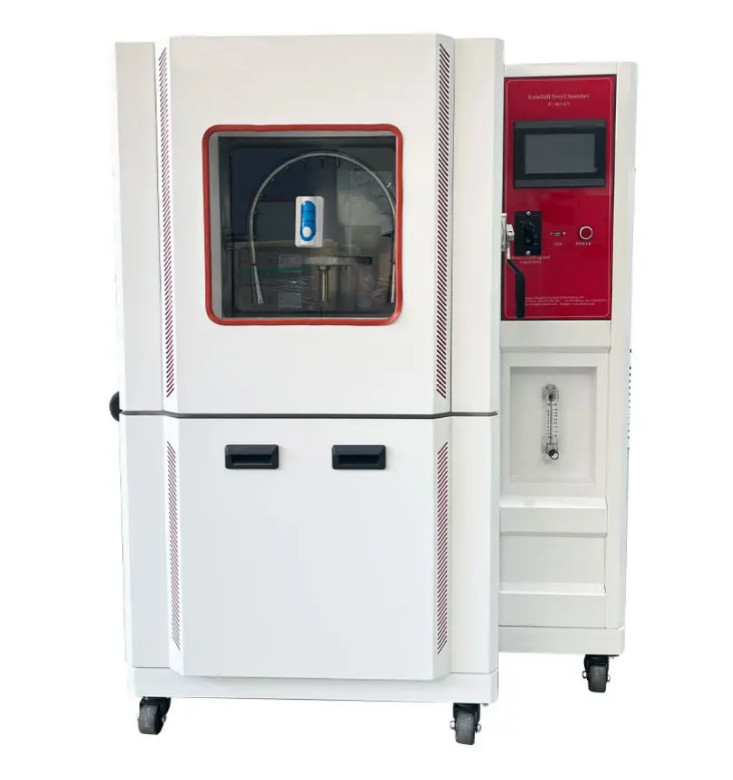

PLC Control Rain Testing Equipment Programmable Rainfall Test Chamber 380V

Place of Origin	China
Brand Name	Neide
Certification	CE
Model Number	ND-660
Document	Neide catalogue.pdf
Minimum Order Quantity	1 set
Price	Negotiable
Packaging Details	Wooden Box(standard export packaging)
Delivery Time	7-22 work days
Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability	100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Brand	Neide	Customized	Welcome
Factory	Yes	Customer	More Than 500+
Material	SUS304 Or Customized	After-sales Service	Yes
Transportation	By Sea	Reply For Probme	Within 24 Hours
Highlight	PLC Control Rain Testing Equipment , Rainfall Test Chamber 380V , Programmable Rain Testing Equipment

Leave a Message

Product Description

Rain Testing Chamber Programmable Rainfall Testing Machine

Product Description:

The primary function of this equipment is to conduct comprehensive tests on the physical and other relevant properties of a diverse range of items, including electronic and electrical products, lamps, electrical cabinets, electrical components, as well as automobiles, motorcycles, and their respective parts. These tests are carried out under simulated rain conditions, which closely mimic real - world scenarios where these products may be exposed to rainfall.

Once the testing process is completed, a detailed assessment is made to determine whether the performance of each product meets the predefined requirements. This evaluation is crucial as it provides valuable insights into the product's durability, reliability, and functionality in wet conditions.

Based on the test results, manufacturers can effectively engage in various product - related activities. For the design phase, they can identify areas that need improvement and make necessary adjustments to enhance the product's performance in rainy environments. In the improvement stage, specific modifications can be implemented to rectify any identified weaknesses. Verification can be carried out to ensure that the redesigned or improved product indeed meets the desired standards. Moreover, these test results also serve as a reliable basis for factory inspections, helping to guarantee that only high - quality products are released into the market. In essence, this equipment plays a vital role in the entire product lifecycle, from design to final inspection, ensuring that products can withstand the challenges posed by rainy conditions.

PLC Control Rain Testing Equipment Programmable Rainfall Test Chamber 380V 0

Major Specification:

No.	Description	ND-660
1	Control System	PLC
2	Machine size(mm)	According to client request inner size
3	Testing room size	216L,about 600×600×600(mm),Material :SUS304 Stainless steel
4	IPX5 spray nozzle size(mm)	6.3
5	IPX6 spray nozzle size(mm)	12.5
6	IPX5Water Injet flow(L/min)	12.5±0.625
7	IPX6 water inject flow(L/min)	100±5L/min
8	Water pressure(Mpa)	Adjust the water flow according to the regulation
9	Flow control	The flow rate is manually adjusted by using the rotor flowmeter with adjustment
10	Spraying distance	2.5*3meter(Operator control)
11	Fixing method of spray gun	Hand held
12	Water pump	Stainless steel multistage pump
13	Waterway material	Stainless steel +PPR pipe
14	Turntable diameter(mm)	¢600
15	Turntable load power supply	AC220V
16	Material	SUS304# stainless steel
17	Protective safety	Electricity leakage, water shortage, short circuit
18	Power(V)	380V
19	Power(KW)	3
20	Standard	IEC60529:1989+A1:1999,GB4208,GB7000.(IPX5,IPX6)
