Industrial Air Ventilation Climate Test Chamber For Accelerated Aging Simulation

Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-930
Document Neide catalogue.pdf
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden Box(standard export packaging)
Delivery Time 7-22 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Neide Customized Welcome
Factory Yes Customer More Than 500+
Material SUS304 Or Customized After-sales Service Yes
Transportation By Sea Reply For Probme Within 24 Hours
Highlight

Air Ventilation Climate Test Chamber

,

Accelerated Aging Simulation Test Chamber

Leave a Message
Product Description

Air Ventilation Climate Test Chamber For Accelerated Aging Simulation



Product Description:

The Air Ventilation Aging Test Chamber is a highly specialized and essential piece of equipment in the fields of material testing and product quality assessment. It is designed to conduct comprehensive heat - resistance tests on a diverse range of materials and products.

The test chamber creates a controlled environment where samples are exposed to high - temperature air under normal atmospheric pressure. The temperature can be precisely adjusted to specific values relevant to the intended application of the materials or products. The air ventilation system within the chamber ensures a uniform distribution of heat and oxygen, mimicking real - world conditions where materials are exposed to warm air circulation. During the aging process, the samples are left in the chamber for a predefined period, which can range from hours to weeks depending on the specific test requirements.



Specification:

Capacity(L)
80, 150, 225, 408, 500, 800, 1000L(optional, or customized)







Performance
Control Methods
Balanced temperature humidity control system
(BTHC) PID intelligent adjust
Temperature and Humidity Range
-70°C~150°C; 20%-98%R.H
Accuracy
±1.0°C, ±2%RH / ±0.5°C, ±2%RH
Resolution
±0.1°C, ±0.1%RH / ±1°C, ±3%RH
Heating Rate
≤3°C/min
Cooling Rate
Average 1°C/min
Internal Material
SUS#304 stainless steel
External Material
SUS#304 stainless steel or Antirust processing cold-rolled steel sheet(Spray)
Insulation Material
Superfine wool + polyurethane foam





Regulator
Cooling Mode
Mechanical binary refrigeration way
Compressor
Closed compressor
(French Tecumseh or German Copeland )
Refrigerant
R23/R404A
Condensing Way
Air-cooling and Water-cooling
Humidifier
Stainless steel humidifying tube
Airflow Way
Broadband-type forced air circulation




Controller
Operate Interfaces
Korea TEMI 880 LCD touch screen
Memory capacity
120 groups, each program 100 segment
Input
PT100 or T thermocouple
Communicate Interface
RS-232

Subsidiary function
Upper and lower alarm; self diagnosis ;
alarm display(fault cause); time sequence protection
(Automatic turn on or turn off )


Water supply
Water supply
Circulating water supply
Water tank
Built-in hand type(30Kg capacity)
Water quality
resistance >500Ω.m

Standard Configuration
One observe window(Double hollow toughened glass); one test pattern D50mm(on the left); 2 layers sample frame;
onefloodlight(fluorescent lamp);one water feeding tank;

Safety device
Power leakage protection; Dry heating protection;
Water protection Over-temperature protection switch; Temperature deviation
alarm, Compressor Overpressure; overload; Water shortage; Phrase shortage, etc.
Power supply
220VAC ±10%50/60Hz & 380VAC ±10%50/60Hz

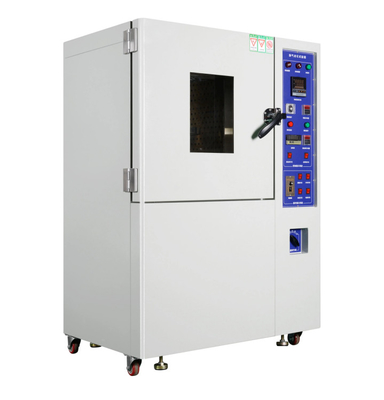

Industrial Air Ventilation Climate Test Chamber For Accelerated Aging Simulation 0

Company Information:



Dongguan Neide Technology Co. Ltd  located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.



Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.



At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.



This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.
