LPX9K High Pressure Salt Spray Test Chamber for Comprehensive Environmental Simulation
| Place of Origin | China |
|---|---|
| Brand Name | Neide |
| Certification | CE |
| Model Number | ND-S900 |
| Document | Neide catalogue.pdf |
| Minimum Order Quantity | 1 set |
| Price | negotiate |
| Packaging Details | Wooden Case Packing |
| Delivery Time | 7~15 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 100set per month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Neide | Customized | Welcome |
|---|---|---|---|
| Factory | Yes | Customer | More Than 500+ |
| Material | SUS304 Or Customized | After-sales Service | Yes |
| Transportation | By Sea | Reply For Probme | Within 24 Hours |
| Highlight | High Pressure Salt Spray Test Chamber,Environmental Simulation Salt Spray Test Chamber |
||
Product Description

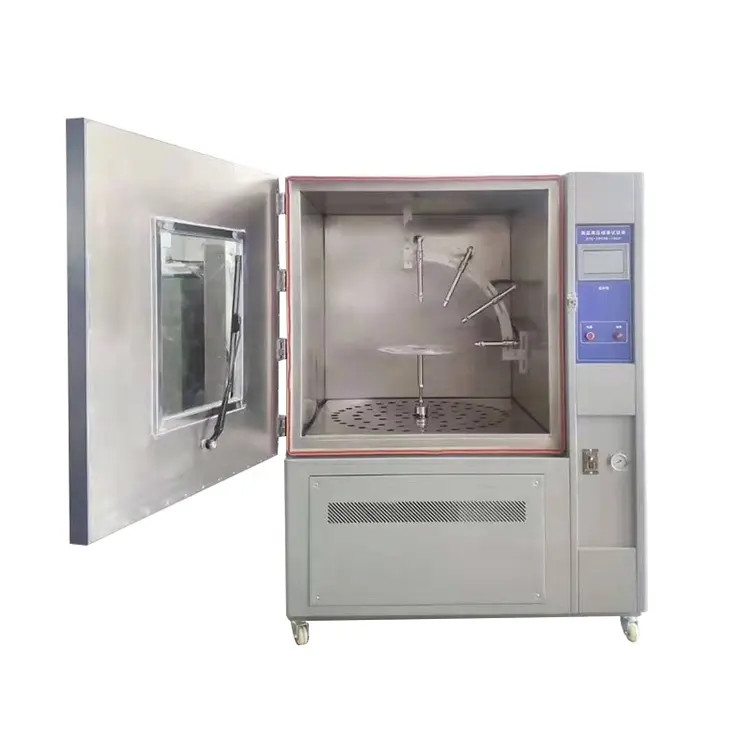

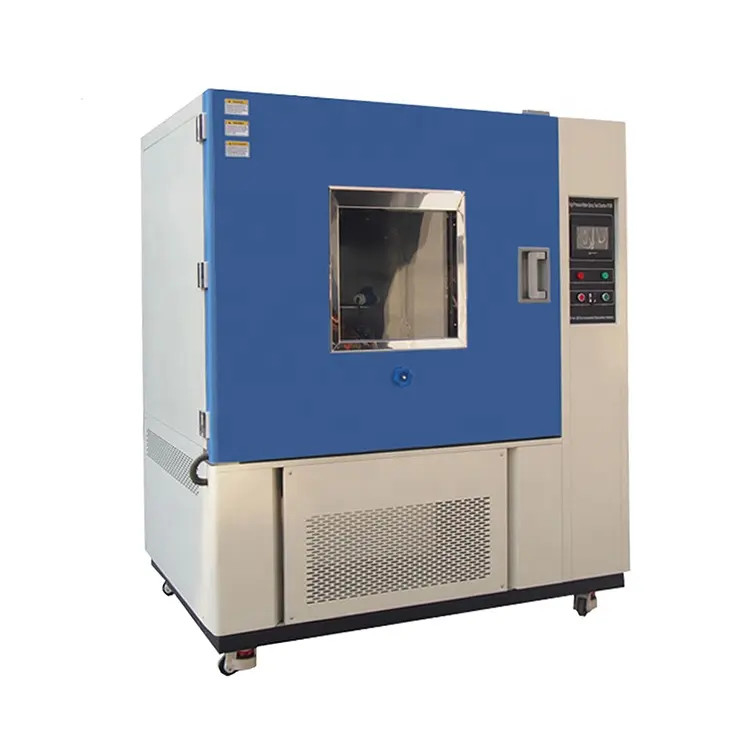

LPX9K High-Pressure Spray Test Chamber for Comprehensive Environmental Simulation
Product Description:
The IPX9K High - Pressure Rain Spray Test Chamber is a specialized and indispensable piece of equipment in the field of product waterproofing assessment. Its primary function is to accurately test the IPX9K waterproof grade of a wide variety of products.
The chamber features a box - type structure, which offers several advantages. It provides a self - contained and enclosed testing environment, minimizing the impact of external factors on the test results. This structure also allows for easy installation and operation, with no significant site restrictions. Whether in a laboratory setting or an industrial production facility, the box - type design can be easily integrated into the existing space.
Specifications:
| Internal Dimensions (mm) | 1000*1000*1000 |
| Overall Dimensions (mm) | Approx 1450*1180*1850 W*D*H |

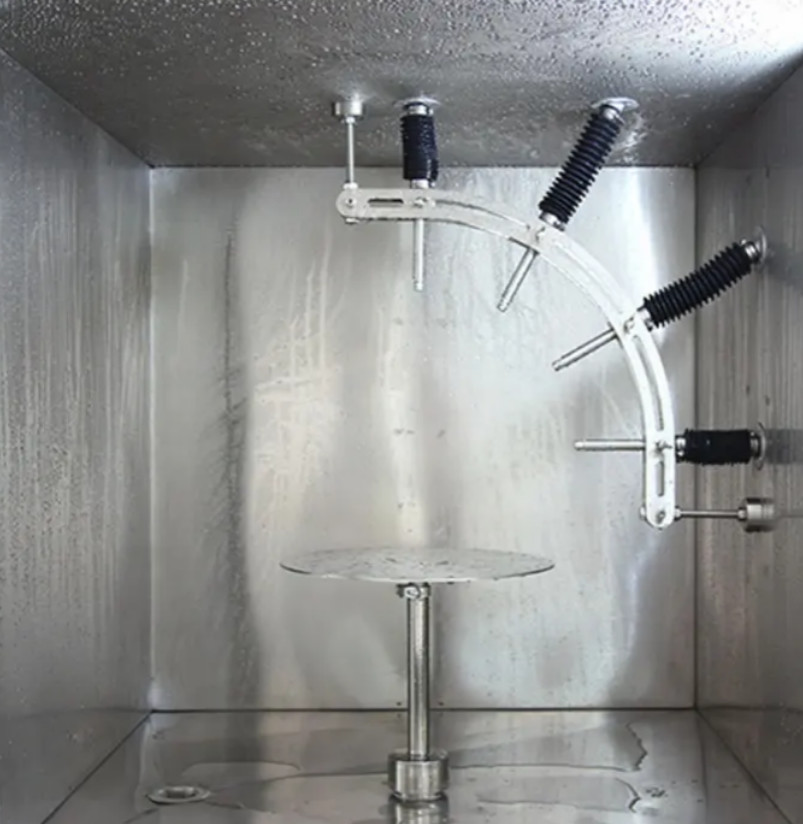

| Numbers of Spray Nozzles | 4 |
| Water Spray Angle | 0°.30°.60°.90° |
| Spray Adjustable Range | 0-200 mm (Horizontal directon) :0-170 mm (Vertical direction) |
| Test Platform Dlameters | 400mm |
| Test Platform Lift Range | 450-680mm (Adjustable) |
| Function Parameters | |
| Water Pressure | 8000-10000 Kpa (adjustable) |
| Water Flow Rate | 14L-16L/min |
| Water Temperature | RT(25℃):80℃ |
| Water Spray lmpact | 0.9-1.2N |
| Testing Platfom Speed | 1-10 r.p.m (Adjustable) |
| Test Time | 1208 (30S each position, adjustable) |
| ElectricalParameters | |
| Power Supply | 380V 50HZ |
| Safety protection function | Leakage Protectlon; Water Shortage Prtection; Short Circuit Protection,Phase Sequence Protection, Thermal Overoad Protection |
Company Information:
Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.
Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.
At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.
This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries
