Compact Benchtop Temperature And Humidity Chamber Laboratory Test Chamber JIS C8990

Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-50
Document Neide catalogue.pdf
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden Box(standard export packaging)
Delivery Time 7-22 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Neide Customized Welcome
Factory Yes Customer More Than 500+
Material SUS304 Or Customized After-sales Service Yes
Transportation By Sea Reply For Probme Within 24 Hours
Highlight

Laboratory Benchtop Temperature And Humidity Chamber

,

JIS C8990 Temperature And Humidity Chamber

,

Temperature And Humidity Laboratory Test Chamber

Leave a Message
Product Description

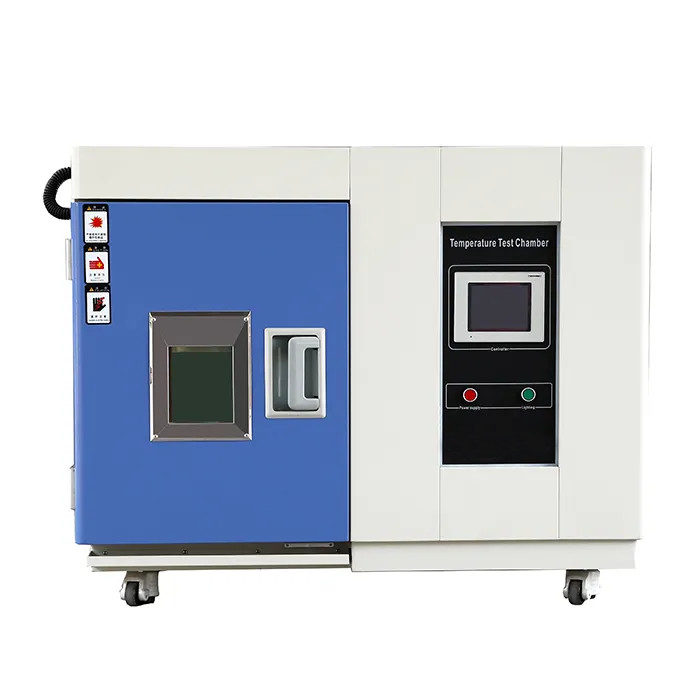

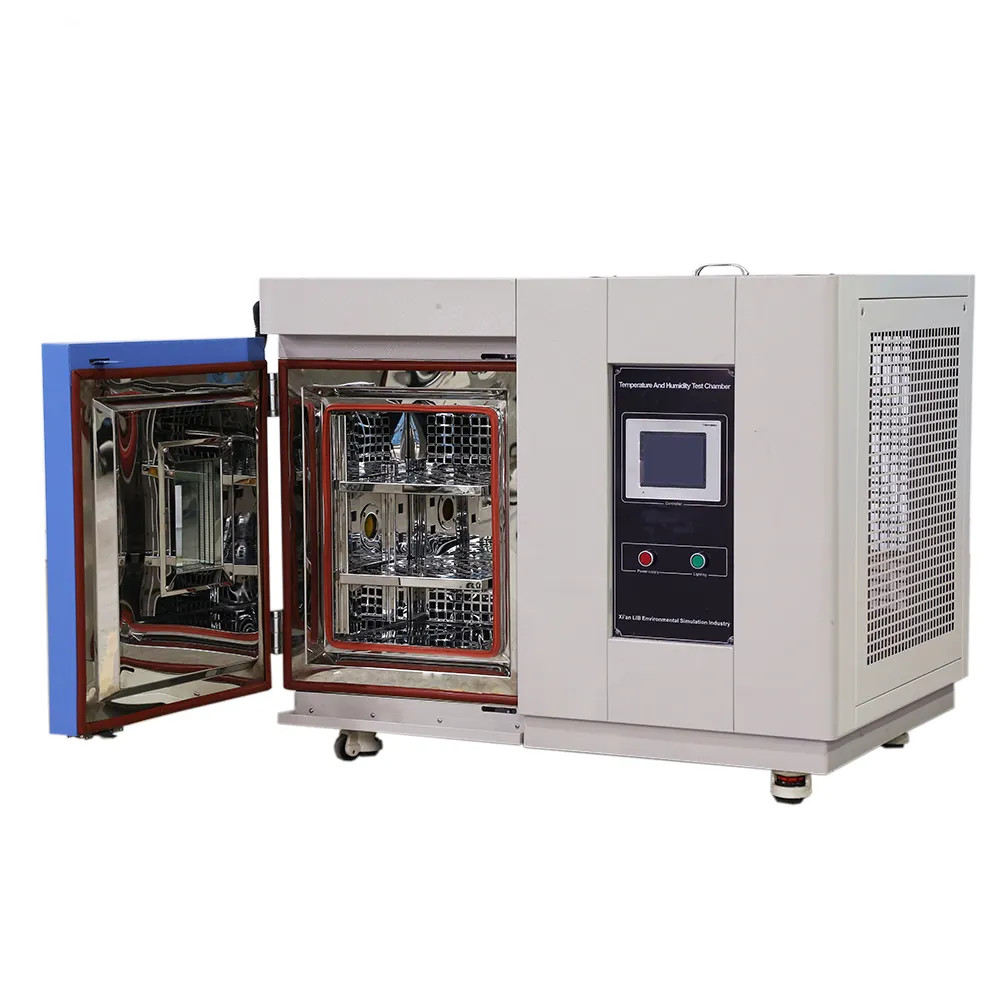

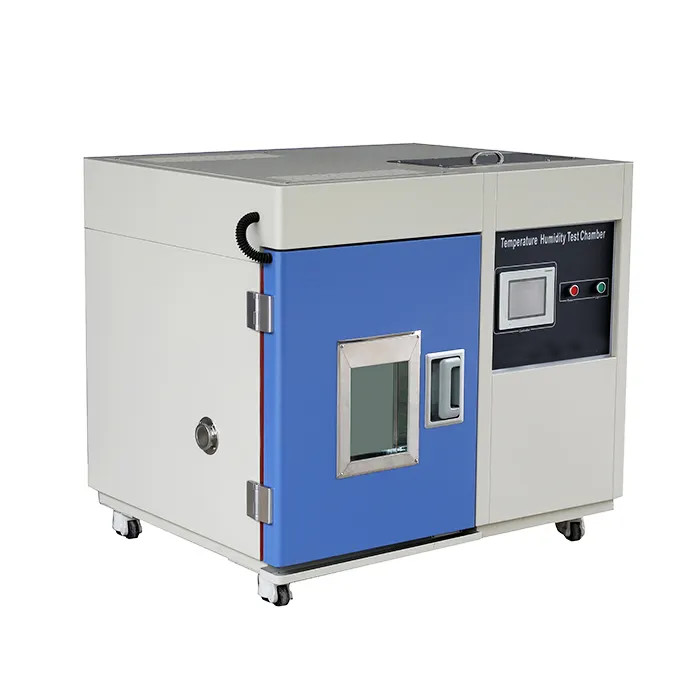

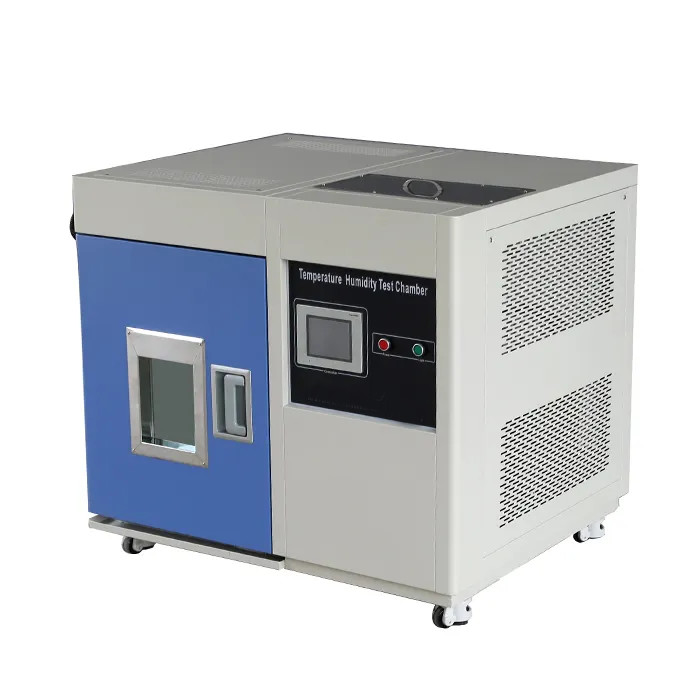

Compact Benchtop Constant Temperature And Humidity Laboratory Test Chamber


Product Description:

The Constant Laboratory Mini Benchtop Temperature and Humidity Test Chamber is a versatile device. It can be used to conduct a wide range of tests, including temperature and humidity tests, cold resistance tests, thermal cycle tests, ultra - low temperature tests, high - temperature tests, and it also has functions for simulating storage conditions and calibration. This test chamber is particularly suitable for testing small test pieces.

It adheres to multiple international standards, such as JIS C8990, IEC61730 - 2, IEC61215, IEC61646, IEC61701, and IEC 61370. These standards ensure that the test results obtained from the chamber are accurate, reliable, and comparable on a global scale, making it an ideal choice for laboratories that require high - precision testing within limited bench - top space.


Specification:

Model
ND-50
ND-80
Internal Dimension (mm)
320*350*450
400*400*500
Overall Dimension (mm)
800*1050*950
900*1100*1000
Interior Volume
50L
80L
Heat load
1000w
Temperature Range
: -20℃ ~ +150 ℃     B : -40℃ ~ +150 ℃        C: -70℃ ~ +150 ℃
Temperature Fluctuation
± 0.5 ℃
Temperature Deviation
± 2.0 ℃
Humidity Range
20% ~ 98% RH
Humidity Deviation
± 2.5% RH
Cooling Rate
1 ℃ / min
Heating Rate
3 ℃ / min
Refrigerant
R404A, R23
Heating Element
Nichrome heater
Controller
Programmable color LCD touch screen controller

Ethernet connection, PC Link
Humidifier
External isolation, stainless steel surface evaporation humidifier
Dehumidification
Evaporator
Temperature Sensor
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
Humidity Sensor
Dry and wet bulb sensor
Exterior Material
Steel Plate with protective coating
Interior Material
SUS304 stainless steel
Standard Configuration
1 Cable hole (Φ 50,) with plug; 2 shelves
Power Supply
220V 50Hz / 380V 50Hz
Maximum Noise
65 dBA
Environmental Conditional
5℃~+35 ℃ ≤85% RH
