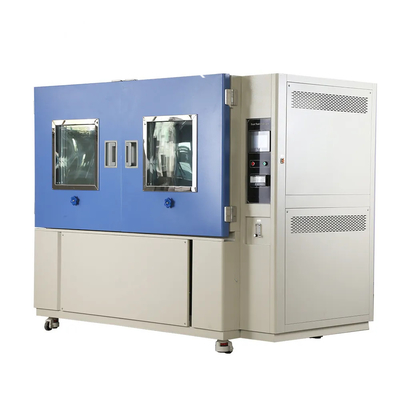

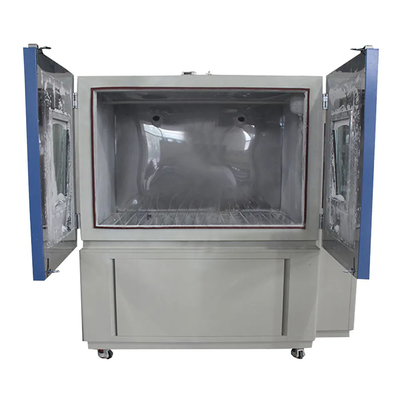

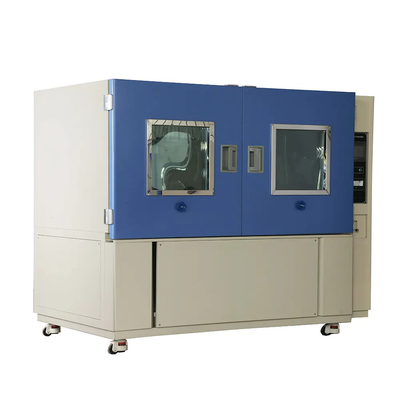

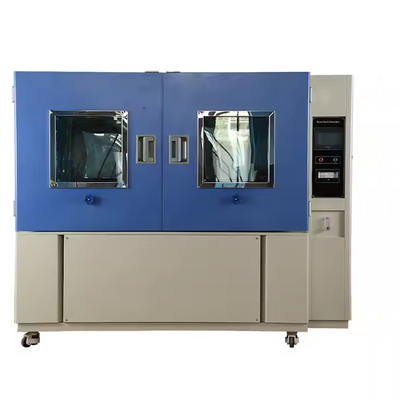

1500L 2000L Sand And Dust Test Chamber For Accurately Simulate Dust Sand Conditions

Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-1500
Document Neide catalogue.pdf
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden Box(standard export packaging)
Delivery Time 7-22 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Neide Customized Welcome
Factory Yes Customer More Than 500+
Material SUS304 Or Customized After-sales Service Yes
Transportation By Sea Reply For Probme Within 24 Hours
Highlight

2000L Sand And Dust Test Chamber

,

1500L Sand And Dust Test Chamber

,

Accurately Simulate Dust Test Chamber

Leave a Message
Product Description

Sand and Dust Resistance Test Chamber



Product Description:

Sand and dust test chambers are specifically designed to accurately simulate dust and sand conditions. These chambers play a crucial role in evaluating the performance of automotive and electronic components when exposed to extreme environmental scenarios. By subjecting components to such conditions, manufacturers can effectively validate the product's seal integrity, ensuring that it can withstand real - world challenges.

The dust ingress test methods employed by these chambers are in strict accordance with international standards. Prominent standards such as IEC60529 and ISO20653 are adhered to, guaranteeing the reliability and comparability of test results. These methods precisely define the procedures for introducing dust and sand into the chamber, along with the parameters for assessing the degree of dust ingress into the test components.



Major Specification:


Model
ND-1500
ND-2000
Internal Dimension (mm)
1000*1500*1000
1000*2000*1000
Overall Dimension (mm)
1250*1900*1960
1300*2400*1960
Interior Volume (L)
1500
2000
Temperature Range
Ambient ~ +50℃
Humidity Range
< 30% RH
Normal Wire Diameter
50um
Nominal Width of a Gap Between wires
75um
Fight Time
0 ~ 99H59M
Blowing Time
0 ~ 99H59M
Specimen Power Outlet
Dust-proof socket 16A
Heating Element
Nichrome heater
Vacuum System
Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Controller
Programmable color LCD touch screen controller

Ethernet connection, PC Link
Interior Material
SUS304 stainless steel
Observation Window
Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration
Sample shelf, dust wiper, talcum powder(5kgs)
Power Supply
380V 50Hz
Maximum Noise
65 dBA
Environmental Conditional
5℃~+35 ℃ ≤85% RH
Standard
IEC 60529, ISO 20653
