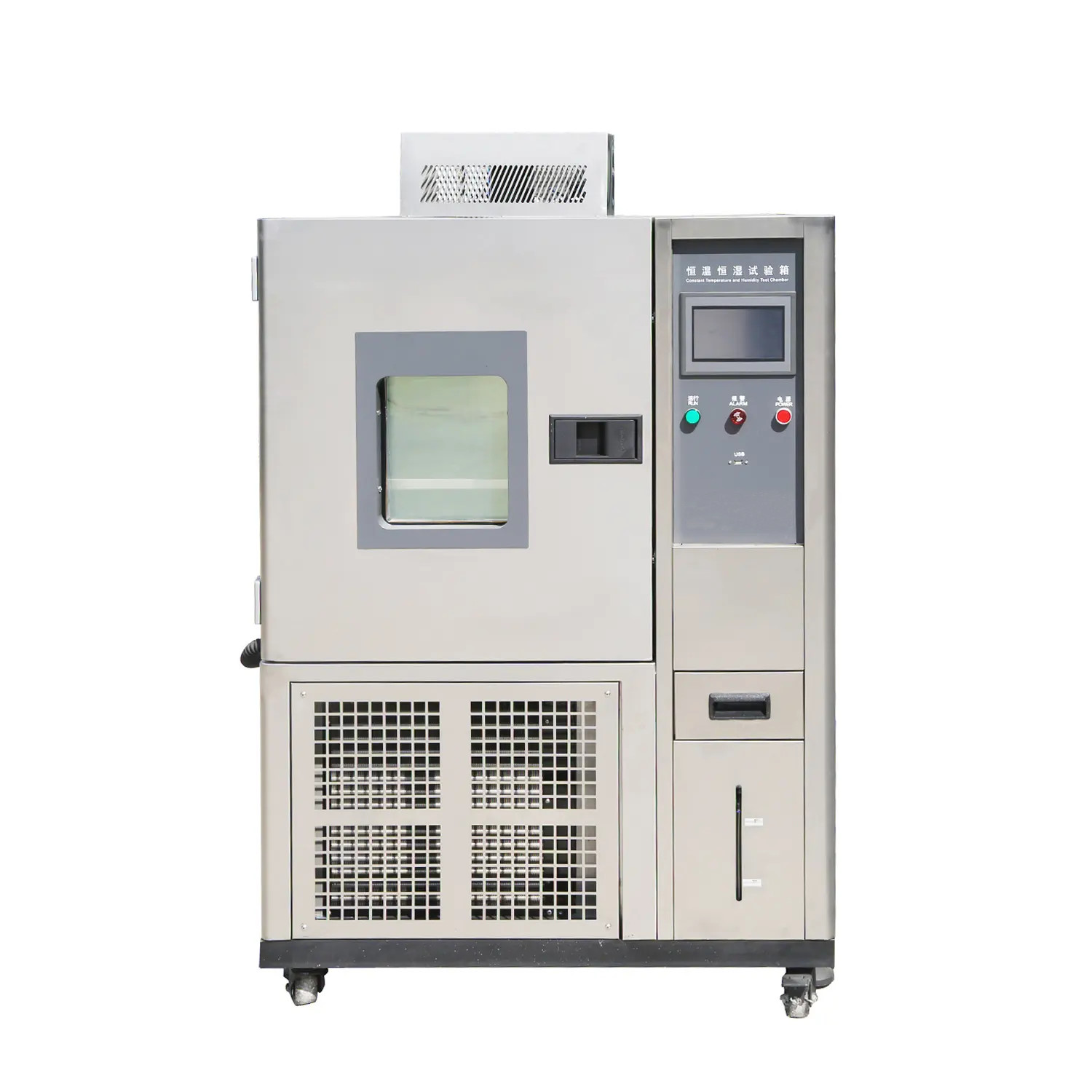

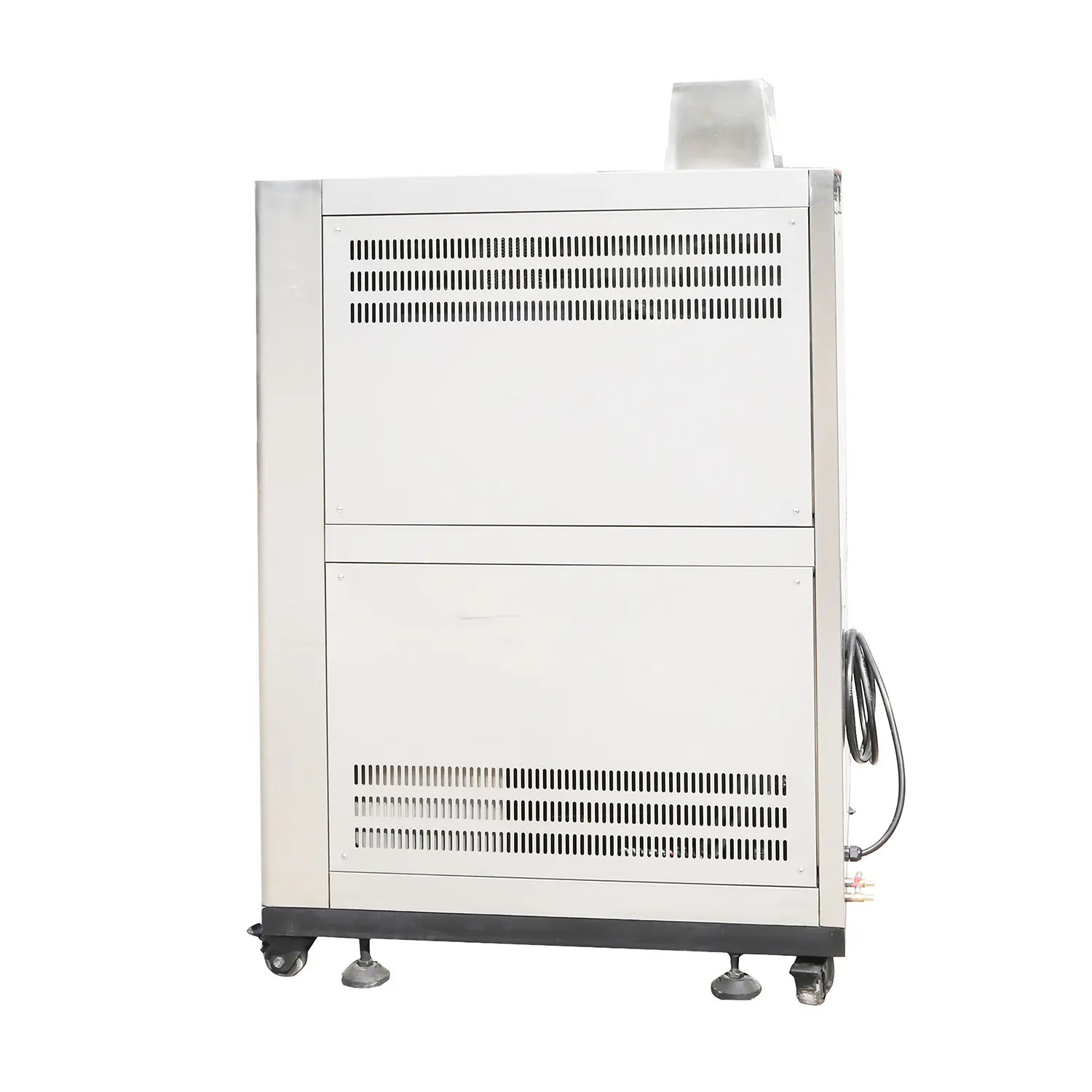

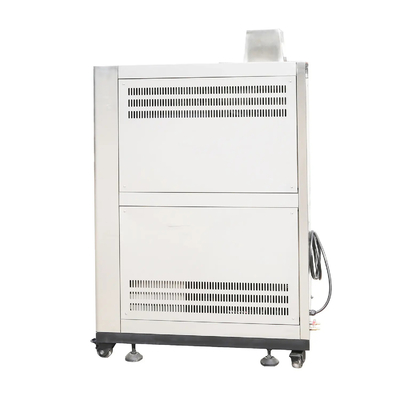

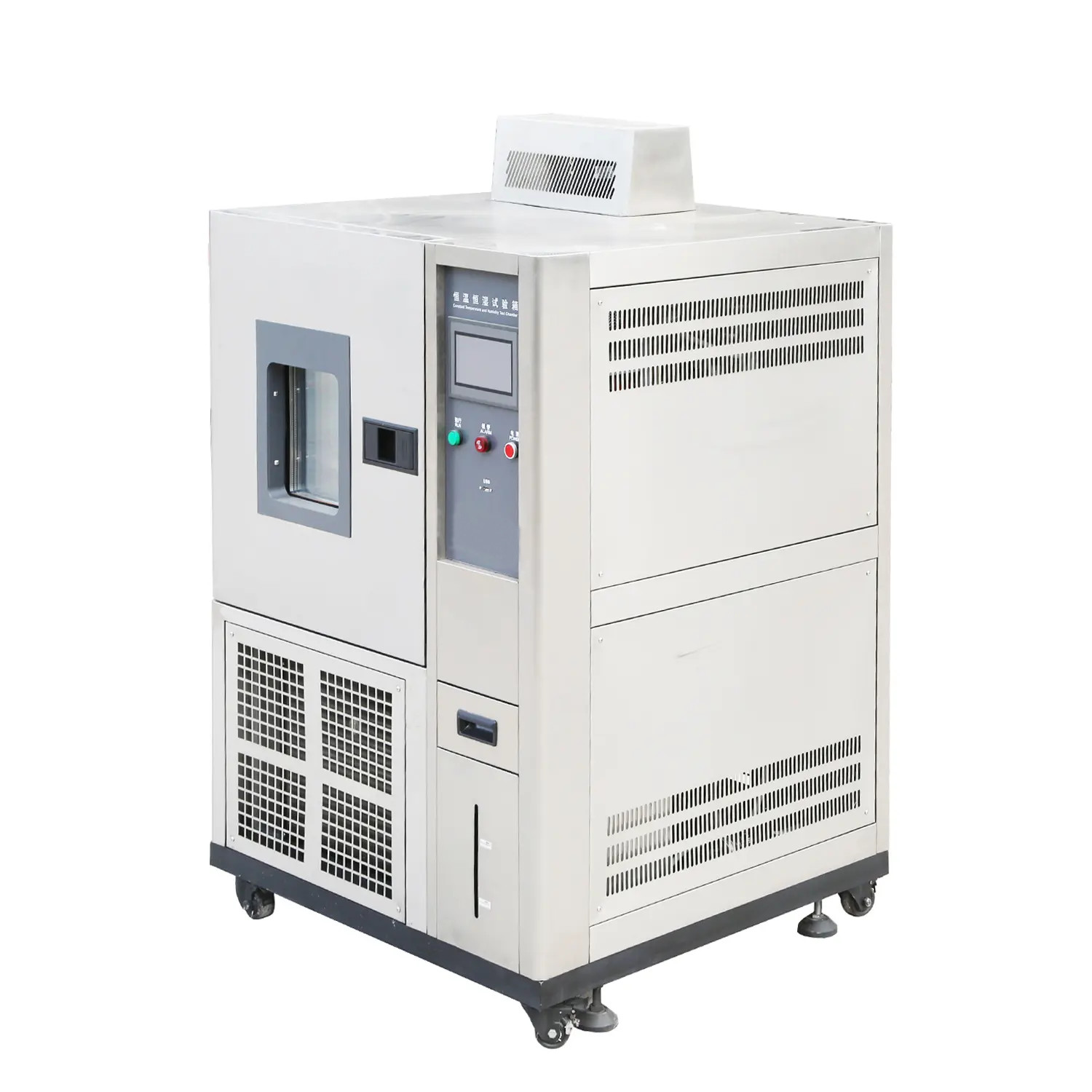

Precise Control Temperature Test Chamber For High And Low Temperature Testing

Place of Origin	China
Brand Name	Neide
Certification	CE
Model Number	ND-225
Document	Neide catalogue.pdf
Minimum Order Quantity	1 set
Price	Negotiable
Packaging Details	Wooden Box(standard export packaging)
Delivery Time	7-22 work days
Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability	100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Brand	Neide	Customized	Welcome
Factory	Yes	Customer	More Than 500+
Material	SUS304 Or Customized	After-sales Service	Yes
Transportation	By Sea	Reply For Probme	Within 24 Hours
Highlight	Precise Control Temperature Test Chamber , High And Low Temperature Test Chamber

Leave a Message

Product Description

Temperature Extremes Test Chamber Machine For High And Low Temperature Testing

Product Description:

The High and Low Temperature Test Chamber is ingeniously engineered to comprehensively assess the endurance capabilities of products under diverse environmental stressors. This chamber is specifically designed to evaluate a product's resistance to high temperatures (heat - endurance), low temperatures (cold - endurance), dry conditions (dryness - endurance), and humid environments (humidity - endurance).

Beyond precise temperature control, our test chamber excels in humidity regulation. It can maintain relative humidity levels across an impressively wide spectrum, ranging from a low of 10% RH to a high of 98% RH. This enables the accurate simulation of both arid and humid conditions. High humidity can lead to problems such as corrosion in metal products or the degradation of electrical insulation performance. By precisely controlling humidity, manufacturers can pinpoint potential flaws in product design and materials. For dryness - endurance testing, the chamber can generate low - humidity environments, allowing for the assessment of product performance in dry conditions. This is particularly relevant for industries such as food, where moisture - sensitive products must retain their quality.

Specification:

Model	ND-80 (A~F)	ND-150 (A~F)	ND-225 (A~F)	ND-408 (A~F)	ND-800 (A~F)	ND-1000 (A~F)
Inner size: WHD(cm)	405040	506050	607550	608580	10010080	100100100
External size: WHD(cm)	10516598	105175108	115190108	135200115	155215135	155215155
Temperature range	(Low:A:+25℃; B:0℃;C:-20℃; D:-40℃;E:-60℃;F:-70℃) (High:+100℃/+150℃)
Humidity range	20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)
Temp analytic accuracy/ uniformity	0.1℃/±2.0℃
Temperature Fluctuation	±0.5℃
Humidity analytic accuracy/ Humidity control accuracy	±0.1%;±2.5%
Heat; cooling time	Heat up about 4.0°C/min ; Cooling about 1.0°C/min
Inner and outer materials	SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer
Insulation materials	Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
Cooling system	Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C)
Protection devices	Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system
Parts	Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4
Compressor	Original France“Tecumseh”brand
Controller	TEMI South Korea
Power	AC220V 50/60Hz & 1, AC380V 50/60Hz 3
weight (kg)	150	220	270	320	450	580

Precise Control Temperature Test Chamber For High And Low Temperature Testing 0

Company Information:

Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.

Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.

At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.

This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.
