CE Certified Thermal Shock Testing Machine Three Phase For Semiconductor Test

  • CE Certified Thermal Shock Testing Machine Three Phase For Semiconductor Test
  • CE Certified Thermal Shock Testing Machine Three Phase For Semiconductor Test
  • CE Certified Thermal Shock Testing Machine Three Phase For Semiconductor Test
  • CE Certified Thermal Shock Testing Machine Three Phase For Semiconductor Test
Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-150
Document Neide catalogue.pdf
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden Box(standard export packaging)
Delivery Time 7-22 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Thermal Shock Chamber Customized Welcome
Factory Yes Customer More Than 500+
Material SUS304 Or Customized After-sales Service Yes
Transportation By Sea Reply For Probme Within 24 Hours
Highlight

CE Certified Thermal Shock Testing Machine

,

Thermal Shock Testing Machine Three Phase

,

Semiconductor Test Thermal Shock Machine
Leave a Message
Product Description

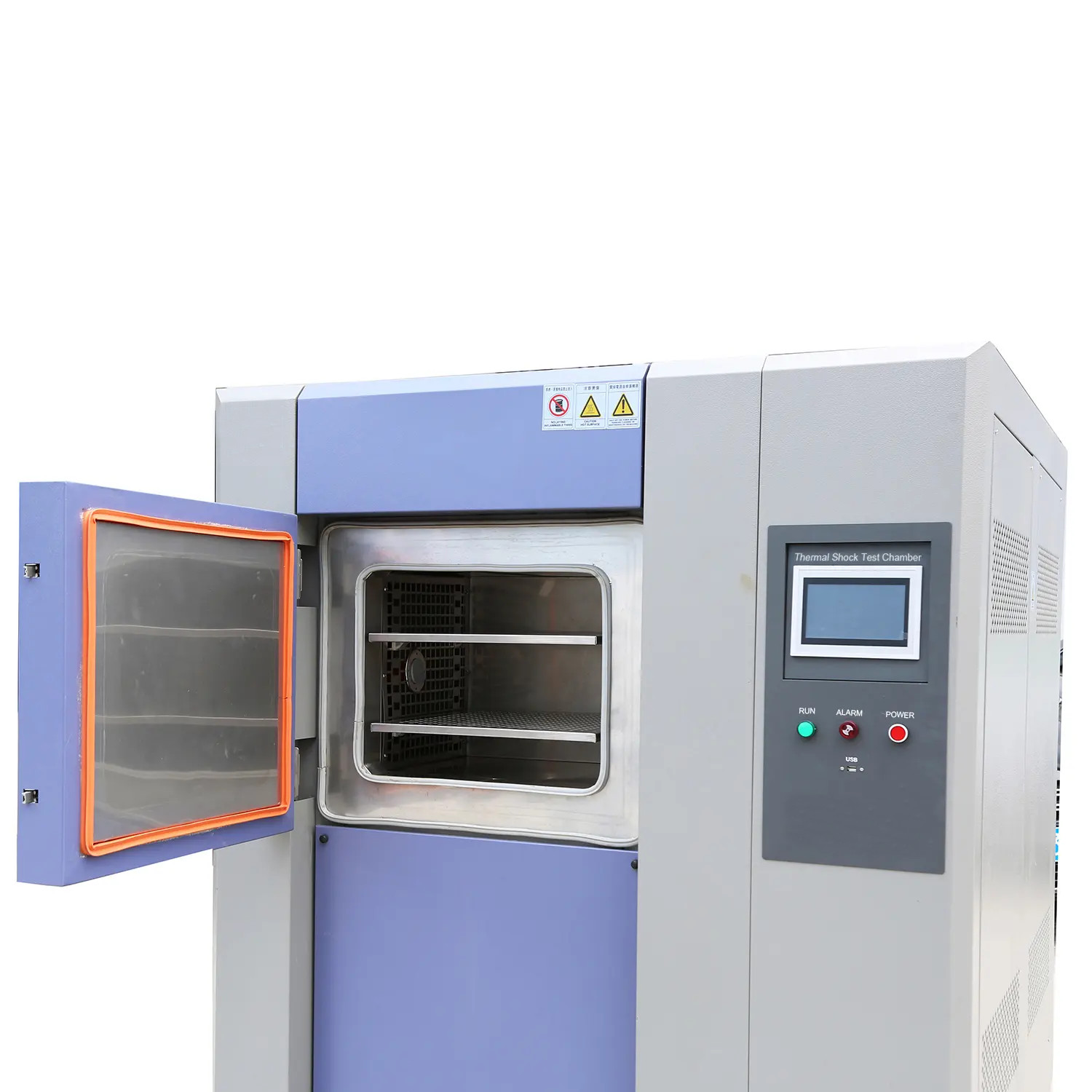

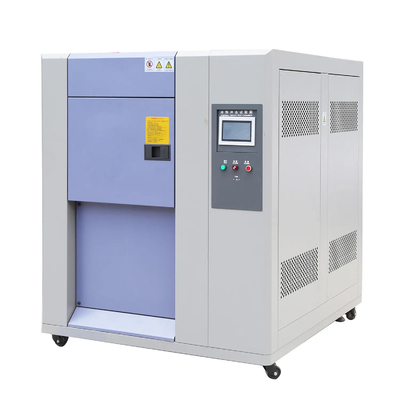

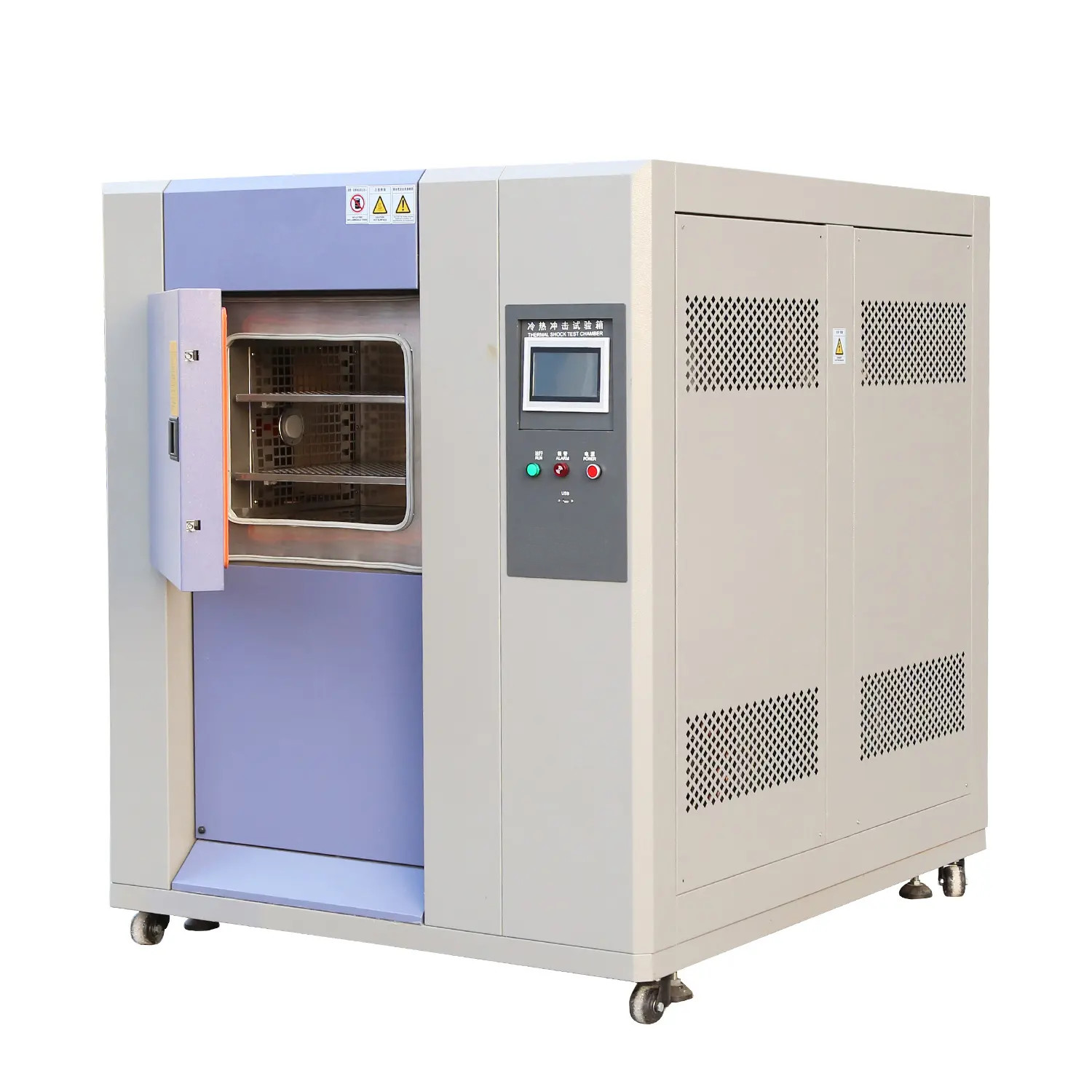

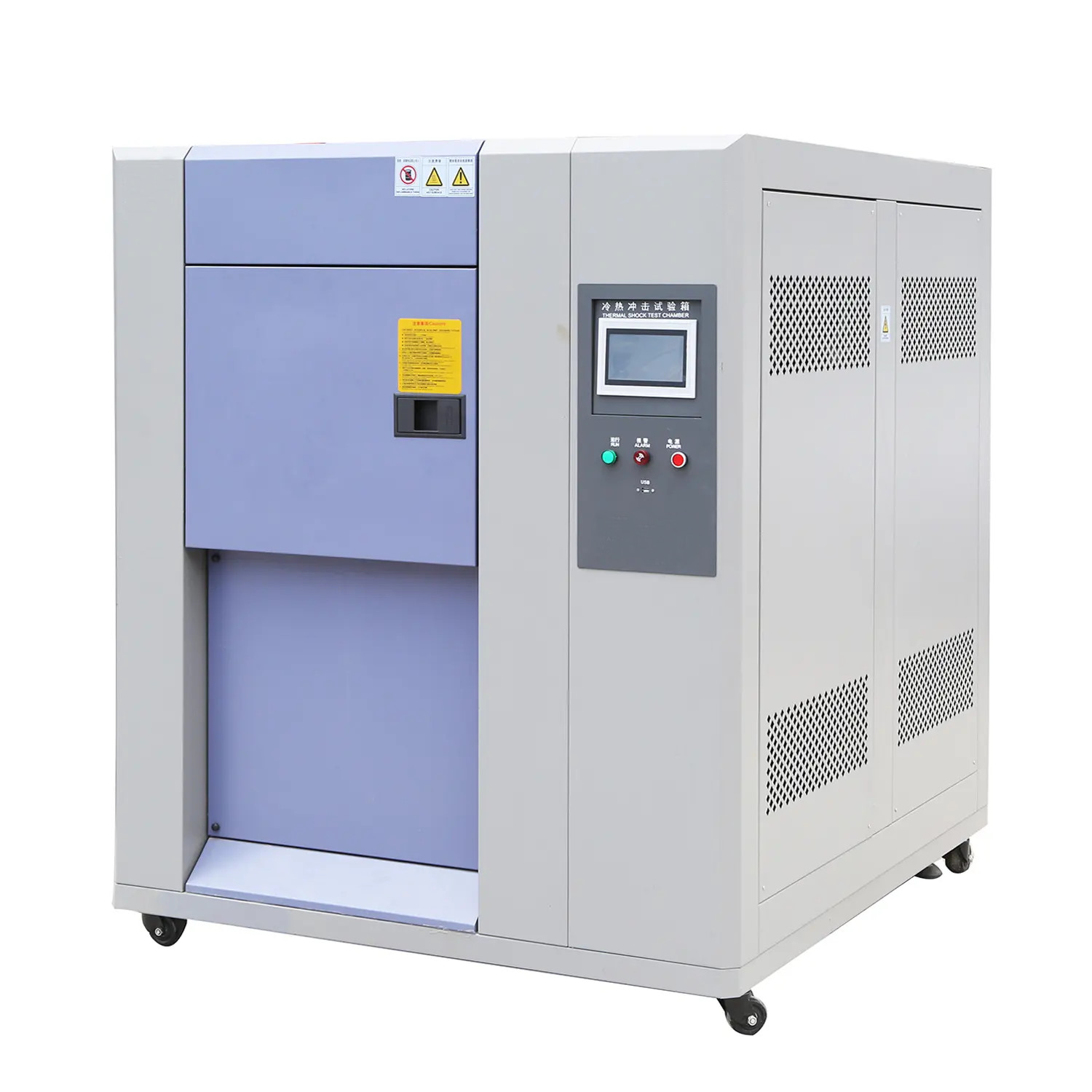

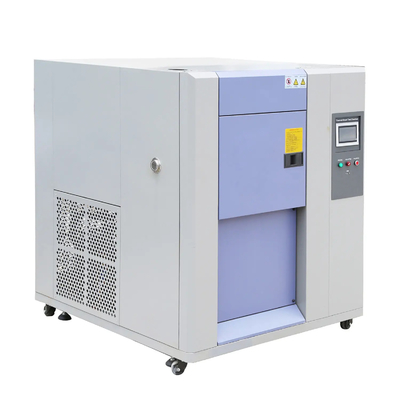

CE Certified Thermal Shock Chamber For Semiconductor Testing



Production Description:

The Thermal Shock Test Chamber represents a state - of - the - art testing instrument engineered to assess the robustness of material structures and composite materials subjected to rapid and consecutive transitions between elevated - temperature and cryogenic - temperature environments. This chamber facilitates the evaluation of materials within the most expedient time frame, ascertaining the magnitude of thermal expansion and contraction, along with any concomitant chemical alterations or physical impairments.



Specification:

Model

ND-42

(A~C)

ND-60

(A~C)

ND-80

(A~C)

ND-100

(A~C)

ND-120

(A~C)

ND-150

(A~C)
Inner size: WHD(cm) 40*30*35 50*30*40 50*40*40 50*50*40 60*40*50 60*50*50
External size: WHD(cm) 150*180*150 160*175*160 160*185*160 160*185*170 170*185*170 170*195*170
Temperature range(Test Chamber) high temperature:+60℃~+200℃;low temperature -10℃~-65℃(A:-45℃;B:-55℃;C:-65℃)
Heating Time RT~200℃ About 30min
Cooling Time RT~-70℃ About 85min
Temperature Conversion Time Less than 10S
Temperature Recovery Time Less than 5min
Temperature Deviation ±2.0℃
Temperature Fluctuation ±0.5℃
Material

External material: SUS#304 Stainless steel plate

   Internal material:SUS#304Stainless steel plate
Output Mode Water-cooled or air-cooled,Taikang compressor in France
Controller TEMI South Korea
Cooling System

Water-cooled or air-cooled,Taikang compressor in France
Protection devices

Fuse switch, compressor overload switch, refrigerant high and low pressure

protection switch,super humidity over-temperature protection switch,

fuse, failure warning system
patrs Watching window;50mm testing hole; partition plat
Power AC380V 50/60Hz  Three-phase four-wire ac power
weight (kg) 750 790 830 880 950 1050

CE Certified Thermal Shock Testing Machine Three Phase For Semiconductor Test 0



Company Information:



Dongguan Neide Technology Co. Ltd  located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.



Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.



At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.



This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries
