Air Circulation Aging Climate Test Chamber 80L 150L 225L 408L 500L 800L 1000L

Place of Origin	China
Brand Name	Neide
Certification	CE
Model Number	ND-800
Document	Neide catalogue.pdf
Minimum Order Quantity	1 set
Price	Negotiable
Packaging Details	Wooden Box(standard export packaging)
Delivery Time	7-22 work days
Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability	100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Brand	Neide	Customized	Welcome
Factory	Yes	Customer	More Than 500+
Material	SUS304 Or Customized	After-sales Service	Yes
Transportation	By Sea	Reply For Probme	Within 24 Hours
Highlight	Air Circulation Aging Climate Test Chamber , 1000L Aging Climate Test Chamber

Leave a Message

Product Description

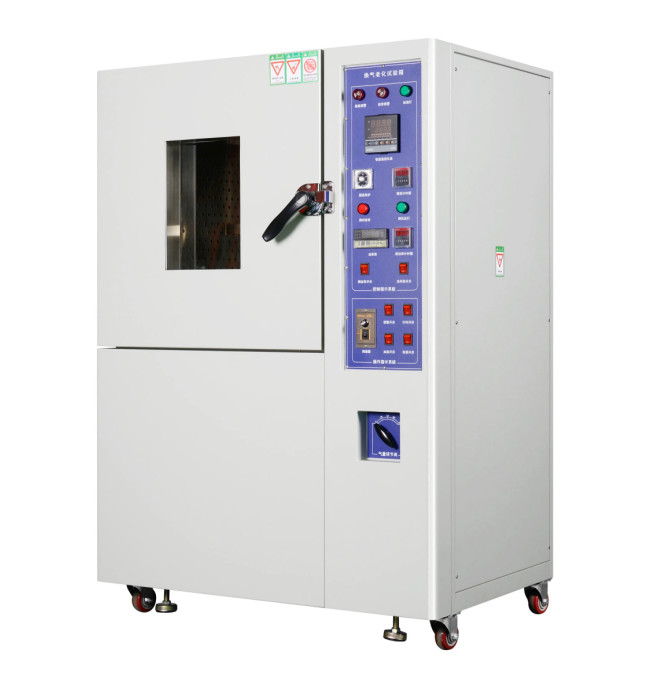

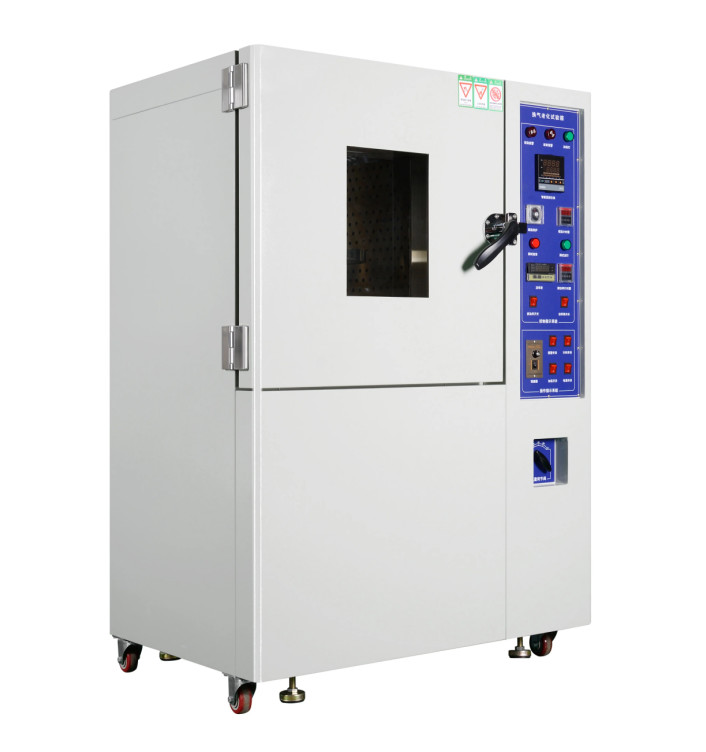

Air Circulation Aging Climate Test Chamber

Product Description:

The air Circulation Aging Climate Test Chamber is meticulously engineered to perform comprehensive heat - resistance assessments. It functions as an indispensable instrument for appraising electrical insulation materials, electronic components, plasticized items, and other materials. By subjecting these materials to high - temperature environmental conditions, it accurately gauges their adaptability for storage and utilization, thereby providing crucial insights into their performance under extreme heat.

Specification:

			Capacity(L)

			80, 150, 225, 408, 500, 800, 1000L(optional, or custom-made)

Performance

			Control Methods

			Balanced temperature humidity control system
(BTHC) PID intelligent adjust

			Temperature and Humidity Range

			-70°C~150°C; 20%-98%R.H

			Accuracy

			±1.0°C, ±2%RH / ±0.5°C, ±2%RH

			Resolution

			±0.1°C, ±0.1%RH / ±1°C, ±3%RH

			Heating Rate

			≤3°C/min

			Cooling Rate

			Average 1°C/min

			Internal Material

			SUS#304 stainless steel

			External Material

			SUS#304 stainless steel or Antirust processing cold-rolled steel sheet(Spray)

			Insulation Material

			Superfine wool + polyurethane foam

Regulator

			Cooling Mode

			Mechanical binary refrigeration way

			Compressor

			Closed compressor
(French Tecumseh or German Copeland )

			Refrigerant

			R23/R404A

			Condensing Way

			Air-cooling and Water-cooling

			Humidifier

			Stainless steel humidifying tube

			Airflow Way

			Broadband-type forced air circulation

Controller

			Operate Interfaces

			Korea TEMI 880 LCD touch screen

			Memory capacity

			120 groups, each program 100 segment

			Input

			PT100 or T thermocouple

			Communicate Interface

			RS-232

Subsidiary function

			Upper and lower alarm; self diagnosis ;
alarm display(fault cause); time sequence protection
(Automatic turn on or turn off )

Water supply

			Water supply

			Circulating water supply

			Water tank

			Built-in hand type(30Kg capacity)

			Water quality

			resistance >500Ω.m

Standard Configuration

			One observe window(Double hollow toughened glass); one test pattern D50mm(on the left); 2 layers sample frame;
onefloodlight(fluorescent lamp);one water feeding tank;

Safety device

			Power leakage protection; Dry heating protection;
Water protection Over-temperature protection switch; Temperature deviation
alarm, Compressor Overpressure; overload; Water shortage; Phrase shortage, etc.

			Power supply

			220VAC ±10%50/60Hz & 380VAC ±10%50/60Hz

Air Circulation Aging Climate Test Chamber 80L 150L 225L 408L 500L 800L 1000L 0

Company Information:

Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.

Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.

At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.

This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.
