Paper Carton Clamping Force And Horizontal Compression Tester For ISTA Handling Tests

Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-667
Document Neide catalogue.pdf
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden Box(standard export packaging)
Delivery Time 7-22 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Neide Customized Welcome
Factory Yes Customer More Than 500+
Material SUS304 Or Customized After-sales Service Yes
Transportation By Sea Reply For Probme Within 24 Hours
Highlight

Touch Screen Carton Compression Tester

,

Paper Carton Clamping Force Compression Tester

Leave a Message
Product Description

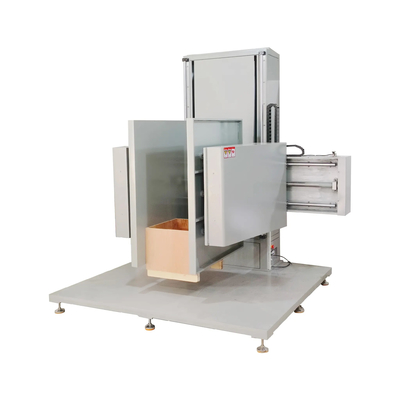

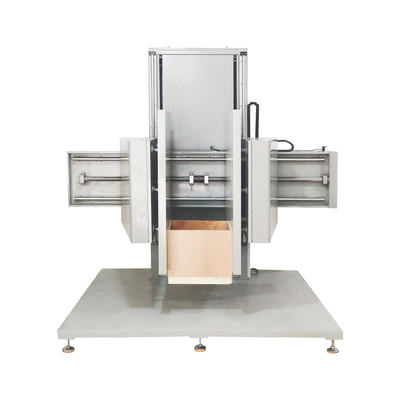

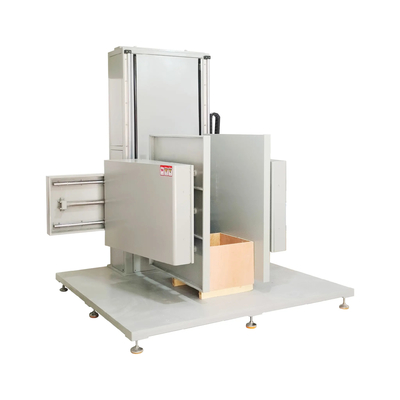

Paper Carton Clamping Force And Horizontal Compression Tester For ISTA Handling Tests



Product Description:

This machine is specifically engineered to accurately measure the deflections that product packages undergo and evaluate the protective capabilities of packages for products when subjected to horizontal pressure during transportation and storage. By providing such precise data, it serves as a crucial tool for enhancing the quality of product packaging. This enables manufacturers to identify potential weaknesses in packaging design, make informed improvements, and ultimately ensure that products are better safeguarded throughout the supply chain, reducing the risk of damage and enhancing customer satisfaction.
Paper Carton Clamping Force And Horizontal Compression Tester For ISTA Handling Tests 0



Major Specification:



Max. Force
500kg (customized)
Motor
Panasonic Servo Motor
Clamping pressure force
According to the transport diagram on the test sample, the operator can add 400~3000Lb (adjustable) pressure force on the
corresponding surface
Clamping board size
1200*1200mm
Clamping board adjustable height
0~1000mm
Lifting speed
10-305mm/min
Clamping board expansion width
200~2000mm
Baseboard dimension
1500*1500mm
Accuracy
within ±5%

Clamping board requirement
Make sure the two clamping board are flat, parallel and non-deform under the work condition(2000Pound) and clamp board and land
are vertical. Clamping board thickness no less than 25mm.
Controller
Touch screen

Safety features
E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
Power
AC380V, 50Hz



Company Information:

Dongguan Neide Technology Co. Ltd  located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.



Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.



At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.



This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.
