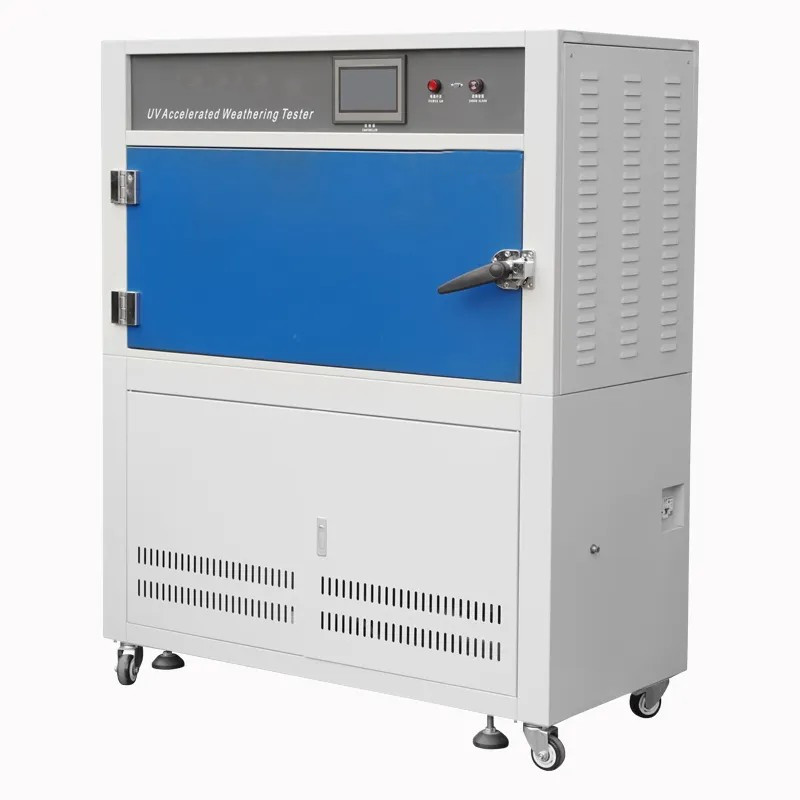

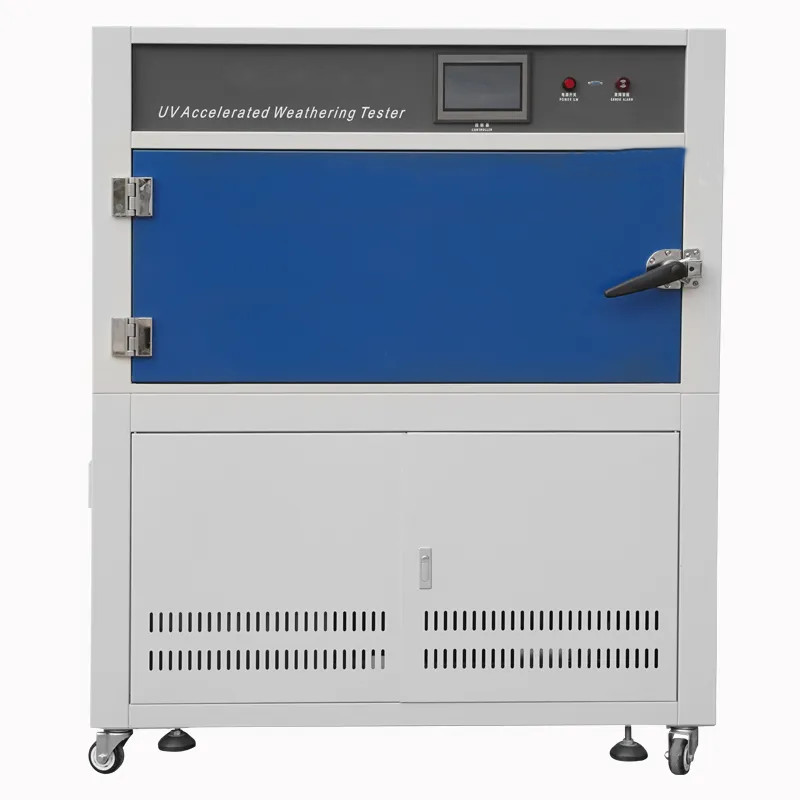

Environment UV Aging Test Equipment , High Accurate UV Weathering Test Chamber

Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-U501
Document Neide catalogue.pdf
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden Box(standard export packaging)
Delivery Time 7-22 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Neide Customized Welcome
Factory Yes Customer More Than 500+
Material SUS304 Or Customized After-sales Service Yes
Transportation By Sea Reply For Probme Within 24 Hours
Highlight

High Accurate UV Aging Test Equipment

,

Environment UV Weathering Test Chamber

Leave a Message
Product Description

Environment UV Aging Test Machine With Competitive Pricing



Product Description:

The UV Weathering Test Chamber is a highly specialized and crucial piece of equipment. It is meticulously engineered to comprehensively test for a wide array of damages that materials may experience. These damages span from aesthetic to structural and chemical aspects.

In terms of aesthetic changes, the chamber can accurately assess colour change, which is a common issue when materials are exposed to sunlight and other environmental factors over time. Gloss loss is another aspect it can detect, as this often affects the visual appeal and surface quality of materials. Chalking, where a powdery substance forms on the surface, is also among the damages it can identify.

Regarding structural damages, the UV Weathering Test Chamber is proficient in detecting cracking, which can compromise the integrity of materials. Crazing, characterized by a network of fine cracks, and hazing, which causes a dull or hazy appearance, are also within its scope of testing. Blistering, where small pockets of air or liquid form on the surface, can be accurately evaluated as well.

Furthermore, the chamber is designed to measure strength loss in materials. As materials are subjected to UV radiation and simulated weather conditions, their mechanical strength may degrade, and this chamber can precisely quantify such losses. Additionally, it can test for oxidation, a chemical process that can alter the composition and properties of materials, leading to reduced performance and durability. Overall, the UV Weathering Test Chamber is an essential tool for industries and researchers seeking to understand and enhance the weather resistance of materials.


Major Specification:



Name

Parameters

Remark

Number

1000000000064



Product name

UV accelerated weathering test chamber



Model

ND-UV3-A



Specimen size

75*150mm*10mm(W*H*D)

48PCS

Dimension of outer box

About W1300*H1470*D520(mm)



Effective irradiation area

900*210mm (W*H)



Center distance of the lamp

70mm



Distance of the specimen

from the nearest parallel

plane to the surface of the lamp

About 50mm



Wavelength range

Range of 280~315nm

Original U.S.

Q-LAB brand UVB-340+

Radiation intensity

Official data:0.68W/m2/ adjustable within 315nm



Temperature resolution

0.1℃



Light temperature range

50℃~75℃

Temperature tolerances of ±3℃

Condensing temperature

range

40℃~60℃

Temperature tolerance of ±3°C

Measuring range of

blackboard thermometer

30~80

Tolerance of ±1°C

Temperature control mode

PID self-tuning temperature control

method



Humidity range

About 45%~98%R.H





Sink requirement

Water depth not greater than 25mm with automatic water supply controller

Irradiation meter/UV

Irradiation meter (Optional)

It is an automatic optical radiation measuring instrument, mainly used to measure the radiation intensity of ultraviolet radiation, that is, the radiation power per square meter, and real-time detection of irradiance

Recommended instrument

environment

5~35℃, 40%~85%R·H, 300mm away from the wall

Power supply (of a machine)

AC1 3W 220V 50/60HZ   4.5KW  25A



Environment UV Aging Test Equipment , High Accurate UV Weathering Test Chamber 0
