Photovoltaic Solar Panel Simulator Test Chamber PV Test Equipment IEC61215 IEC61646

Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-P04
Document Neide catalogue.pdf
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden Box(standard export packaging)
Delivery Time 7-22 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Neide Customized Welcome
Factory Yes Customer More Than 500+
Material SUS304 Or Customized After-sales Service Yes
Transportation By Sea Reply For Probme Within 24 Hours
Highlight

Photovoltaic Solar Panel Simulator Test Chamber

,

IEC61215 Photovoltaic PV Test Equipment

,

IEC61646 Solar Panel Testing Equipment

Leave a Message
Product Description

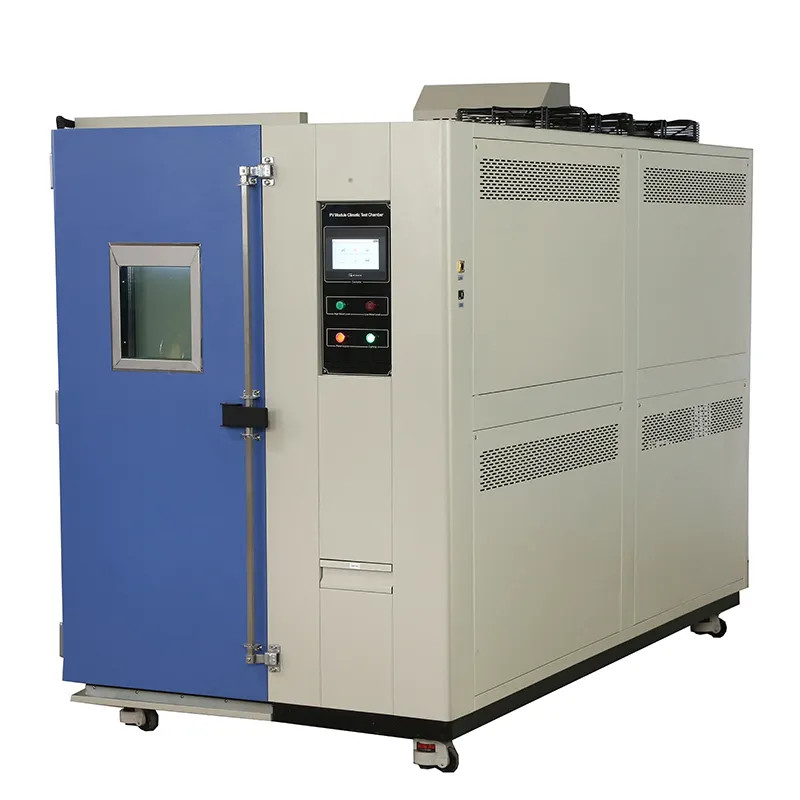

Photovoltaic Solar Panel Simulator Test Chamber PV Test Equipment



Product Description:

The Photovoltaic Solar Panel Simulator Test Chamber, an advanced and highly specialized piece of PV test equipment, is meticulously engineered to meet the most rigorous and exacting demands of the rapidly evolving photovoltaic industry. This state-of-the-art chamber, equipped with cutting-edge technology and sophisticated control systems, plays an indispensable and pivotal role in comprehensively evaluating and fine-tuning the performance of solar panels under a wide array of simulated conditions. These conditions span from extreme temperature variations, mimicking both scorching desert heat and frigid polar cold, to diverse levels of humidity, replicating the dampness of tropical rainforests and the aridity of arid deserts, as well as different solar irradiance intensities, mirroring everything from bright, cloudless days to overcast, low-light scenarios.



Specification:

Model
ND-P04
Internal Dimension (mm)
1300*700*1350
Overall Dimension (mm)
1900*1100*1750
Temperature Range
-60℃ ~ +100 ℃
Humidity Range
20% ~ 98% RH
Humidity Deviation
± 2.5% RH
Temperature Change Rate
1 ~ 3.4℃ / Min
Panel Size
1M*2M
Panel Capacity
4 / 6 / 8 / 10 / 12 Pieces
Cooling
Environmentally friendly refrigerant
Controller
Programmable color LCD touch screen controller,Ethernet connection, PC Link, USB
Sensor
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
Safety Device
Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection;
Refrigerant High-pressure Protection; Water Shortage Protection; Earth leakage Protection
Exterior Material
Steel Plate with protective coating
Interior Material
SUS304 stainless steel
Standard Configuration
1 Cable hole (Φ 50,) with plug; 2 shelves
Power Supply
220V 50Hz / 380V 50HZ
Standard
IEC61215, IEC61646, IEC61108, IEC62688, UL1703, IEC61345

Photovoltaic Solar Panel Simulator Test Chamber PV Test Equipment IEC61215 IEC61646 0
