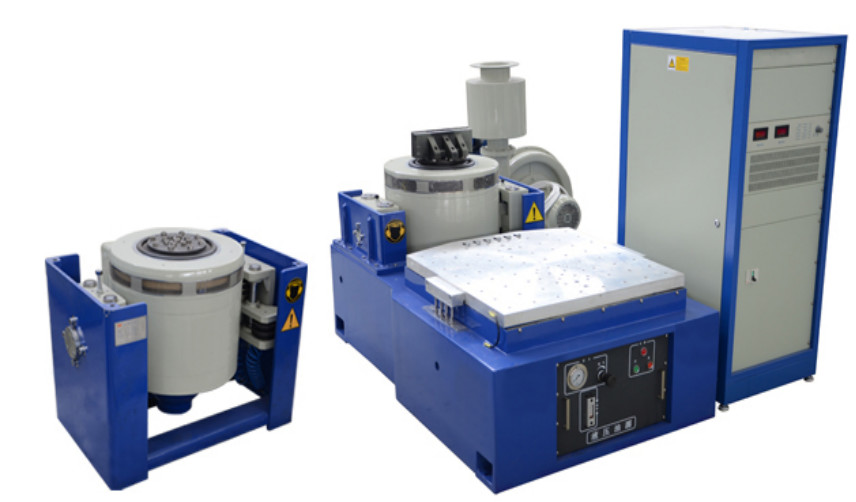

Electromagnetic High Frequency Vibration Test Chamber Multifunctional Climatic Vibration Test System

Brand Name	Neide
Certification	CE
Model Number	ND-215M
Minimum Order Quantity	1 set
Price	negotiate
Packaging Details	Wooden Case Packing
Delivery Time	7~16 work days
Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability	50 sets per month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Brand	Neide	Product Name	Electronic Vibration Test System
Max Test Load	70 Kg	Dimension Of Surface L×W×H	696mm×520mm×610mm ( Vertical Test Surface)
Weight Of Body(kg)	About 390kg	Output Watt	2kVA
Customized	Welcome	Factory	Yes
Customer	More Than 500+	Material	SUS304 Or Customized
After-sales Service	Yes	Transportation	By Sea
Reply For Probme	Within 24 Hours
Highlight	Electromagnetic High Frequency Vibration Test Chamber , Vibration Test Chamber Multifunctional , Multifunctional Climatic Vibration Test System

Leave a Message

Product Description

Electromagnetic Multi Functions Climatic Vibration Test & Shock System Vibration Testing for Machine and Air

Product description:

The electronic vibration testing system is equipped with advanced vibration generators, which can accurately reproduce a variety of complex vibration scenarios. Whether it is sinusoidal vibration, simulating the periodic forces on equipment during stable operation, or random vibration, mimicking the irregular and unpredictable impacts and jolts in the real world, such as a vehicle traveling on a bumpy road, it can all be highly replicated. It has a wide frequency range, starting from an ultra-low frequency of 0.1 Hz and covering up to several thousand hertz at the high end. This enables all kinds of electronic products, ranging from tiny precision chips to large in-vehicle electronic devices, to undergo rigorous testing within the corresponding frequency intervals, so as to adapt to real working conditions in advance.

Specification:

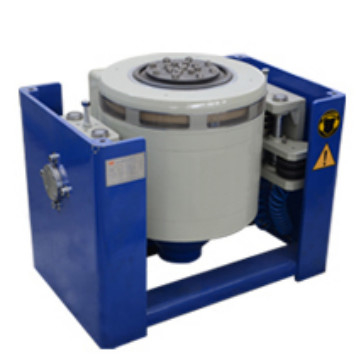

Technical parameter	Vibration test body: model: ND-215M
	Rated sine excitation force(peak):	2 kN
	Rated random excitation force(rms):	2 kN
	Impact vibration force(peak)	4 kN
	Frequency range:	2～4500 Hz
	Max displacement(p-p):	25.4mm
	Max speed:	2m/s
	Max acceleration speed:	981 m/s2
	First class resonant frequency:	3400 Hz±5%
	Max test load	70 kg
	Vibration isolation frequency:	3 Hz
	Diameter of working table surface:	Ф150 mm
	Equivalent mass of working parts:	2 kg
	Surface screw:	13*M8
	Magnetic flux leakage:	＜3.0 mT
	Dimension of surface LWH:	696mm520mm610mm ( vertical test surface)
	Weight of body(kg):	About 390kg

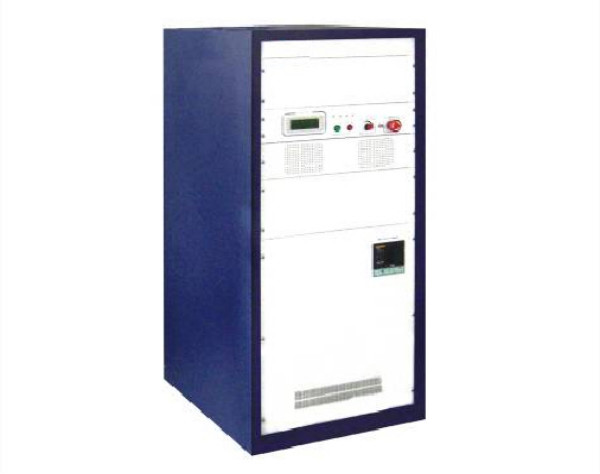

	Intelligent switch type power amplifier: ND-MPA101
	Output watt:	2kVA
	Output voltage :	100V

Installation site requirement

Use environment

Environment temperature: 10 ～ 40℃;

Related humidity: below 80%;

Installation site

1.The distance between the right/left/back site and wall should at least more than 300 mm ,the distance between the front site and the wall should be at least 1000mm;

2.Make sure the door gate, gallery or the elevator can pass through the machine in case of affecting your company progress.

3. The installation site is flat ground, without the corrosive gas around it, less dust, better has the air-conditioner;

4.the customer need to prepare for the related slings for lifting loads and forklift.

Power supply information

Single phase AC380V ±10% 50Hz,15A;

The vibration test system must be equipped with the test lab specialized grounding wire, the resistance of the grounding wire should less than 4Ω;

The customer need to prepare for the three phases isolation power master switch for the vibration test system.

The Third Party Calibration

1.Before shipping,if the customer need to calibration by the Third Party(The validity inspect report showed by State Environmental Test Equipment Quality Test Center),the cost and fees will be paid by customer.If the first examination do not qualified, after the supplier improved,the second check fees will paid by the

supplier;

2.The customer himself authorizes the State Environmental Test Equipment Quality Test Center to check it.

Quality Guarantee

※Our company passed the ISO9001 Quality Certification System in June 2000 and passed the ISO9001 Quality Control System of the 2000 edition of the review.

※Our company implement ISO9001:2000 Standard to make sure the quality.

1) Our company will keep one year warranty time for free for foreign customers.

During the warranty period, if have any quality (not include the following reasons: the human damage; nature disasters damage; damaged by mistaken operation; others non-quality reasons) with our parts, we will help exchange the it by free;

2) If not because of quality, but the parts are damaged, we will help to exchange it by some extent fee based on the maintenance cost and material cost;

3) If have any other questions that not related the components, pls feel free to e-mail or telephone to us, our after-service department will help to figure it out;

4) Besides, we also can supply the technical information and advice anytime;

5) We have the parts and other material special storage for customers use emergency;

Company Information:

Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.

Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.

At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.

This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries

FAQ:

1. How to choose the most suitable Mechanical Equipment ?

Our team will give you the suggestion based on you need and the required specification.

2.What’s the delivery term?
At most of time, we have stock in the factory. If no stock available, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

5. Do you have customers of our country before?

Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.

6. How about your warranty?
Generally,our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.

7. How about the packing for chamber, is it safely protected during transportation?
Our chambers is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
