Electronic Environmental Vibration Climate Test System For Comprehensive Reliability Testing

  • Electronic Environmental Vibration Climate Test System For Comprehensive Reliability Testing
  • Electronic Environmental Vibration Climate Test System For Comprehensive Reliability Testing
  • Electronic Environmental Vibration Climate Test System For Comprehensive Reliability Testing
  • Electronic Environmental Vibration Climate Test System For Comprehensive Reliability Testing
Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-996
Document Neide catalogue.pdf
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden Box(standard export packaging)
Delivery Time 7-22 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100sets/month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max. Sine Force 3200Kg.f Peak Frequency Range 2~3000Hz
Displacement (p-p) 51 Mm Max. Load Capacity 300kg
Power Three-phase, 380V, 50Hz HE/ST Screw Dimension 17×M10
Axial Vibration Isolation Frequency <2.5Hz Machine Dimension 845mm*790mm*840mm; Without Expander Table
Brand Neide Customized Welcome
Factory Yes Customer More Than 500+
Material SUS304 Or Customized After-sales Service Yes
Transportation By Sea Reply For Probme Within 24 Hours
Highlight

Environmental Vibration Climate Test System

,

Electronic Vibration Climate Test System
Leave a Message
Product Description

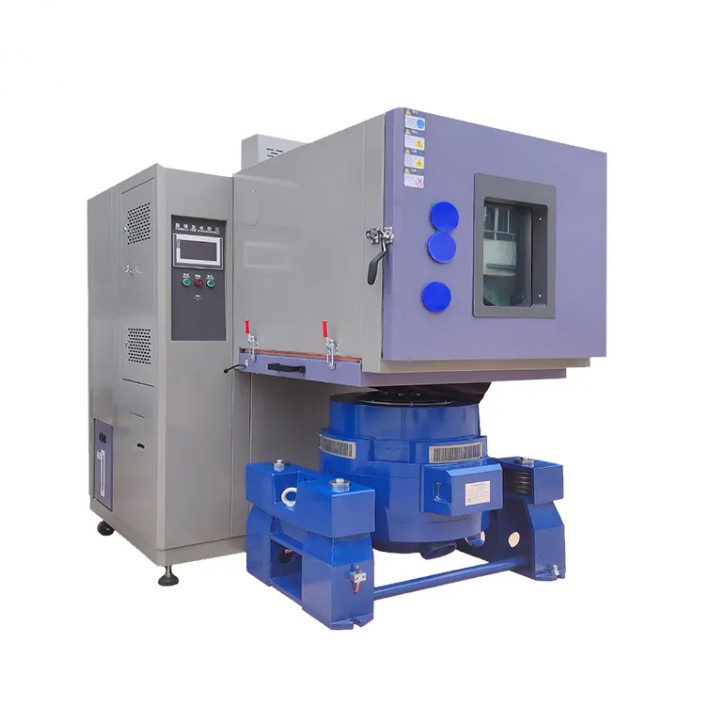

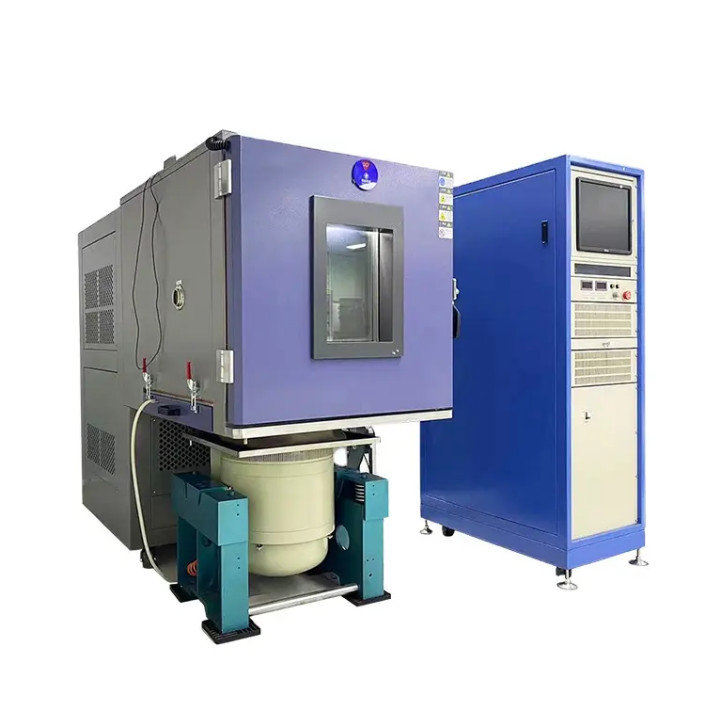

Electronic Environmental Vibration Climate Test System For Comprehensive Reliability Testing



Product Description:

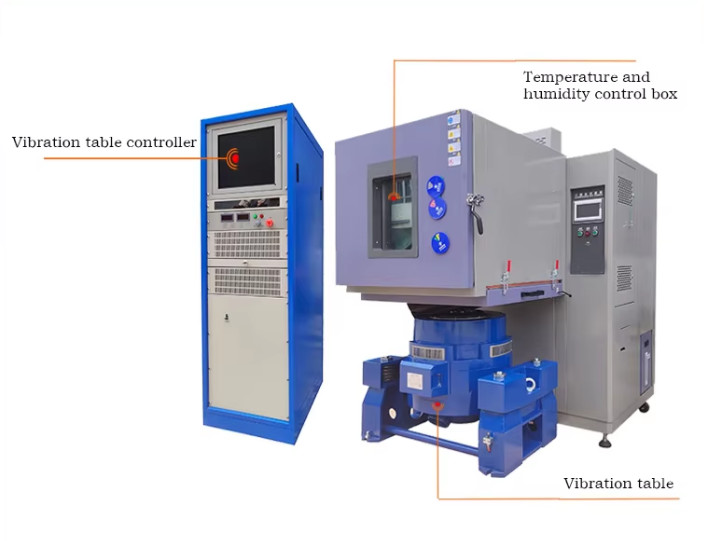

The Electronic Environmental Vibration Test System is a comprehensive solution designed to simulate real-world environmental and mechanical stresses on products. This system combines temperature, humidity, and vibration testing capabilities into a single, versatile platform, making it ideal for evaluating the durability and reliability of components and assemblies under various conditions

Electronic Environmental Vibration Climate Test System For Comprehensive Reliability Testing 0

Electronic Environmental Vibration Climate Test System For Comprehensive Reliability Testing 1



Major Specification:

Item
Specification
Internal chamber dimension (W*D*H)
1000*1000*1000mm
External chamber dimension(W*D*H)
1200*3000*3800mm approx.
Temperature range
-40 ℃~ 150℃
Temperature fluctuation
±0.5℃
Temperature uniformity
2℃
Cooling speed(temp. Range: 85C~-40C)
5℃/min in average; without loading
Heating speed(temp. Range: -40C~85C)
5℃/min in average; without loading
Humidity range
10~98%RH (please refer to the below humidity curve)
Humidity fluctuation
±3%RH
Internal chamber material
SUS#304 stainless steel, mirror finished
External chamber material
Stainless steel with paint spray
Cooling method
Water-cooled

Controller
Programmable control temperature and humidity
Can set different parameter for cyclic test
Insulation material
50mm high density rigid Polyurethane foam

Heater
Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor
German Bock compressor
Refrigerant
Environmental friendly refrigerant R449A/R23
Temperature sensor
PT-100 dry and wet bulb sensor
Observation window
Tempered glass
Testing hole
2 units with diameter 100mm, for cable routing
Sample tray
SUS#304 stainless steel, 2pcs


Safety protection device
Protection for leakage Over-temperature
Compressor over-voltage and overload
Heater short circuit



Company Information:

Dongguan Neide Technology Co. Ltd  located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.



Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.



At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.



This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.



FAQ:

1. What are the specific environmental conditions that this test system can simulate?

This electronic environmental vibration climate test system can simulate a wide - range of conditions. For temperature, it can typically cover from extremely low (such as - 70°C) to high temperatures (up to 150°C or more, depending on the model). In terms of humidity, it can simulate levels from very low (e.g., 10%RH) to high humidity (up to 98%RH). It can also generate various vibration frequencies and amplitudes to mimic different real - world mechanical vibration scenarios, like those in transportation or industrial operations.



2. What kind of after - sales service and support do you offer?

We provide comprehensive after - sales service. Our technical support team is available 24/7 to answer any questions or solve any problems you may encounter during the use of the system. We offer regular maintenance services to ensure the system's performance and accuracy. In addition, we provide software updates to improve the functionality of the system and adapt to new testing requirements. If there are any hardware failures, we will dispatch technicians to your site as soon as possible to repair or replace the components.

3. Is the system's software easy to operate and does it have data recording and analysis functions?
The software equipped with the system has a user - friendly operation interface and is easy to get started with. Operators can easily set test parameters, start and stop the test, etc. At the same time, the software has powerful data recording and analysis functions. It can record various data during the test process in real - time and generate intuitive charts and reports, facilitating users to conduct in - depth analysis and evaluation of the test results.

4. In complex multi - factor test scenarios, how does the system ensure the independent and accurate control of each environmental factor without interference between them?
Our system adopts advanced control algorithms and independent control modules for each environmental factor. For example, the temperature control module uses a PID (Proportional - Integral - Derivative) algorithm to precisely adjust the heating and cooling systems, isolating it from the humidity and vibration control processes. Humidity is regulated through a dedicated humidity - generation and - removal mechanism with its own feedback loop. The vibration control system operates on a separate power and signal path, ensuring that the electromagnetic and mechanical effects of vibration do not impact temperature and humidity control. This modular and algorithm - based approach guarantees the independent and accurate control of each factor.
