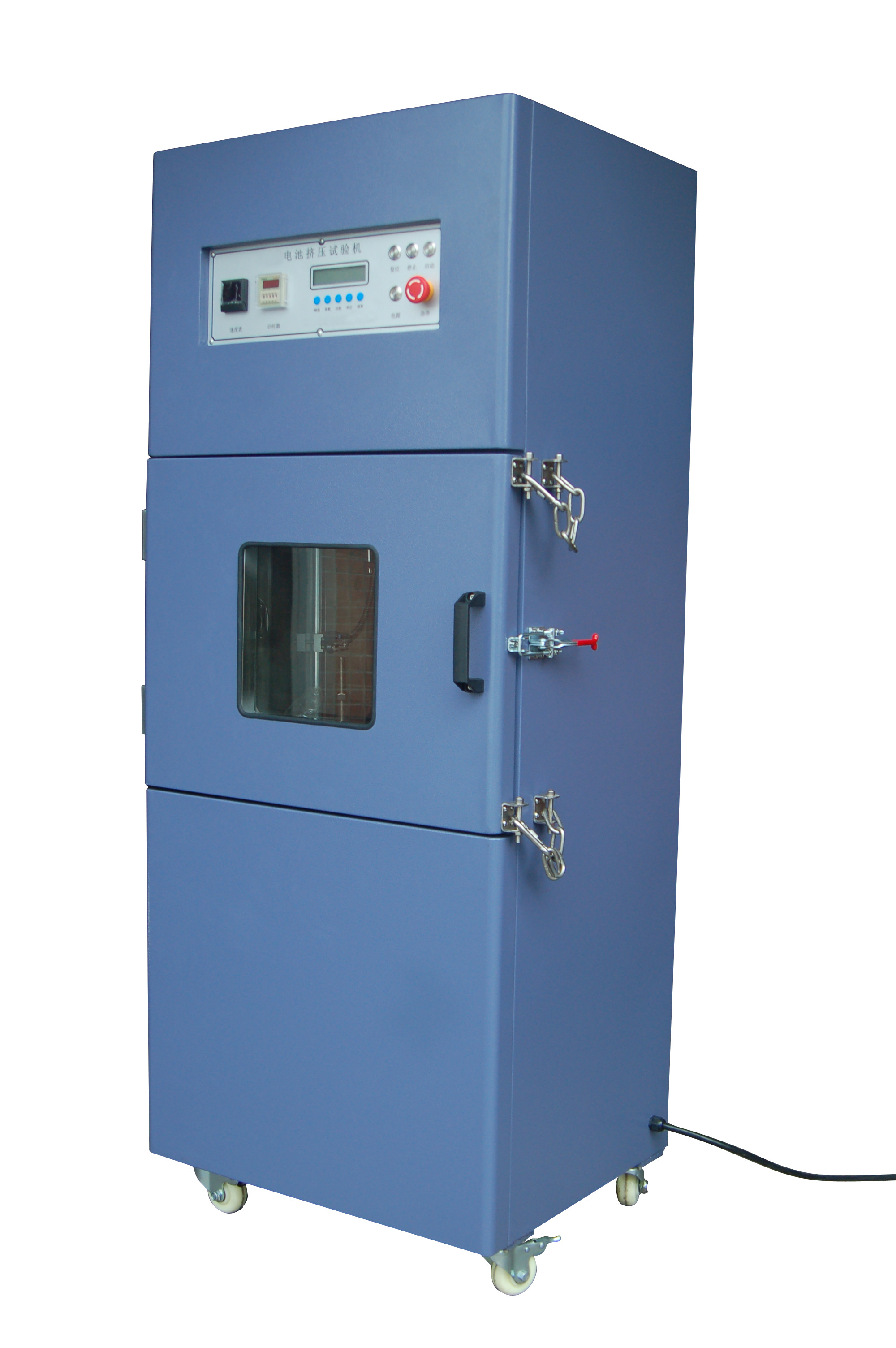

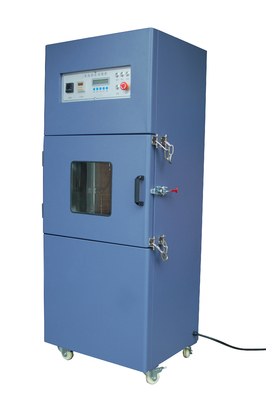

SUS304 Security Battery Needle Testing Machine Battery Simulate Testing Equipment

Place of Origin	China
Brand Name	Neide
Certification	CE
Model Number	ND-NT225
Minimum Order Quantity	1 set
Price	negotiate
Packaging Details	Wooden Case Packing
Delivery Time	7-15 work days
Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability	200 sets per month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Internal Dimension	420×450×460 W×D×H (mm), Can Customized	External Dimension	About 750×680×1730 W×H×D (mm) , Can Customized
Weight	260kg	Force Range	1~20kN
Power Supply	AC220V; 20A	Brand	Neide
Customized	Welcome	Factory	Yes
Customer	More Than 500+	Material	SUS304 Or Customized
After-sales Service	Yes	Transportation	By Sea
Reply For Probme	Within 24 Hours
Highlight	Security Battery Needle Testing Machine , SUS304 Battery Simulate Testing Equipment

Leave a Message

Product Description

Battery Simulate Testing Equipment Security Battery Needle Performance Test Chamber

Product Decription:

This test is applicable to simulating situations where various types of batteries are squeezed or punctured when they are in use, during transportation, storage, or when handling household waste. Batteries are considered qualified if they do not explode or catch fire.

Major Test method description:

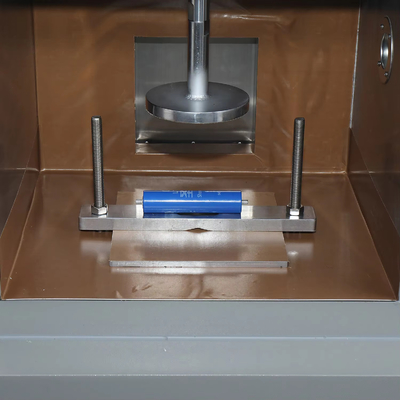

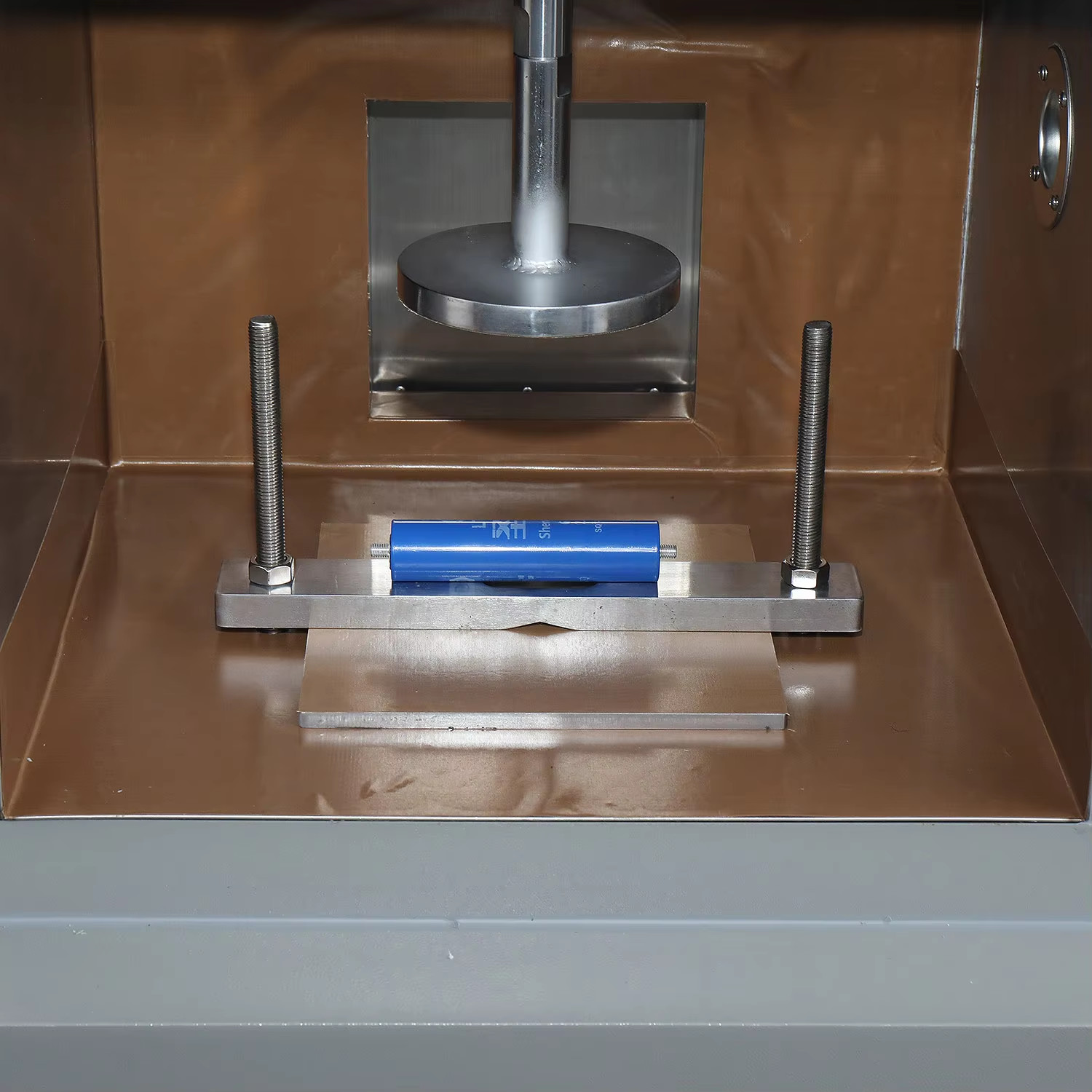

The test should be carried out at an ambient temperature of 20 °C ± 5 °C. Place the fully charged battery between two flat surfaces and apply a compressive force of 13 KN ± 0.78 KN perpendicular to the plate direction to squeeze the battery. Once the pressure reaches the maximum value, the squeezing test can be stopped. During the test, there shall be no external short circuit of the battery. The tested battery is considered qualified if it does not explode or catch fire.
1). For cylindrical batteries, the longitudinal axis of the battery being squeezed should be parallel to the two flat plates of the squeezing device.
2). For prismatic and pouch batteries, the squeezing test shall only be conducted on the wide surfaces of the batteries.
3). For coin-type or button-type batteries, the squeezing test shall be carried out with the upper and lower planes of the battery parallel to the flat plates.

Major Specification

Internal dimension	420450460 WDH (mm), can customized
External dimension	About 7506801730 WHD (mm) , can customized
Weight	260kg
Steel Needle	φ2mm~φ8mm High Temperature Resistant Steel Needle,the Length is 100mm (Can be Specified)
Force Range	1~20kN
Power Supply	AC220V; 20A
Performance Index

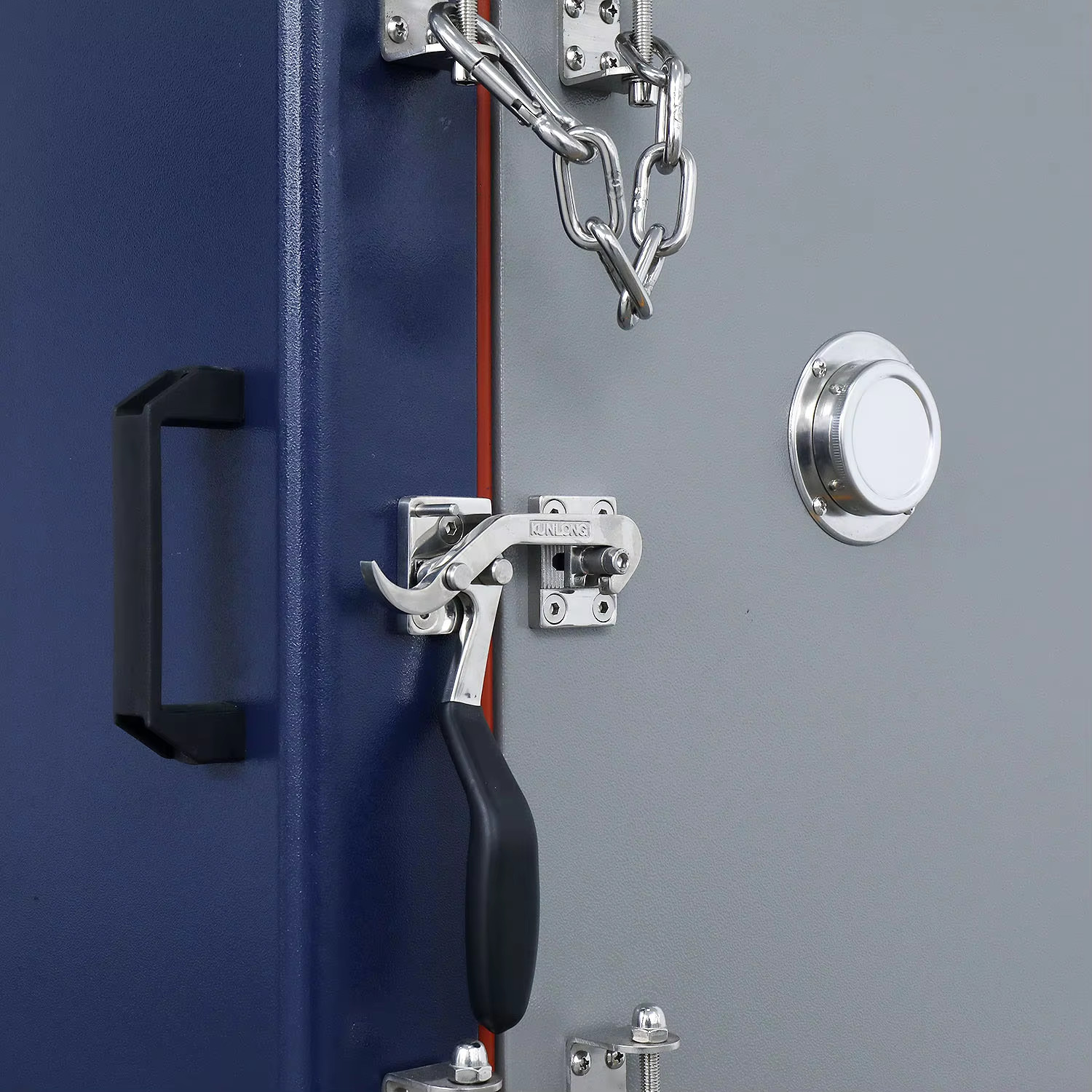

Chamber door	single open door anti-explosion transparent window window floodlight
Lead test hole	Test hole: Φ50mm; A test hole with a diameter of 50 mm on the left side of the equipment, for inserting the collection wires for temperature, voltage, current, etc

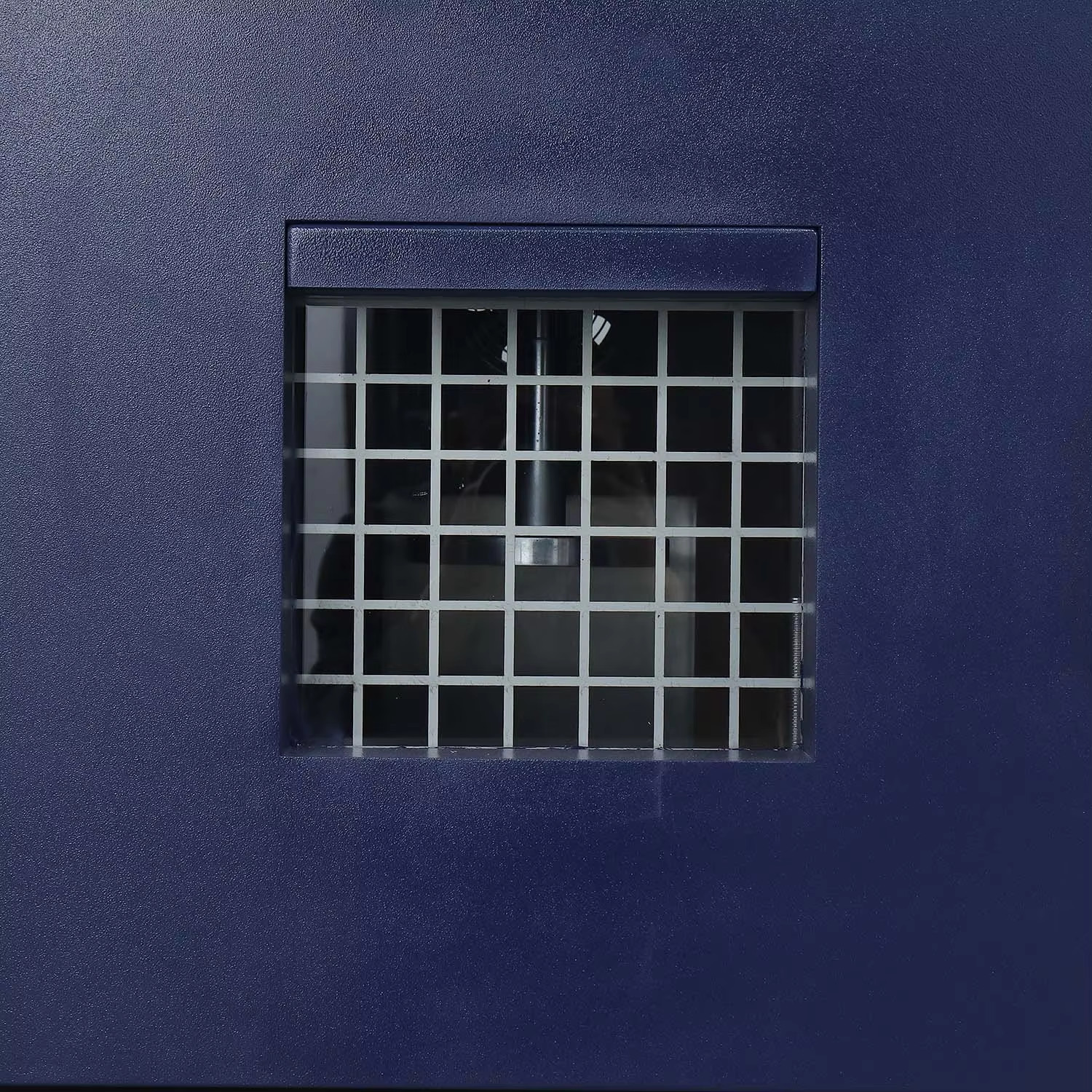

Observation window	installed in the door,
Equipment List ；
Main body of the testing machine: 1 set Standard extrusion fixture: 1 set Product instruction manual: 1 copy


Company Information:

Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.

Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.

At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.

This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries

FAQ:

1. How to choose the most suitable Mechanical Equipment ?

Our team will give you the suggestion based on you need and the required specification.

2.What’s the delivery term?
At most of time, we have stock in the factory. If no stock available, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

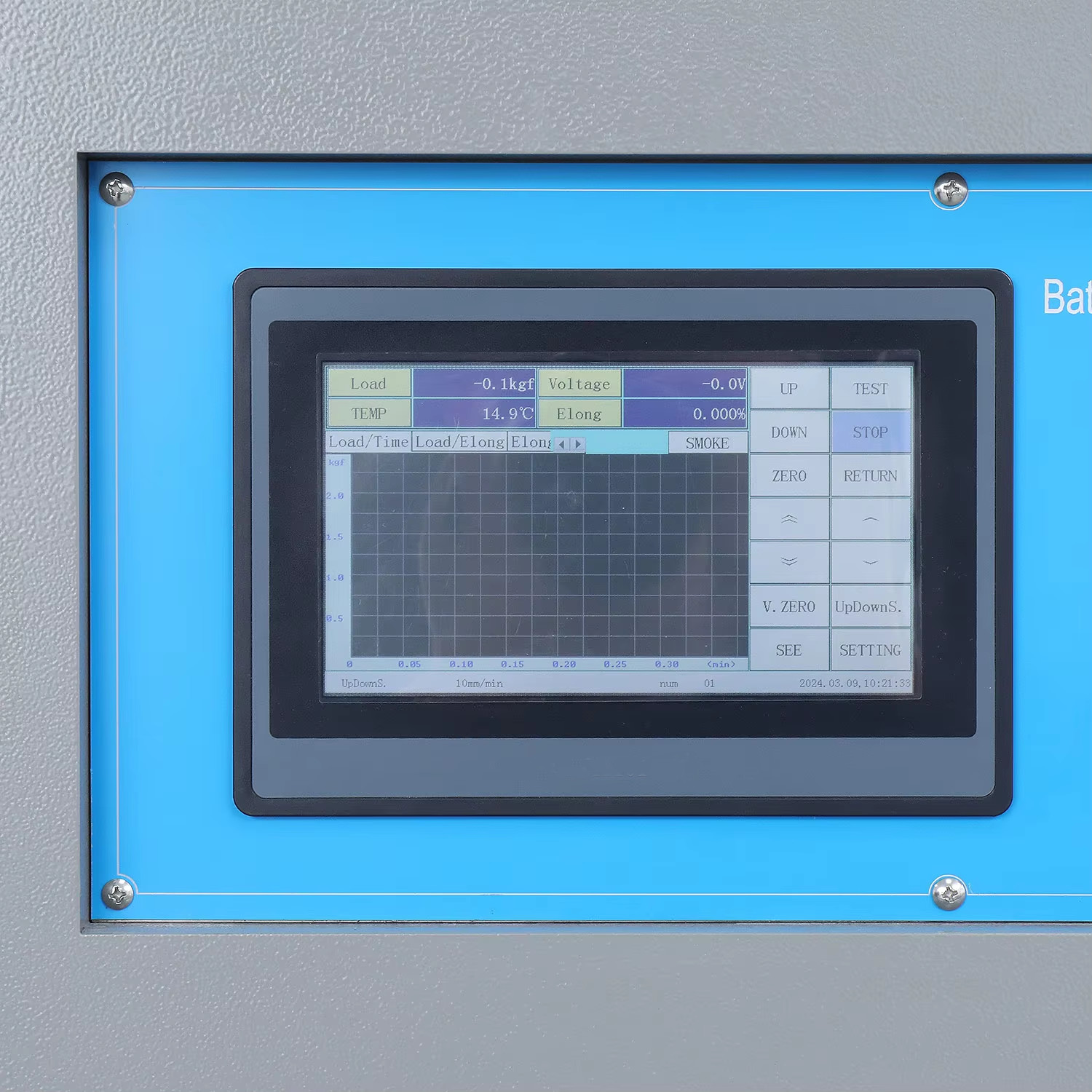

3.The display shows monitoring of voltage and temperature. Are the necessary cables for these measurements included? Also, is it possible to export the data via USB or to a PC?
Yes, cables are included. All necessary parts are included. It's ok to export the date via USB or to a PC for touch screen series, not for button series

4. Can the machine be operated remotely using a PC, handheld remote, or other methods?

Yes, there are three ways to achieve remote control:

1. Make a separate control cabinet, but there are distance limitations(The standard distance is 3 meters, and it can be extended as required).

2. Computer control (the computer can be placed in the adjacent room).

3. Remote control. The limitation is that while remote control enables remote operation, it cannot directly set the parameters on the screen.

5. Can the machine operate with 110V power?

Yes, 110V is fine to suport by adding a small 110V transformer.

6. How about your warranty?
Generally,our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.

7. How about the packing for chamber, is it safely protected during transportation?
Our chambers is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
