220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber

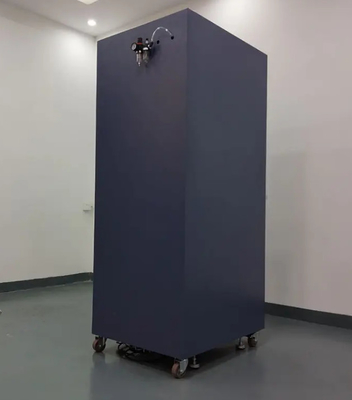

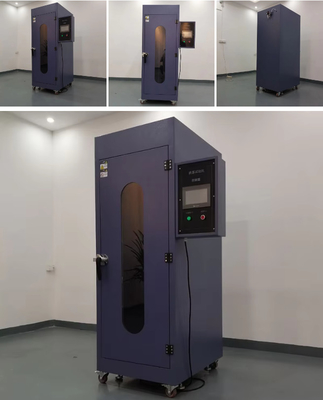

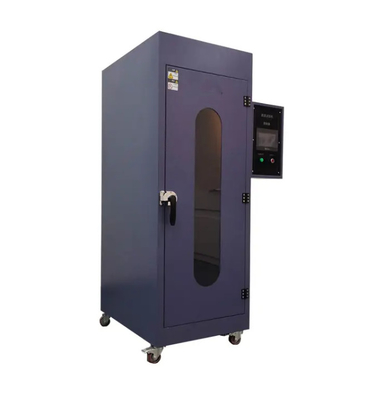

  • 220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber
  • 220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber
  • 220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber
  • 220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber
Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-O209
Document Neide catalogue.pdf
Minimum Order Quantity 1 set
Price negotiate
Packaging Details Wooden Case Packing
Delivery Time 7-15 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 200 sets per month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 3KW Voltage 220V, 380V
Warranty 1 Year Customized Support OEM, ODM
Brand Neide Customized Welcome
Factory Yes Customer More Than 500+
Material SUS304 Or Customized After-sales Service Yes
Transportation By Sea Reply For Probme Within 24 Hours
Highlight

Laboratory Li Ion Battery Drop Tester

,

220V Li Ion Battery Drop Tester
Leave a Message
Product Description

220V Laboratory Li-ion Battery Drop Tester With PLC Touch Screen Test Chamber



Product Decription:


This testing machine is specifically designed for conducting free - fall tests on small consumer electronic products and their components, including mobile phones (cell phones), cell phone lithium - ion batteries, walkie - talkies, electronic dictionaries, building intercom phones, CD/MD/MP3 players, and more.


Features

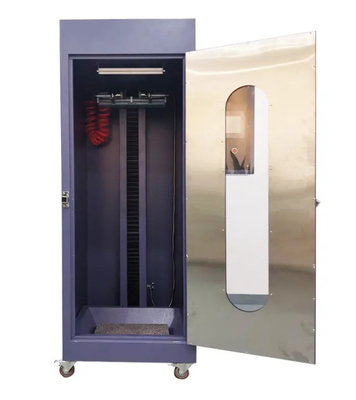

  1. Pneumatic Structure: The machine is equipped with a pneumatic mechanism. The test sample is placed in a customized fixture with an adjustable stroke and securely clamped. Once the drop button is pressed, the cylinder releases, allowing the test sample to experience a free - fall motion.
  2. Adjustable Drop Height: The drop height can be adjusted vertically. A scale is attached to the device, enabling users to accurately determine the drop height of the test sample. This adjustability ensures that the machine can accommodate various test requirements.
  3. Versatile Drop Floors: A wide range of drop floors is available for selection. This variety allows the machine to meet different test standards, providing flexibility and adaptability for different types of free - fall tests. Whether it's for evaluating the impact resistance of delicate electronic components or the durability of finished products, the machine can be configured to suit specific testing needs.



Major Parameter:

Model
ND-O209
Drop height
300-1500 mm, adjustable
Test method
Face, edge, corner drop in all directions
Test load
0~3kg
Acceptable max. sample size
W200*D200*H200 mm
Falling floor medium
A3 steel plate (Acrylic plate, marble plate, wood board for choice)
Drop panel size
W600*D700*H10 mm (Solid steel plate)
Machine weight
About 250kg
Machine size
W700*D900*H1800 mm
Motor power
0.75KW
Drop method
Pneumatic drop
Lifting method
Electric lifting
Power supply
220V 50Hz
Safety device
Fully enclosed explosion-proof device
Air pressure
<1mpa
Control display mode
PLC touch screen


220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber 0



Hot-Sale Products:

220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber 1 220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber 2 220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber 3

220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber 4 220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber 5 220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber 6

220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber 7 220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber 8 220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber 9

220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber 10 220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber 11 220V Laboratory Li Ion Battery Drop Tester With PLC Touch Screen Test Chamber 12

Company Information:

Dongguan Neide Technology Co. Ltd  located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.



    Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.



   At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.



    This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries


FAQ:

1. How does the drop tester ensure consistent and repeatable drop conditions for accurate battery performance evaluation?

The Li - ion Battery Drop Tester is equipped with a highly precise positioning and release mechanism. The positioning system uses advanced sensors, such as linear encoders, to accurately place the battery at the desired drop height. The release mechanism is designed to have minimal variability in the release time and force. It operates on a pneumatic or electromagnetic principle, which can be precisely controlled. For example, in a pneumatic - released system, the air pressure is regulated to ensure a consistent and rapid release of the battery, minimizing any initial velocity variations. This results in consistent drop conditions across multiple tests, allowing for accurate and reliable evaluation of the battery's performance under impact.

2. Given that lithium - ion batteries have different chemistries and physical structures, how adaptable is the drop tester in terms of accommodating various battery sizes and types?

Our drop tester comes with a set of adjustable fixtures. These fixtures can be easily reconfigured to hold batteries of different sizes and shapes. For example, the clamping mechanisms can be adjusted to fit cylindrical, prismatic, and pouch - type lithium - ion batteries. The fixture's contact points are designed to be non - conductive and non - abrasive to prevent any damage to the battery's outer casing and electrical connections. Additionally, the drop tester's software allows for custom - setting of test parameters based on the specific characteristics of different battery chemistries. This adaptability ensures that the tester can be used for a wide range of lithium - ion batteries, from small - capacity batteries in wearable devices to large - capacity batteries used in electric vehicles.

3.In terms of long - term reliability and accuracy, how does the drop tester maintain its performance over time, and what maintenance procedures are recommended?
The drop tester is constructed using high - quality components with long - term stability. The mechanical parts, such as the release mechanism and the positioning system, are made of durable materials and are designed to have low wear and tear. Regular calibration of the sensors is recommended at least once a month. This calibration ensures that the measured values of acceleration, force, and drop height remain accurate. The software should also be updated regularly to improve functionality and compatibility. Additionally, the pneumatic or electrical systems should be inspected periodically for any signs of leakage or malfunction. Lubrication of moving parts, such as the guide rails and the release mechanism's joints, should be carried out according to the manufacturer's instructions to maintain smooth operation.

4. In the context of safety, especially considering the potential for battery failure or explosion during a drop test, what safety features does the drop tester have?
The drop tester is enclosed within a robust safety chamber made of high - strength, explosion - resistant materials, such as thick - walled polycarbonate or reinforced steel. The chamber has a ventilation system to dissipate any potentially harmful gases in case of battery failure. It also has built - in sensors to detect abnormal conditions, such as overheating, gas leakage, or electrical short - circuits. Once such conditions are detected, the tester immediately stops the test, activates an alarm, and can be configured to automatically cut off power to the equipment. Additionally, there are emergency stop buttons located at easily accessible positions around the tester for immediate manual intervention in case of an emergency.
