1000L Battery Overcharge Explosion Proof Tester 380V Battery Testing Equipment

  • 1000L Battery Overcharge Explosion Proof Tester 380V Battery Testing Equipment
  • 1000L Battery Overcharge Explosion Proof Tester 380V Battery Testing Equipment
  • 1000L Battery Overcharge Explosion Proof Tester 380V Battery Testing Equipment
  • 1000L Battery Overcharge Explosion Proof Tester 380V Battery Testing Equipment
Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-B201-1000
Document Neide catalogue.pdf
Minimum Order Quantity 1 set
Price negotiate
Packaging Details Wooden Case Packing
Delivery Time 7-15 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 200 sets per month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 8KW Voltage 380V
Temperature Range -70℃~150℃ Humidity Range 20%~98%
Temperature Fluctuation ±0.5℃ Temperature Accuracy 0.01℃
Refrigerator France Tecumseh Compressor Operation Panel Programmable LCD Touch Screen
Power Supply AC220V/AC380V Brand Neide
Customized Welcome Factory Yes
Customer More Than 500+ Material SUS304 Or Customized
After-sales Service Yes Transportation By Sea
Reply For Probme Within 24 Hours
Highlight

1000L Battery Overcharge Explosion Proof Tester

,

380V Battery Overcharge Tester Machine
Leave a Message
Product Description

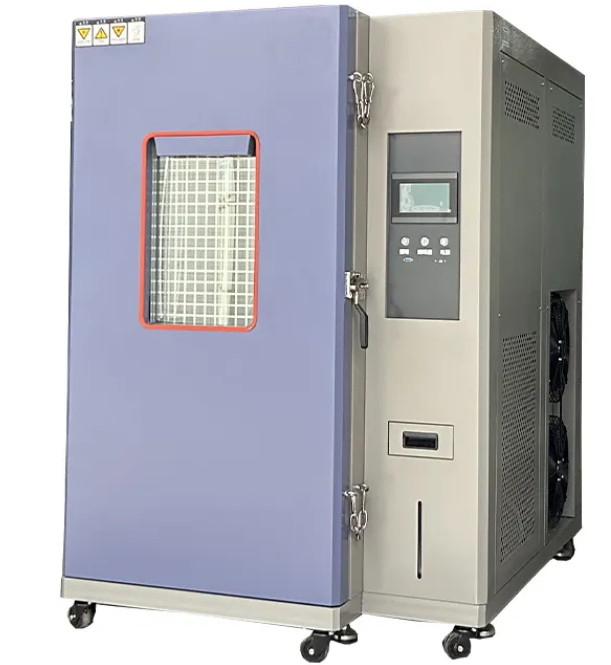

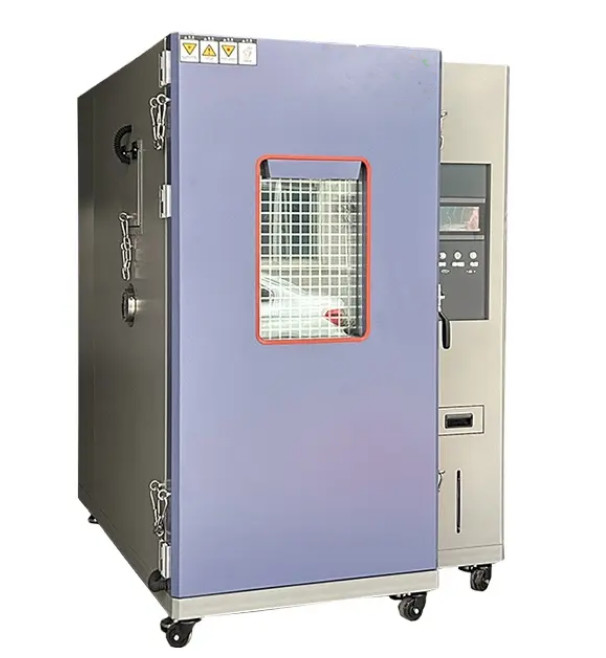

 Battery Overcharge Explosion-Proof Test Machine



Product Decription:

The Battery Overcharge Explosion-Proof Test Machine is a specialized device designed to evaluate the safety and reliability of lithium-ion batteries and other battery types under extreme overcharge and overdischarge conditions. This machine is essential for ensuring compliance with international safety standards and for protecting operators and equipment from potential hazards such as explosions or fires.

Key Features and Benefits

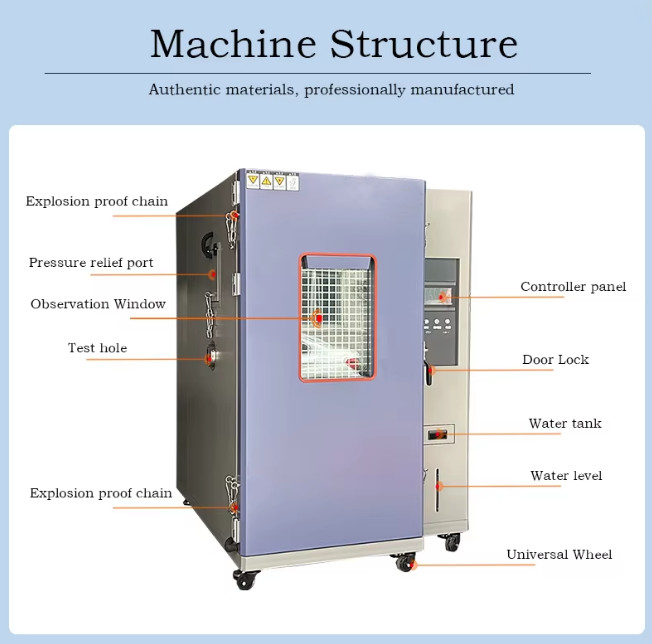

  1. Explosion-Proof Design:

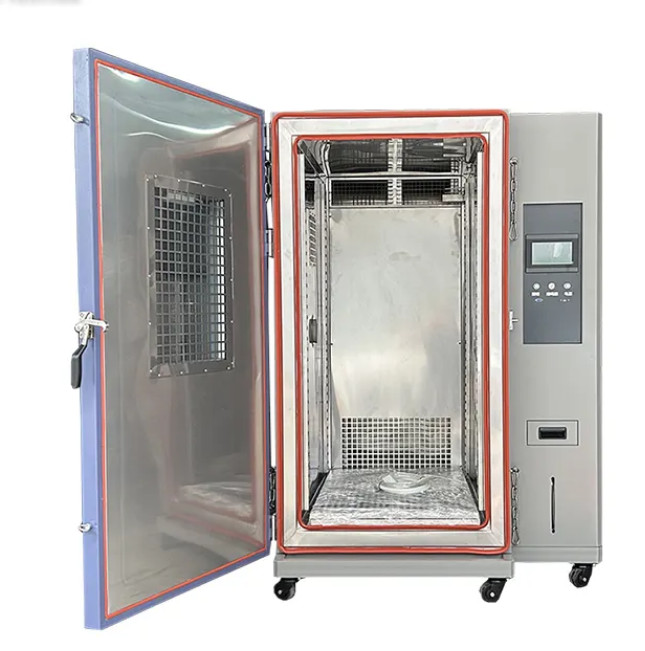

    • Constructed with a robust steel exterior and stainless steel interior (SUS#304 or SUS#201), the machine is designed to contain explosions and prevent damage.
    • Equipped with explosion-proof chains and a pressure relief port to safely release shock waves in case of an explosion.
  2. Safety and Protection:
    • Features a safety pressure relief port (W150×H150mm) and a smoke exhaust port (φ150mm) to vent hazardous gases.
    • Includes a double-layer explosion-proof glass window for safe observation of tests.
  3. Customizable and Versatile:
    • Available in various sizes and configurations, with internal dimensions ranging from 300mm×300mm×300mm to 500mm×500mm×500mm.
    • Supports multiple test chambers for simultaneous testing, enhancing efficiency.
  4. Advanced Testing Capabilities:
    • Complies with international standards such as IEC 62133, UN 38.3, GB 31241-2014, and UL 2054.
    • Equipped with a DC test cable lead-in hole (φ50mm) for connecting external charge-discharge testers.




Major Parameter:

Model
ND-B201-1000
Internal dimension W×H×Dmm
1000*1000*1000
External dimension W×H×Dmm
1200*2050*1780
Volume
1000L
Weight
850kg
Test area load- capacity
100KG
Performance
Temperature range
-70～＋100℃ (+150℃/+180℃)
Temperature fluctuation
±0.3°C
Temperature deviation
1.5°C
Temperature change speed
Heating rate:3.0°C/min Cooling rate :2.0°C/min
Extreme temperature reach time
Heating time :From +20 to +100°C for 30 minutes Cooling time:+20 to -70°C for 60 minutes
Allowed heat load
Test area:+20°C, 1000 W
Configuration
Standard configuration
Explosion-proof chain, Status indicator, Safety door lock, Independent over-temperature protector, Emergency stop, Refrigeration
systems pressure gauge , Customised controller,Cable port x 2, Ethernet interface
Security options
Sample surface temperature probe, Explosion-proof pressure relief port, Water sprinkler, CO2 fire extinguishing device, Electronic
combination lock, Explosion-proof mesh for observation window, Gas monitoring system (H2/CO) GN2 purge, Fireproof coating, Video
monitoring
Structure
External material
1.5mm thick FC high grade electrolytic plate + plastic spraying for corrosion protection
Test area material
1.2mm thick SUS304 stainless steel
Heater
Finned nichrome explosion proof heaters
Refrigeration System
Mechanical Compounding Compression Cooling
Compressor
Scroll / Piston Compressors
Refrigerant
R404A &R23 [R449A&R508B available on request]
Refrigeration Power
10 Kw



1000L Battery Overcharge Explosion Proof Tester 380V Battery Testing Equipment 0

Company Information:





Dongguan Neide Technology Co. Ltd  located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.





    Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.





   At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.





    This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries



FAQ:

1.What specific safety standards does the Battery Overcharge Explosion-Proof Test Machine comply with, and how does it ensure the containment of explosions during testing?

Understanding the compliance with international standards (e.g., IEC 62133, UN 38.3, GB 31241-2014) is crucial for ensuring that the machine meets regulatory requirements. Additionally, knowing how the machine contains explosions will help assess its safety features.
2. Can you provide details on the explosion-proof design, particularly the materials used and the construction of the chamber?
The robustness of the explosion-proof design is essential for operator safety. Understanding the materials (e.g., stainless steel, Teflon lining) and construction details (e.g., thickness, pressure relief mechanisms) will help evaluate the durability and reliability of the machine.
3.What customization options are available for the test chamber, such as size, internal dimensions, and the number of test compartments?
Customization options are important for adapting the machine to specific testing needs. Knowing the range of available sizes and configurations will help determine if the machine can meet my unique requirements.
4. Can the machine be integrated with external charge-discharge testers, and what are the connectivity options available?
Integration with external equipment is important for comprehensive testing. Understanding the connectivity options (e.g., DC test cable lead-in holes) will help ensure seamless operation.
