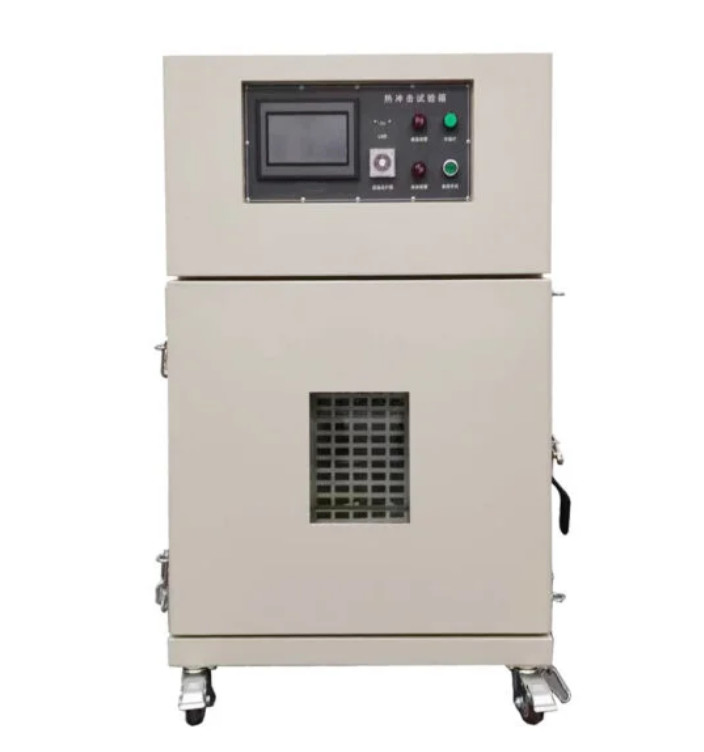

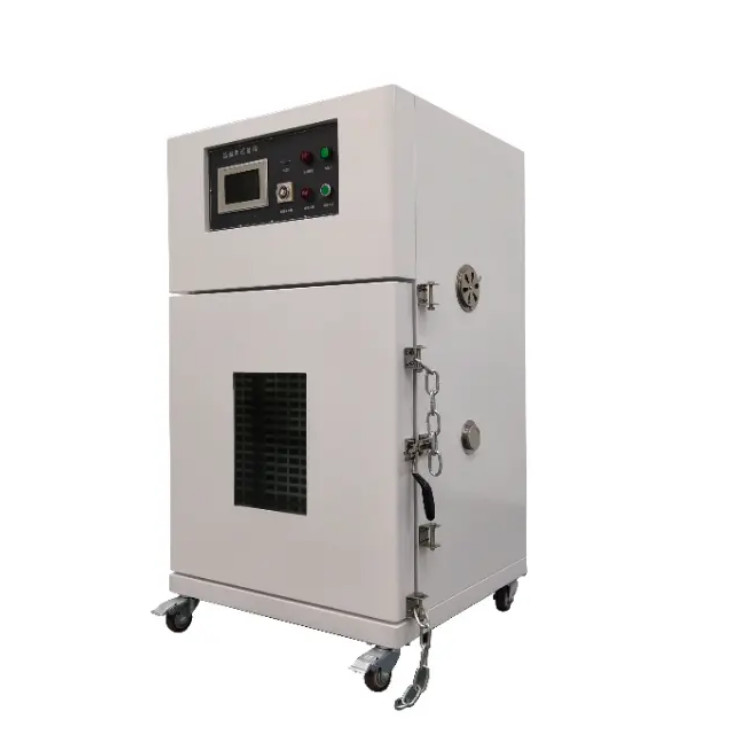

Thermal Abuse Test Chamber Lithium Battery Thermal Shock Test Chamber

Thermal Abuse Test Chamber Lithium Battery Thermal Shock Test Chamber

Product Decription:

Furthermore, it serves as an essential tool for quality management. The data obtained from the tests conducted using this equipment enables manufacturers to identify potential weaknesses in their products, optimize production processes, and ensure that the final products meet the highest quality standards. Whether it's for research and development purposes or for routine quality control in mass production, the Thermal Shock Test Chamber (Thermal Abuse) series provides invaluable insights and contributes significantly to enhancing product reliability and performance in diverse industries.

Meet the Standard:

GB 31241-2014 UN 38.3 MT/T 1051-2007 SJ/T 11169-1998(UL1642:1995) YD 1268-2003

GB/T 19521.11-2005 GB/T 18287-2013 SJ/T 11170-1998 (UL2054:1997) UL 1642

IEC62133-2012 GB/T 8897.4-2008(IEC 60086-4:2007) YDB 032-2009

YD/T 2344.1-2011 GB/T 21966-2008(IEC 62281:2004)

Chamber Structure:

1. Internal dimension: 500 (width) * 600 (depth) * 500 (height) mm;

2. External dimension is about 870 (width) * 720 (depth) * 1370 (height) mm, which is based on the actual object;

3. Control panel: the control panel is installed above the machine;

4. Opening mode: single door is opened from right to left;

5. Available window: with available window on the door, specification W200 * H250mm;

6. Inner material: 430# mirror panel, 1.0mm thick;

7. Outer material: cold rolled steel plate, 1.0mm thick. Powder baking varnish treatment (wrinkles gray);

8. Interlayer: the inner layer is divided into two layers and can be adjusted. The first layer is 100mm from the bottom, and the above layer is divided equally, with 2 pieces of screen plates;

9. Insulation material: high temperature rock wool, good insulation effect;

10. The sealing material is: high temperature resistant foaming silica gel strip;

11. Test hole: one test hole is opened on the right side of the machine, with an aperture of 50mm;

12. The machine is equipped with movable casters and adjustable fixed foot cups for easy movement and fixed position.

Company Information:

Dongguan Neide Technology Co. Ltd  located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.

    Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.

   At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.

    This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries

FAQ:

1. When the battery thermal shock test chamber performs rapid high - low temperature switching, how long does it take for the temperature to recover? This is crucial for me to evaluate the performance response speed of the battery under rapid temperature changes.

After the battery thermal shock test chamber completes the high - low temperature switching, the time for the temperature to recover to the set value is usually within 1 - 2 minutes. This benefits from its efficient refrigeration and heating system and good insulation design of the chamber. The rapid temperature recovery can more realistically simulate the rapid temperature change scenarios that the battery encounters in actual use, allowing you to accurately evaluate the performance response speed of the battery in such situations, ensuring that your test results can accurately reflect the performance of the battery in practical applications.

2. My company manufactures batteries for consumer electronics products. How much can these two devices contribute to shortening the product R & D cycle?

 These two devices can significantly shorten the R & D cycle. The thermal abuse test chamber can quickly expose the design defects of batteries under extreme thermal conditions, avoiding problems in subsequent large - scale production and saving time and cost. For example, in the past, it might have taken months of actual use monitoring to discover battery thermal stability issues, but now it can be tested and the problem can be located within a few days using this device. The battery thermal shock test chamber can accelerate the simulation of the temperature changes of the battery in actual use, allowing you to evaluate the reliability of different design schemes more quickly. By testing multiple schemes in parallel, the original R & D cycle that might have taken a year is now expected to be shortened to about half a year, enabling your products to be brought to market faster.

3. Are the maintenance of these two devices complex? What is the approximate proportion of the maintenance cost to the equipment procurement cost?

The design of the equipment fully takes into account the convenience of maintenance. Daily maintenance mainly includes simple operations such as regularly cleaning the condenser and checking the calibration of the temperature sensor. We will provide detailed maintenance manuals and training videos to help your staff get started easily. In terms of maintenance costs, the annual maintenance cost accounts for approximately 6% - 10% of the equipment procurement cost. This mainly covers the replacement of vulnerable parts, such as heating elements and consumable parts of the refrigeration compressor. Since we use high - quality components, the replacement cycle is relatively long, further reducing the maintenance cost.
