New Energy Battery Temperature Cycling Test Chamber Battery Explosion Proof Tester
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Temperature Range | -70℃~+150℃ |
|---|---|---|---|
| Humidity Range | 20%~98%R.H | Temperature Fluctuation | ±0.5 ℃ |
| Temperature Uniformity | ≤2.0℃ | Humidity Fluctuations | ±2.0%R.H |
| Internal Dimensions | 1000mm*1000mm*1000mm (W*H* D*) | External Dimensions | 1250mm*2066mm*1910mm (W*H* D*) |
| Brand | Neide | Customized | Welcome |
| Factory | Yes | Customer | More Than 500+ |
| Material | SUS304 Or Customized | After-sales Service | Yes |
| Transportation | By Sea | Reply For Probme | Within 24 Hours |
| Highlight | Battery Temperature Cycling Test Chamber,New Energy Battery Explosion Proof Tester |
||
Product Description

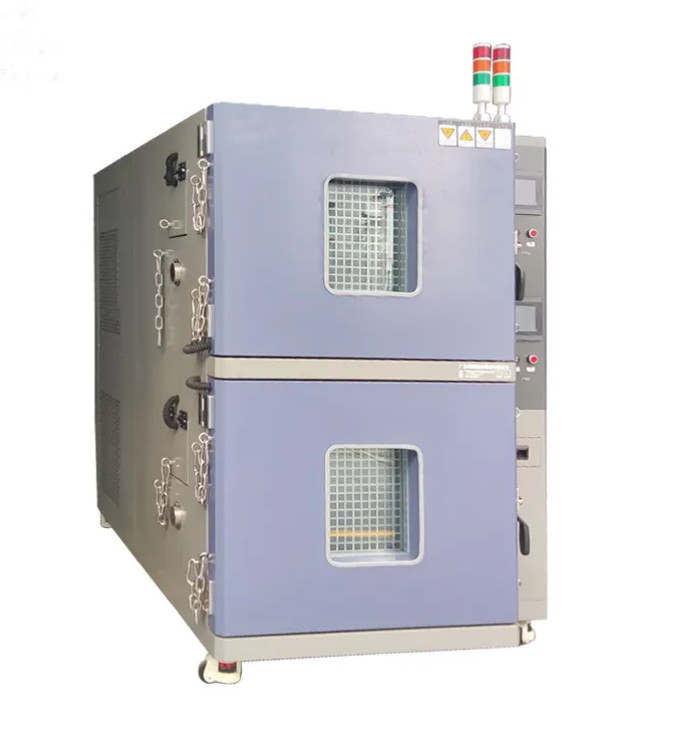

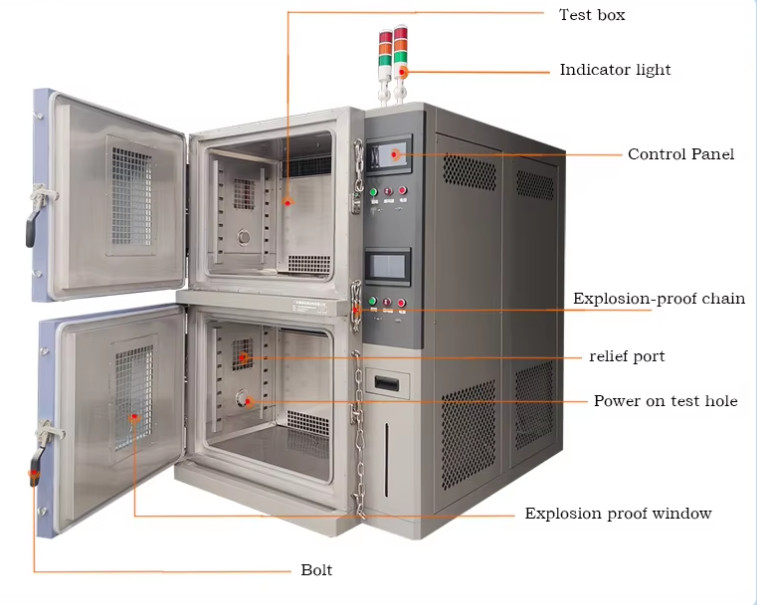

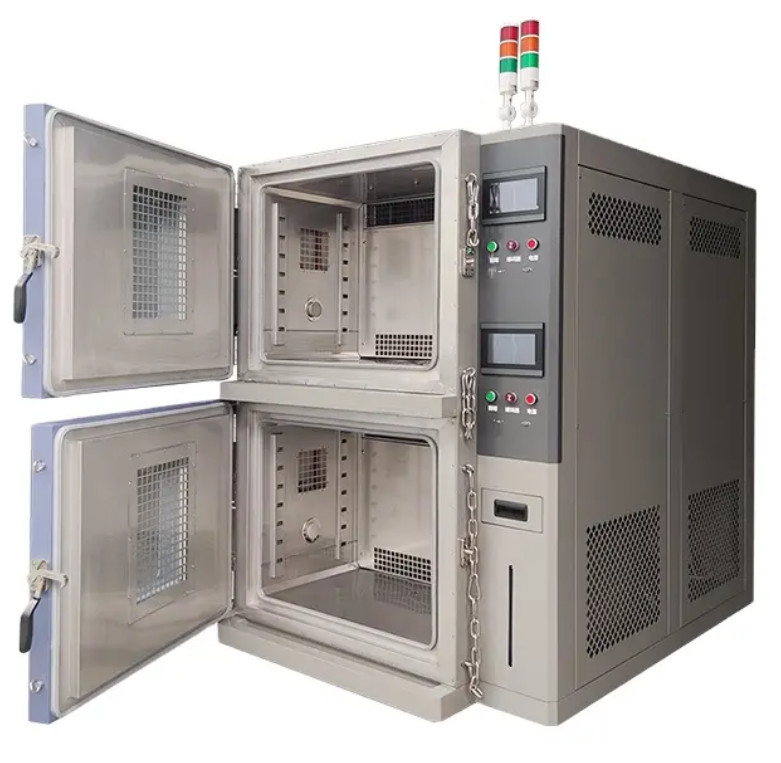

New Energy Battery Temperature Cycling Test Chamber Battery Explosion Proof Tester
Product Overview
Premium battery explosion proof and temperature cycling test chamber designed specifically for new energy batteries. This cutting-edge solution combines essential testing capabilities for battery manufacturers, research institutions, and quality control departments.
Key Specifications
| Attribute | Value |
|---|---|
| Warranty | 1 Year |
| Temperature range | -70℃~+150℃ |
| Humidity range | 20%~98%R.H |
| Temperature fluctuation | ±0.5 ℃ |
| Temperature uniformity | ≤2.0℃ |
| Humidity fluctuations | ±2.0%R.H |
| Internal Dimensions | 1000mm*1000mm*1000mm (W*H*D) |
| External Dimensions | 1250mm*2066mm*1910mm (W*H*D) |
| Brand | Neide |
| Material | SUS304 or customized |
Technical Parameters
| Volume | 1000 liters (can be customized in multiple layers) |
| Power supply | AC380±10%V/50±0.5Hz, three-phase five-wire system |
| Installed power | ≤34KW |
| Heating time | ≥10°C/min (no load; non-linear in the range of -40~85°) |
| Cooling time | ≤10°C/min (no load; non-linear in the range of -40~85°) |
Featured Products
Manufacturer Information
Dongguan Neide Technology Co. Ltd specializes in crafting cutting-edge environmental test chambers and mechanical test machines. Our products meet international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.
Frequently Asked Questions
Can this test chamber accommodate different types of batteries?
Our test chamber is designed to accommodate new energy batteries of various shapes and sizes. We provide adjustable battery fixing devices and can customize fixtures based on your battery specifications to ensure optimal testing conditions.
Is this chamber suitable for different battery chemical systems?
Yes, the chamber is suitable for various chemical systems including lithium-ion, sodium-ion, and lithium-sulfur batteries. Testing parameters can be flexibly adjusted to meet specific requirements for different battery types.
How are key components maintained?
We provide a comprehensive maintenance plan including regular checks of heating elements, cooling systems, and sensor calibration. The chamber includes a self-diagnosis function to alert you to any component abnormalities.
How is test data managed?
The chamber features a powerful data management system that stores, classifies, and filters test data. Data can be exported to common formats like Excel and CSV, with visualization tools for temperature-time and pressure-time curves.
