Multifunctional Battery Short Circuit Tester Machine Safety And Reliability For New Energy

  • Multifunctional Battery Short Circuit Tester Machine Safety And Reliability For New Energy
  • Multifunctional Battery Short Circuit Tester Machine Safety And Reliability For New Energy
  • Multifunctional Battery Short Circuit Tester Machine Safety And Reliability For New Energy
  • Multifunctional Battery Short Circuit Tester Machine Safety And Reliability For New Energy
Place of Origin China
Brand Name Neide
Certification CE
Model Number ND-B229
Document Neide catalogue.pdf
Minimum Order Quantity 1 set
Price negotiate
Packaging Details Wooden Case Packing
Delivery Time 7-15 work days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 200 sets per month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Flame Application Time 0-999.9 Seconds ±0.1 Seconds Test Hole Surface 102mm
The Height Of The Flame 10~75±2mm Ignition Device Automatic Ignition
Power Supply 220V 50Hz Display Mode PLC Touch + Remote Control
Standard UL1642, GB31241-2014 Voltage 220V
Brand Neide Customized Welcome
Factory Yes Customer More Than 500+
Material SUS304 Or Customized After-sales Service Yes
Transportation By Sea Reply For Probme Within 24 Hours
Highlight

Multifunctional Battery Short Circuit Tester

,

220V Battery Short Circuit Tester Machine
Leave a Message
Product Description

Advanced Battery Short Circuit Test Machine Ensuring Safety And Reliability For New Energy And Electronics



Product Decription:

The Constant Temperature Combustion Chamber Battery Equipment Extrusion Tester Impact Box Short Circuit Test Machine is an advanced, multifunctional testing solution designed to simulate various environmental conditions and conduct comprehensive safety tests on lithium-ion batteries and other energy storage devices. This equipment is essential for ensuring compliance with international standards such as UL1642 and GB31241-2014.

Key Features:

  1. Comprehensive Testing Capabilities:
    • The machine integrates multiple testing functions, including extrusion, impact, and short circuit testing, all within a single unit. This multifunctional design allows for a wide range of safety tests to be conducted efficiently.
  2. Advanced Control System:
    • Equipped with an automatic ignition system and a high-precision touch screen interface, the machine ensures precise control over testing parameters. Users can easily monitor and adjust settings such as flame application time (0-999.9 seconds), flame height (10-75mm), and test hole surface (102mm).
  3. Customization and Flexibility:
    • The device supports OEM and ODM services, allowing customers to tailor the machine to their specific requirements. This customization ensures that the equipment meets the unique needs of different industries and applications.
  4. Safety and Compliance:
    • Designed to meet international safety standards such as UL1642 and GB31241-2014, the machine ensures that battery tests are conducted in a safe and compliant manner. This compliance is crucial for industries such as automotive, aerospace, and consumer electronics.
  5. User-Friendly Interface:
    • The touch screen interface with remote control capabilities makes operation straightforward and efficient. Users can easily set up and monitor tests, ensuring consistent and reliable results.

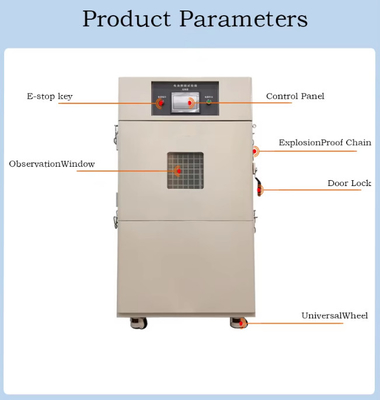

Major Parameter:

Model
ND-B229
Structure
All-in-one structure, the door uses explosion-proof lock and explosion-proof chain
Burner
Bunsen burner with inner diameter of 0.375 inch (9.5mm) and length approx. 100mm
Flame Application Time
99H 59M 59S
Flame Height
*10~75±2mm(Adjustable)
*Mesh should be placed approx. 38mm above the flame (GB31241-2014)
Test Rod Diameter
1/4inch(6.35mm)× 14inch(355.6mm)
Octagon Shape Stainless Steel Mesh Enclosure
Distance between each parallel sides: 24 inches (610mm)
Height: 14 inches (305mm),
Angle iron : spec. 12.7mmX12.7mm
Mesh Top Cover
Square shape with length approx. 650mm
Test Aluminum Mesh Specification
0.010inch (0.25mm) 16 grit x16 grit
Test Round Hole Surface Diameter
102mm
Ignition Device
Automatic ignition
Display Mode
PLC touch + Remote control
Observation window
390x360mm (20mm thick explosion-proof glass, install explosion-proof stainless steel mesh)
Control Method
Remote control, automatic control through the entire test.
Combustion Gas Requirements
High purity liquefied petroleum gas. (Prepared by user)
Data Output
Test data can be output by USB flash disk directly .
Safety Protection
Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop
switch
Options
Temperature acquisition system, voltage acquisition system, video monitoring system

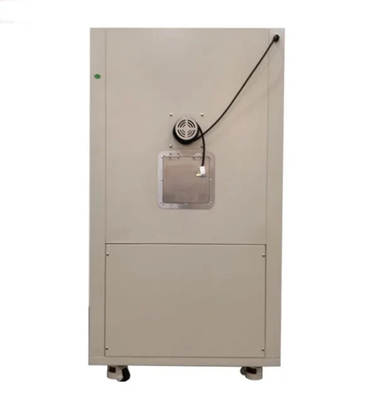

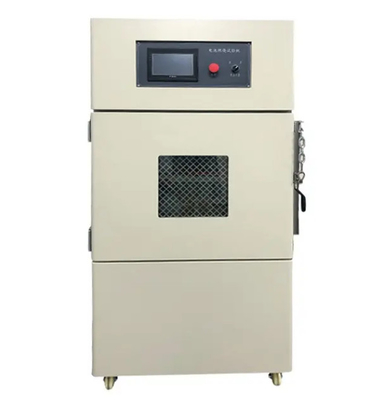

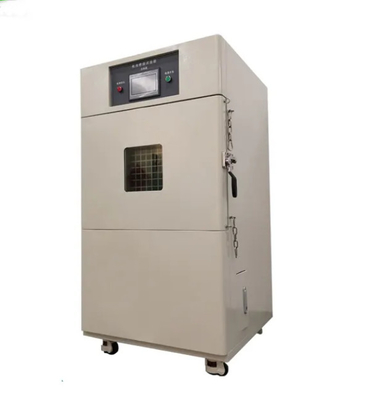

Multifunctional Battery Short Circuit Tester Machine Safety And Reliability For New Energy 0

Multifunctional Battery Short Circuit Tester Machine Safety And Reliability For New Energy 1



Company Information:





Dongguan Neide Technology Co. Ltd  located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.





    Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.





   At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.





    This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries



FAQ:

1. How accurate and precise is the Battery Short Circuit Test Machine in simulating short circuit conditions? Can it provide reliable data for compliance with international standards like UL1642 and GB31241-2014?

The Battery Short Circuit Test Machine is designed to provide highly accurate and precise simulations of short circuit conditions. It features advanced sensors and control systems that ensure consistent and reliable test results. The machine can precisely control parameters such as current load, voltage drop, and temperature rise, which are critical for evaluating battery safety. Additionally, it is calibrated to meet international standards like UL1642 and GB31241-2014, ensuring that your test data is both accurate and compliant.
2. Can the machine be customized to meet specific testing requirements, such as different battery sizes or unique test scenarios?
Yes, the Battery Short Circuit Test Machine is highly customizable. It can be configured to accommodate various battery sizes and types, making it suitable for a wide range of applications. The machine also allows for custom test scenarios, including adjustable current loads, voltage levels, and test durations. This flexibility ensures that you can tailor the machine to your specific testing needs, whether for R&D or quality control.
3. Is the machine compatible with a 220V, 50Hz power supply, and can it be used in different regions with varying power standards?
Yes, the Battery Short Circuit Test Machine is designed to operate on a 220V, 50Hz power supply, making it suitable for use in various regions. The machine's power system is designed to be versatile and can accommodate different power standards, ensuring that it can be used globally with minimal adjustments.
