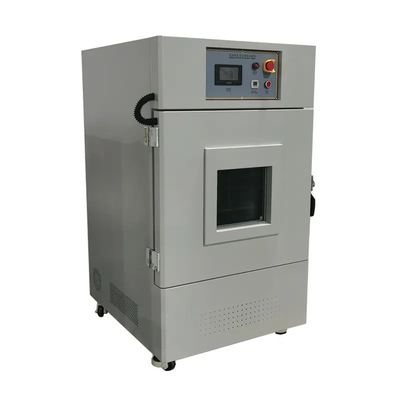

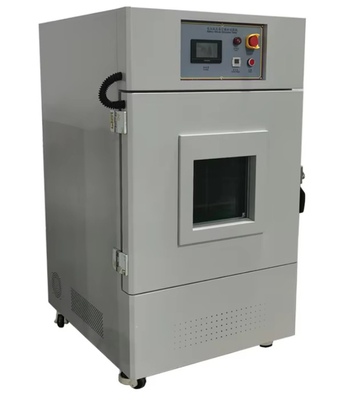

Battery Low Voltage High Altitude Simulation Testing Machine With Precision Control Systems

Place of Origin	China
Brand Name	Neide
Certification	CE
Model Number	ND-B2208
Document	Neide catalogue.pdf
Minimum Order Quantity	1 set
Price	negotiate
Packaging Details	Wooden Case Packing
Delivery Time	7-15 work days
Payment Terms	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability	200 sets per month

Contact me for free samples and coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Brand	Neide	Customized	Welcome
Factory	Yes	Customer	More Than 500+
Material	SUS304 Or Customized	After-sales Service	Yes
Transportation	By Sea	Reply For Probme	Within 24 Hours
Highlight	Battery High Altitude Simulation Testing Machine , Low Voltage High Altitude Simulation Chamber , Precision Control High Altitude Simulation Chamber

Leave a Message

Product Description

Battery Low-Voltage High-Altitude Simulation Testing Machine

Product Decription:

The Battery Low - Pressure High - Altitude Simulation Test Chamber is a specialized device designed specifically for conducting high - altitude low - pressure (simulating high - altitude conditions) tests on batteries.

During the test, when the battery under test is subjected to a negative pressure of 11.6 kPa (1.68 psi), it must meet strict safety requirements. Specifically, the tested battery should not explode, catch fire, emit smoke, or experience any leakage. This ensures the safety and reliability of batteries under simulated high - altitude environments, which are crucial for applications such as aerospace and certain outdoor - oriented electronic devices.

The equipment is equipped with advanced control systems. It can automatically regulate the test duration; for instance, it can be set to run a test for 6 hours. Throughout the entire test process, it continuously monitors the air pressure changes inside the chamber. Once the pre - set test conditions are met or the specified test time has elapsed, the test chamber is designed to automatically terminate the test. This automated operation not only improves testing efficiency but also reduces the potential for human error, providing consistent and accurate test results for battery manufacturers and researchers.

Battery Low Voltage High Altitude Simulation Testing Machine With Precision Control Systems 0

Specification:

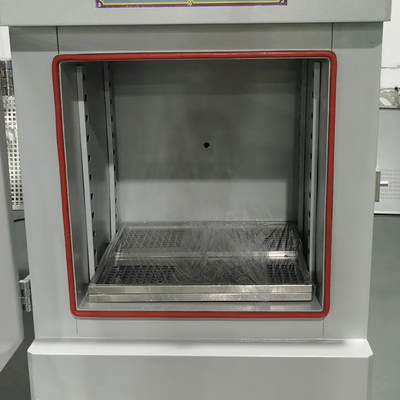

			1. Inner box material

			SUS304# first class stainless steel, thickness 6mm, and welded square pipe reinforcement

			2. Outer box material

			Cold rolled steel plate high temperature paint treatment

			3. Pressure range

			0 ~ 101KPa, commonly used test pressure 11.6KPa;

			4. Pressure error

			±2Kpa

			5. Inner box size

			W600*D600*H600mm

			6. Outer box size

			About W92*D97*H149mm

			7. Storage partition material

			SUS304# First class stainless steel round rod

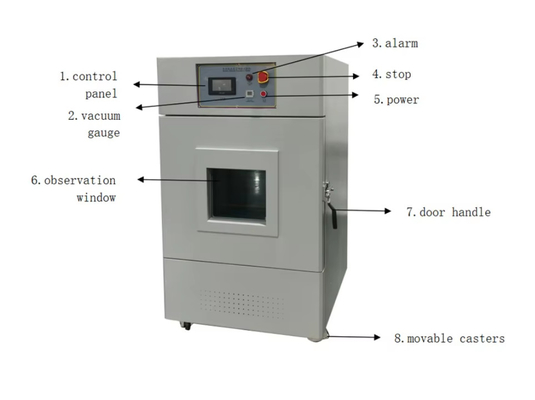

			8. Observation window

			Double-layer tempered glass, the size is not less than 300*300*5mm, the internal glass with explosion-proof film

			9. Control methods

			Square anti-projectile net is installed between double glazing

			10. Vacuum degree display

			PLC man-machine interface control

			11. Pressure display mode:

			SMC digital display vacuum meter

			12. Timing control

			For relative display, if the test vacuum degree is 11.6KPa, the standard air pressure of 101.3KPa-11.6KPa=89.7KPa is used, the

			vacuum table is set as -89.7KPa, the displayed value is the pumped value, and other parameters are calculated and set.

			13. Stress fluctuations

			Input Settings on the PLC interface, and set freely within 0-9999H59M59S

			14. Pressure storage time

			5% or less

			15. Safety protection device

			26 hours reduced by 5%

			16. Net weight

			Overcurrent protection fuse, built-in pre-overvoltage safety device, the use of pressure reducing valve to achieve the safety

			protection of overpressure, operation error or the end of the timing will automatically alarm

			17. The device uses power

			150kg

			18. Equipment power

			1 # 220VAC±10%, 50Hz

			Box bottom

			Under the bottom of the box is equipped with four universal pulleys, which can move freely.

			Contains stainless steel price block bearing

			60KG

Company Information:

Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.

Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.

At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.

This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries

Tags:

1. Inner box material	SUS304# first class stainless steel, thickness 6mm, and welded square pipe reinforcement
2. Outer box material	Cold rolled steel plate high temperature paint treatment
3. Pressure range	0 ~ 101KPa, commonly used test pressure 11.6KPa;
4. Pressure error	±2Kpa
5. Inner box size	W600D600H600mm
6. Outer box size	About W92D97H149mm
7. Storage partition material	SUS304# First class stainless steel round rod
8. Observation window	Double-layer tempered glass, the size is not less than 3003005mm, the internal glass with explosion-proof film
9. Control methods	Square anti-projectile net is installed between double glazing
10. Vacuum degree display	PLC man-machine interface control
11. Pressure display mode:	SMC digital display vacuum meter
12. Timing control	For relative display, if the test vacuum degree is 11.6KPa, the standard air pressure of 101.3KPa-11.6KPa=89.7KPa is used, the vacuum table is set as -89.7KPa, the displayed value is the pumped value, and other parameters are calculated and set.
13. Stress fluctuations	Input Settings on the PLC interface, and set freely within 0-9999H59M59S
14. Pressure storage time	5% or less
15. Safety protection device	26 hours reduced by 5%
16. Net weight	Overcurrent protection fuse, built-in pre-overvoltage safety device, the use of pressure reducing valve to achieve the safety protection of overpressure, operation error or the end of the timing will automatically alarm
17. The device uses power	150kg
18. Equipment power	1 # 220VAC±10%, 50Hz
Box bottom	Under the bottom of the box is equipped with four universal pulleys, which can move freely.
Contains stainless steel price block bearing	60KG
