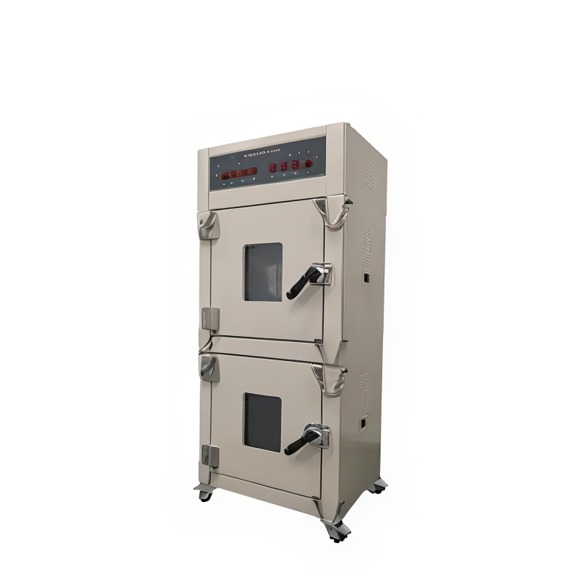

Dual-Wall Explosion Containment Chamber UL 9540A Certified Solid-State Battery Fire Suppression
| Place of Origin | China |
|---|---|
| Brand Name | Neide |
| Certification | CE |
| Model Number | ND-562 |
| Document | Neide catalogue.pdf |
| Minimum Order Quantity | 1 set |
| Price | negotiate |
| Packaging Details | Wooden Case Packing |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 200 sets per month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Neide | Customized | Welcome |
|---|---|---|---|
| Factory | Yes | Customer | More Than 500+ |
| Material | SUS304 Or Customized | After-sales Service | Yes |
| Transportation | By Sea | Reply For Probme | Within 24 Hours |
Product Description
Dual-Wall Explosion Containment Chamber UL 9540A Certified Solid-State Battery Fire Suppression
Brand
Neide
Customized
Welcome
Factory
Yes
Customer
More than 500+
Material
SUS304 or customized
After-sales service
Yes
Transportation
By Sea
Reply for problem
Within 24 hours
Product Description
The Neide UL-certified Dual-Wall Explosion Containment Chamber provides safe overcharge/over-discharge testing up to 1000V/500A. This customizable 304 stainless steel enclosure isolates battery failures while protecting personnel and equipment, compliant with IEC 62133 Annex H explosion requirements for global market access.
Key Features
- Explosion Protection: 10mm reinforced steel walls (ASME Section VIII compliant) with pressure-relief venting that directs blast upward
- Customizable Design: Chamber dimensions/configurations tailored to cell/pack size with multi-port interfaces for test leads and thermal probes
- Compliance Ready: Pre-installed mounting racks for UL 1642, IEC 62133, and UN 38.3 tests with flame arrestors on all cable ports (ATEX Category 1 certified)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Name | Dual-Wall Explosion Containment Chamber |
| Internal Dimensions | 500×500×500mm (L×W×H) ※ Customizable upon request |
| External Dimensions | Approx. 700×600×1660mm (L×W×H) |
| Control Panel | Top-mounted HMI interface |
| Door System | • Single right-to-left opening door • Stainless steel inner door with silicone compression seal • 200×250mm viewport with explosion-proof mesh |
| Internal Material | 1.0mm mirror-finished stainless steel |
| External Material | 1.0mm cold-rolled steel with powder coating |
| Insulation System | • Marble base insulation plate • PTFE-lined walls (flame-retardant/chemical-resistant) • Easy-clean surface |
| Test Ports | Two Ø50mm ports (upper/lower chambers) |
| Door Lock | Heavy-duty hinges + blast-proof latch system |
| Mobility | Four lockable casters with brakes |
| Lighting | On-demand LED illumination |
| Smoke Extraction | Dual Ø90mm rear vents -> Ducted exhaust with manual blower control |
| Pressure Relief | 150×150mm ASME-certified vent + door restraint chains (prevents detachment) |
| Electrical Safety | Ground protection + fast-acting fuses |
| Power Supply | AC 220V/50Hz, 5A, 1.0kW |
| Weight | Approx. 120kg |
| Optional Features | Fire suppression system • Video monitoring • Electronic locking |
