Compliance Ready Explosion Containment Chamber Video Monitoring Electronic Locking Battery Needle Testing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Neide |
| Certification | CE |
| Model Number | ND-562 |
| Document | Neide catalogue.pdf |
| Minimum Order Quantity | 1 set |
| Price | negotiate |
| Packaging Details | Wooden Case Packing |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 200 sets per month |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Neide | Customized | Welcome |
|---|---|---|---|
| Factory | Yes | Customer | More Than 500+ |
| Material | SUS304 Or Customized | After-sales Service | Yes |
| Transportation | By Sea | Reply For Probme | Within 24 Hours |
| Highlight | Compliance Ready Explosion Containment Chamber,Video monitoring Battery Needle Testing Machine,Electronic Locking Battery Needle Testing Machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description

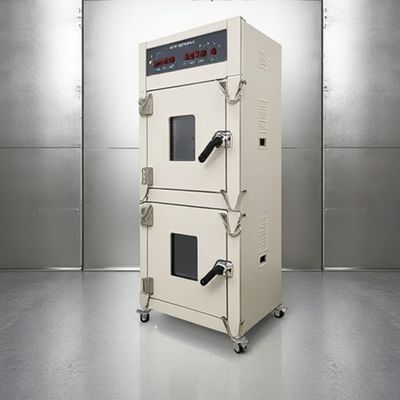

Compliance Ready Explosion Containment Chamber Video Monitoring Electronic Locking Battery Needle Testing Machine
Brand
Neide
Customized
Welcome
Factory
Yes
Customer
More than 500+
Material
SUS304 or customized
After-sales service
Yes
Transportation
By Sea
Reply for problem
Within 24 hours
Product Overview
Neide UL-certified Explosion Containment Chamber enables safe overcharge/over-discharge testing up to 1000V/500A. The customizable 304 stainless steel enclosure (optional viewport/port configurations) isolates battery failures while protecting personnel and equipment. Compliant with IEC 62133 Annex H explosion requirements for global market access.
Key Features
- Explosion Protection - 10mm reinforced steel walls (ASME Section VIII compliant); Pressure-relief venting directs blast upward
- Customizable Design - Chamber dimensions/configurations tailored to cell/pack size; Multi-port interfaces for test leads and thermal probes
- Compliance Ready - Pre-installed mounting racks for UL 1642 * IEC 62133 * UN 38.3 tests; Flame arrestors on all cable ports (ATEX Category 1 certified)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Name | Dual-Wall Explosion Containment Chamber |
| Internal Dimensions | 500×500×500mm (L×W×H) ※ Customizable upon request |
| External Dimensions | Approx. 700×600×1660mm (L×W×H) |
| Control Panel | Top-mounted HMI interface |
| Door System | • Single right-to-left opening door • Stainless steel inner door with silicone compression seal • 200×250mm viewport with explosion-proof mesh |
| Internal Material | 1.0mm mirror-finished stainless steel |
| External Material | 1.0mm cold-rolled steel with powder coating |
| Insulation System | • Marble base insulation plate • PTFE-lined walls (flame-retardant/chemical-resistant) • Easy-clean surface |
| Lighting | On-demand LED illumination |
| Smoke Extraction | Dual Ø90mm rear vents -> Ducted exhaust with manual blower control |
| Pressure Relief | 150×150mm ASME-certified vent + door restraint chains (prevents detachment) |
| Electrical Safety | Ground protection + fast-acting fuses |
| Power Supply | AC 220V/50Hz, 5A, 1.0kW |
| Weight | Approx. 120kg |
| Optional Features | Fire suppression system • Video monitoring • Electronic locking |
Note: All specifications are subject to customization based on customer requirements. Contact our engineering team for tailored solutions.
